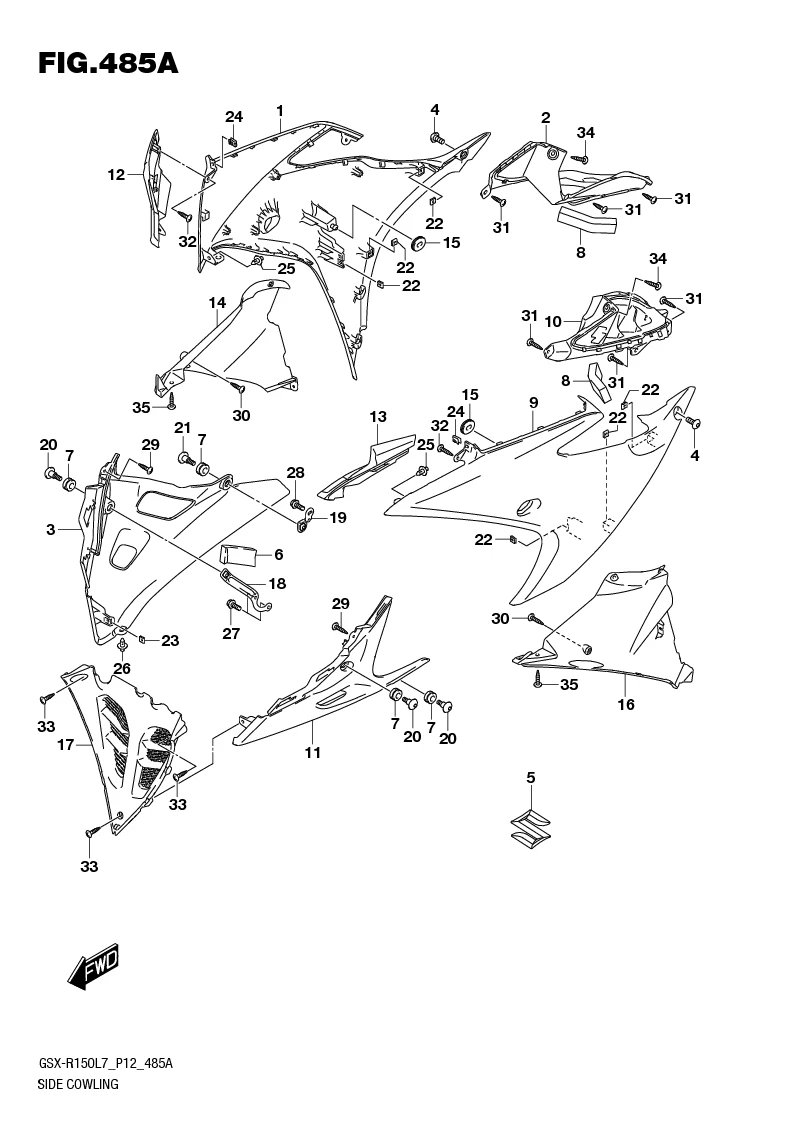

FIG.485A SIDE COWLING (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.485A SIDE COWLING (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1-2 94431-23K00-291 COWLING, SIDE UPPER RH (BLACK)FOR 291 1 Rp225.500 FOR 291
1-3 94431-23K00-YZE COWLING, SIDE UPPER RH (RED)FOR APM 1 Rp229.000 FOR APM
1-4 94431-23K00-YSF COWLING, SIDE UPPER RH (BLUE)FOR YSF 1 Rp229.000 FOR YSF
1-5 94431-23K00-YVU COWLING, SIDE UPPER RH (YVU)FOR YVU 1 Rp225.500 FOR YVU
1-1 94431-23K00-YUH COWLING, SIDE UPPER RH (WHITE)FOR YUH 1 Rp221.500 FOR YUH
2 94432-23K00-000 COWLING, SIDE MIDDLE RH 1 Rp51.000
3-4 94433-23K00-YSF COWLING,SIDE LOWER,RH (MET.TRITON BLUE) 1 Rp173.000 Minor Change 2018_YSF
3-3 94433-23K00-YVU COWLING, SIDE LOWER RH (BLACK)FOR YVU 1 Rp167.500 FOR YVU
3-2 94433-23K00-291 COWLING, SIDE LOWER RH (BLACK)FOR 291,APM,YSF 1 Rp167.500 FOR 291,APM,YSF
3-1 94433-23K00-YUH COWLING, SIDE LOWER RH (WHITE)FOR YUH 1 Rp167.500 FOR YUH
4 44513-23K00-000 SCREW, SIDE COWLING UPPER 2 Rp6.500
5 68641-23K10-000
SUB: 68641-23K00-000		 EMBLEM, "S" 2 Rp21.500
6 94434-23K00-000 CUSHION, SIDE COWLING LOWER IN 1 Rp4.500
7 94436-23K00-000 CUSHION, SIDE COWLING LOWER 4 Rp4.000
8 94437-23K00-000 CUSHION, SIDE COWLING MIDDLE 2 Rp9.500
9-1 94441-23K00-YUH COWLING, SIDE UPPER LH (WHITE)FOR YUH 1 Rp221.500 FOR YUH
9-2 94441-23K00-291 COWLING, SIDE UPPER LH (BLACK)FOR 291 1 Rp225.500 FOR 291
9-3 94441-23K00-YZE COWLING, SIDE UPPER LH (RED)FOR APM 1 Rp229.000 FOR APM
9-4 94441-23K00-YSF COWLING, SIDE UPPER LH (BLUE)FOR YSF 1 Rp229.000 FOR YSF
9-5 94441-23K00-YVU COWLING, SIDE UPPER LH (BLACK)FOR YVU 1 Rp225.500 FOR YVU
10 94442-23K00-000 COWLING, SIDE MIDDLE LH 1 Rp51.000
11-4 94443-23K00-YSF COWLING,SIDE LOWER,LH (MET.TRITON BLUE) 1 Rp173.000 Minor Change 2018_YSF
11-3 94443-23K00-YVU COWLING, SIDE LOWER LH (BLACK)FOR YVU 1 Rp167.500 FOR YVU
11-1 94443-23K00-YUH COWLING, SIDE LOWER LH (WHITE)FOR YUH 1 Rp167.500 FOR YUH
11-2 94443-23K00-291 COWLING, SIDE LOWER LH (BLACK)FOR 291,APMYSF 1 Rp167.500 FOR 291,APMYSF
12 94451-23K00-000 COVER, INTAKE RH 1 Rp51.000
13 94461-23K00-000 COVER, INTAKE LH 1 Rp51.000
14 94471-23K00-000 COWLING, INNER FR RH 1 Rp51.000
15 94478-14J00-000 CUSHION, SIDE COWLING UPPER 2 Rp4.000
16 94481-23K00-000 COWLING, INNER FR LH 1 Rp51.000
17 94494-23K00-000 COWLING, LOWER CENTER 1 Rp32.000
18 94560-23K00-000 BRACKET, SIDE COWL LWR FR 1 Rp8.500
19 94570-23K00-000 BRACKET, SIDE COWL LWR RR 1 Rp7.000
20 09139-06190-000
SUB: 09139B06190N000		 SCREW (6X20) 3 Rp7.000
21 09139-06190-000
SUB: 09139B06190N000		 SCREW (6X20) 1 Rp7.000
22 09148-04019-000
SUB: 09148B04019N000		 NUT 6 Rp6.500
23 09148-04019-000
SUB: 09148B04019N000		 NUT 1 Rp6.500
24 09148-05058-000
SUB: 09148B05058N000		 NUT 2 Rp15.000
25 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 2 Rp3.500
26 09409-06314-5PK
SUB: 09409-06314-000		 CLIP 1 Rp3.500
27 01550-0612A-000 BOLT 2 Rp3.500
28 01550B0612BN000 BOLT 1 Rp2.500
29 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
30 03541-0412B-000
SUB: 03541B0412BN000		 SCREW 2 Rp4.000
31 03541-0416A-000 SCREW 6 Rp3.500
32 03541-0416A-000 SCREW 2 Rp3.500
33 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 3 Rp4.500
34 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
35 03541-0516A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
