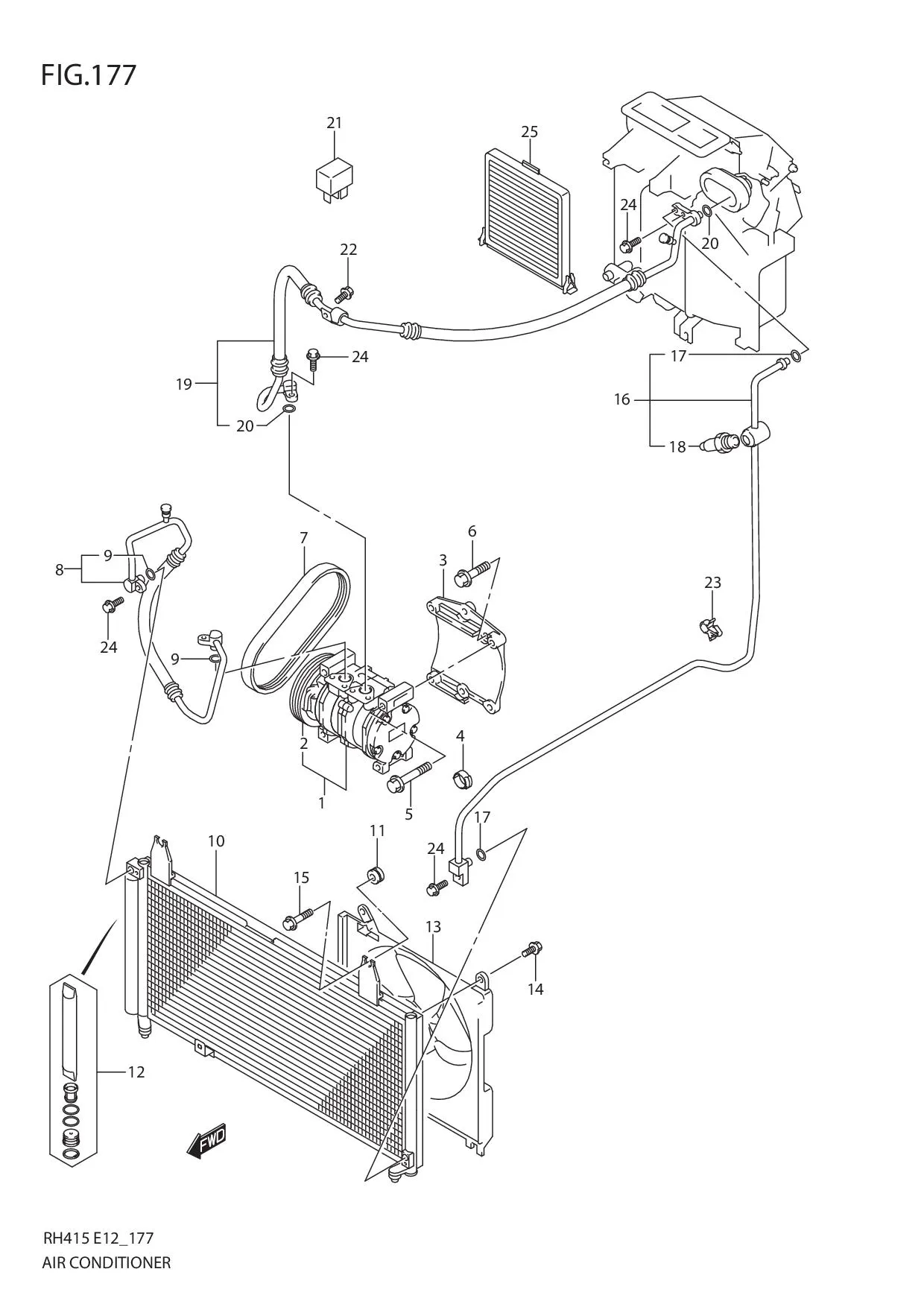

FIG.177 AIR CONDITIONER

FIG.177 AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 95200B65DA0N000
COMPRESSOR ASSY 1 -
2 DISCONTINUE
SUB: 95210B65DA0N000
•CLUTCH, MAGNET 1 -
3 DISCONTINUE
SUB: 95111-54G01-000
BRACKET, COMPRESSOR 1 -
4 36990-25G00-000
SUB: 09407-14403L000
CLAMP 1 Rp13.000
5 01550-0875B-000
SUB: 01550-08753-000
BOLT 3 Rp41.000
6 01550-0830B-000
SUB: 01550-08303L000
BOLT 4 Rp3.000
7 17521-85300-000
SUB: 17521B85300N000
BELT (4PK1010) 1 Rp96.500
8 95720-54G11-000 HOSE, DISCHARGE 1 Rp2.002.000
9 95895-50G00-000
SUB: 95895B50G00N000
•O RING (D:2.4,ID:10.8) 2 Rp12.500
10-1 DISCONTINUE
SUB: 95310B54G11N000
CONDENSER ASSY 1 - 4DR
10-2 DISCONTINUE
SUB: 95310B54G01N000
CONDENSER ASSY 1 - 5DR
11-1 DISCONTINUE
SUB: 95851-60B10-000
•BUSH, CONDENSER 2 - 4DR
11-2 DISCONTINUE
SUB: 95851-60B00-000
•BUSH, CONDENSER 1 - 5DR
12 95339-58J10-000
SUB: 95339-65D00-000
•DRYER SET 1 Rp690.500
13 95560-54G02-000
SUB: 95560-54G01-000
FAN ASSY, CONDENSER 1 Rp4.566.500
14 02162-0616A-000
SUB: 09122-86003-000
SCREW (6X16) 4 Rp3.000
15 09116-06146-000 BOLT (6X25) 2 Rp18.000
16 95731-54G02-000
SUB: 95731-54G01-000
PIPE, LIQUID 1 Rp2.163.500
17 95891-50G00-000
SUB: 95891B50G00N000
•O RING (D:1.8,ID:6.7) 2 Rp12.500
18 95526-78F00-000 •SWITCH, TRIPLE PRESSURE 1 Rp613.000
19 DISCONTINUE
SUB: 95710-54G02-000
HOSE, SUCTION 1 -
20 95896-50G00-000
SUB: 95896B50G00N000
•O RING (D:2.4,ID:13.4) 2 Rp19.000
21 38860-76F01-000
SUB: 38860B76F01N000
RELAY 2 Rp47.000
22 09116-06146-000 BOLT (6X25) 1 Rp18.000
23 09403-08406-000 CLAMP 1 Rp22.500
24 01550-0620B-000
SUB: 01550-06203L000
BOLT 5 Rp3.500
25 95861-54G00-000 HOLDER, FILTER 1 Rp567.000 OPT
25 95861-54G00-000 HOLDER, FILTER 1 Rp567.000 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
