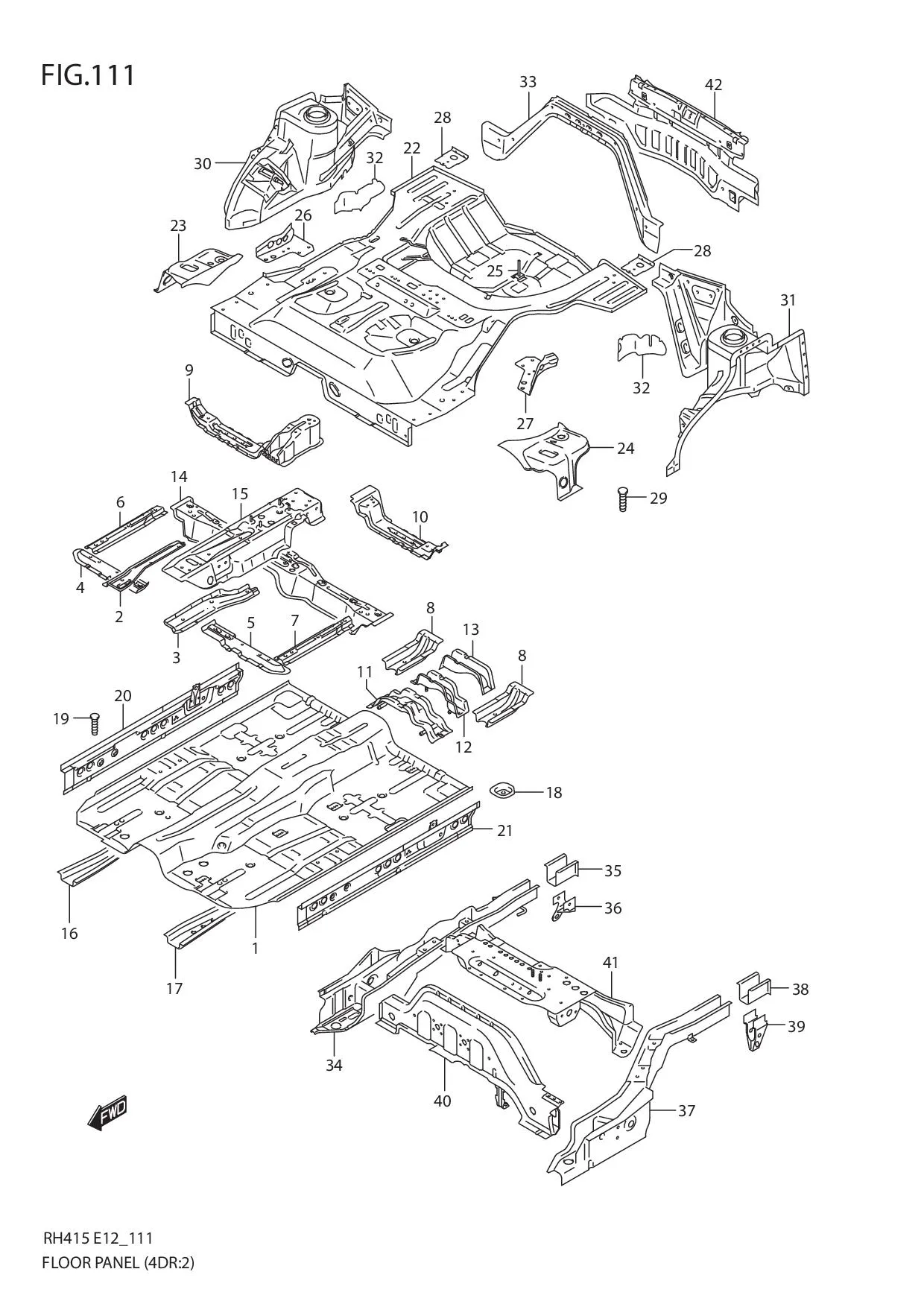

FIG.111 FLOOR PANEL (TYPE 2:4DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 61111-54G01-000	PAN, MAIN FLOOR	1	-
2	61231-54G10-000	REINF, MAIN FLOOR TUNNEL RH	1	-
3	61241-54G10-000	REINF, MAIN FLOOR TUNNEL LH	1	-
4	61251-54G10-000	MEMBER, MAIN FLOOR FRONT RH	1	-
5	61261-54G10-000	MEMBER, MAIN FLOOR FRONT LH	1	-
6	61252-54G00-000	MEMBER, MAIN FLOOR OUTSIDE RH	1	-
7	61262-54G00-000	MEMBER, MAIN FLOOR OUTSIDE LH	1	-
8	61271-54G10-000	MEMBER, MAIN FLOOR REAR	2	-
9	61280-54G10-000	MEMBER, FR SEAT MTG RR RH	1	-
10	61290-54G00-000	MEMBER, FR SEAT MTG RR LH	1	-
11	61160-54G10-000	BRACKET, MUFFLER CENTER	1	-
12	61181-54G30-000	BRACKET, CTR DIFF FRONT	1	-
13	DISCONTINUE SUB: 61191-54G00-000	BRACKET, VIS REAR	1	-
14	61210-54G10-000	CROSSMEMBER, FLOOR PAN UPPER	1	-
15	61221-54G10-000	REINF, FLOOR PAN UPPER	1	-
16	61351-54G00-000	MEMBER, FLOOR SIDE RH	1	-
17	61356-54G00-000	MEMBER, FLOOR SIDE LH	1	-
18	61353-65G00-000	BRACKET, BODY MOUNTING	2	-
19	09119-05018-000	BOLT (5X14.3)	8	Rp13.000
20	61310-54G10-000	PANEL, SIDE SILL INNER RH	1	-
21	61320-54G03-000	PANEL, SIDE SILL INNER LH	1	-
22	DISCONTINUE SUB: 61511-54G20-000	PAN, REAR FLOOR	1	-
23	61512-54G00-000	BRACKET, SEAT CUSH SUPPORT RH	1	-
24	61513-54G00-000	BRACKET, SEAT CUSH SUPPORT LH	1	-
25	61518-80J00-000	BRACKET, SPARE TIRE	1	Rp84.000
26	DISCONTINUE SUB: 61591-54G00-000	REINF, RR FLOOR UPPER RH	1	-
27	DISCONTINUE SUB: 61592-54G00-000	REINF, RR FLOOR UPPER LH	1	-
28	DISCONTINUE SUB: 61593-55G00-000	REINF, RR FLOOR UPPER REAR	2	-
29	09119-05018-000	BOLT (5X14.3)	1	Rp13.000
30	DISCONTINUE SUB: 61610-54820-000	PANEL SET, RR WHL HOUSE INR RH	1	-
31	DISCONTINUE SUB: 61660-54820-000	PANEL SET, RR WHL HOUSE INR LH	1	-
32	99611-60A01-000	SHEET (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
33	61680-55G00-000	MEMBER, PARTITION FRONT	1	-
34	DISCONTINUE SUB: 62110-54G03-000	MEMBER, RR FLOOR SIDE RH	1	-
35	62112-54G01-000	•MEMBER, RR FLOOR SIDE RR RH	1	-
36	62150-54G01-000	•HOOK, TOWING REAR RH	1	-
37	DISCONTINUE SUB: 62310-54G01-000	MEMBER, RR FLOOR SIDE LH	1	-
38	62312-54G00-000	•MEMBER, RR FLOOR SIDE RR LH	1	-
39	62351-54G00-000	•HOOK, TOWING REAR LH	1	-
40	DISCONTINUE SUB: 62610-54G10-000	CROSSMEMBER, RR FLOOR FRONT	1	-
41	DISCONTINUE SUB: 62710-54G02-000	CROSSMEMBER, RR FLOOR CENTER	1	-
42	DISCONTINUE SUB: 65500-55G03-000	PANEL, BACK	1	-
