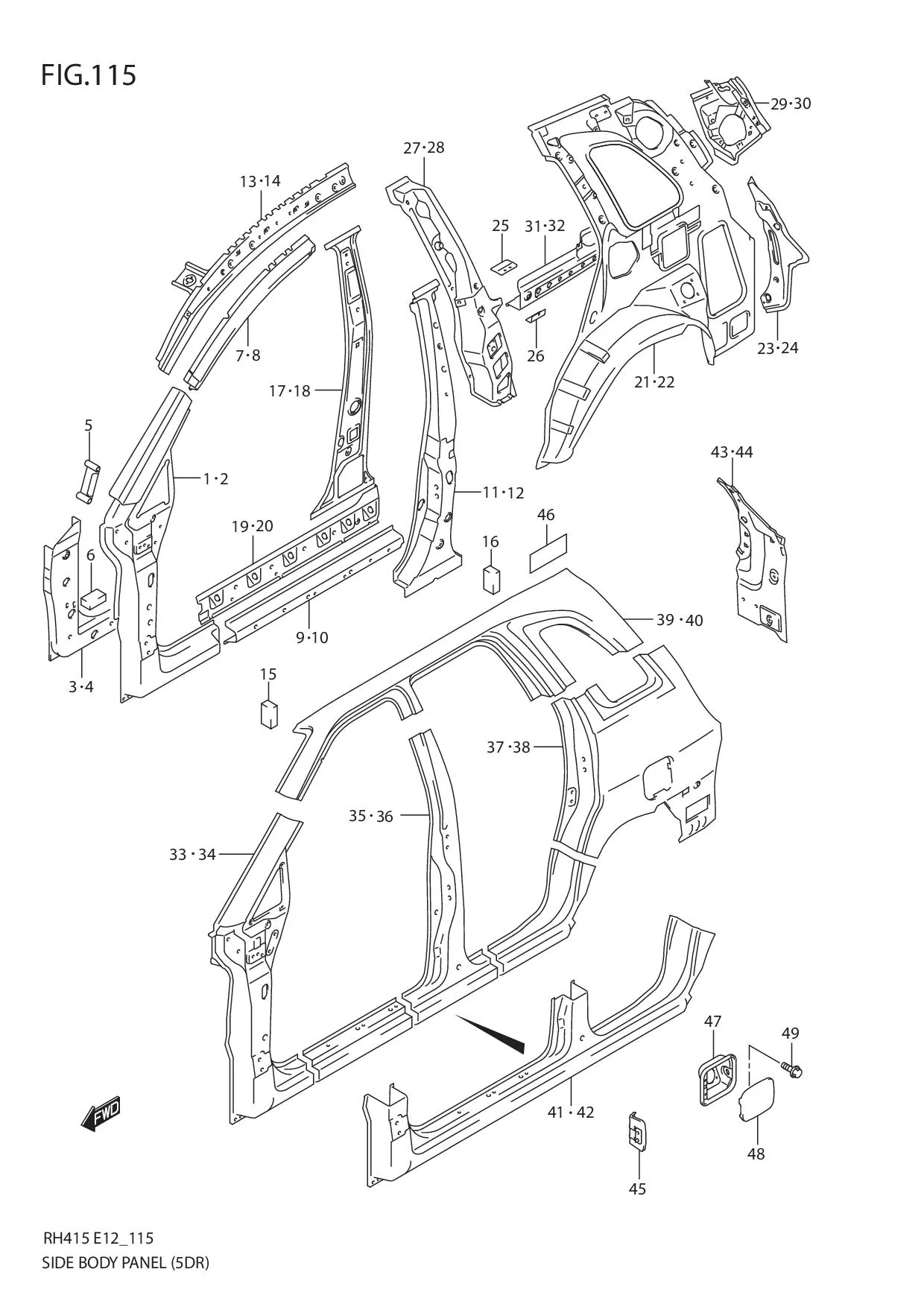

FIG.115 SIDE BODY PANEL (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 63141-54G00-000	REINF, FRONT DOOR HINGE RH	1	-
2	DISCONTINUE SUB: 63541-54G00-000	REINF, FRONT DOOR HINGE LH	1	-
3	DISCONTINUE SUB: 63142-54G00-000	BRACE, FRONT DOOR HINGE RH	1	-
4	63542-54G00-000	BRACE, FRONT DOOR HINGE LH	1	-
5	63146-54G00-000	SPACER, STRG SUPPORT MEMBER	2	Rp85.500
6	DISCONTINUE SUB: 75242-82300-000	PAD	2	-
7	DISCONTINUE SUB: 63151-54G00-000	REINF, FRONT PILLAR UPPER RH	1	-
8	63551-54G00-000	REINF, FRONT PILLAR UPPER LH	1	-
9	63231-54G00-000	STRENGTH, SIDE SILL OUTER RH	1	-
10	63631-54G00-000	STRENGTH, SIDE SILL OUTER LH	1	-
11	63240-54G10-000	REINF, REAR DOOR HINGE RH	1	-
12	63640-54G10-000	REINF, REAR DOOR HINGE LH	1	-
13	63120-54G10-000	RAIL, ROOF SIDE INNER RH	1	-
14	63520-54G10-000	RAIL, ROOF SIDE INNER LH	1	-
15	DISCONTINUE SUB: 75242-82300-000	PAD	6	-
16	DISCONTINUE SUB: 75242-82300-000	PAD	2	-
17	63211-54G00-000	PANEL, CENTER PILLAR INNER RH	1	-
18	63611-54G00-000	PANEL, CENTER PILLAR INNER LH	1	-
19	63221-54G00-000	STRENGTH, SIDE SILL RH	1	-
20	63621-54G00-000	STRENGTH, SIDE SILL LH	1	-
21	63311-54G03-000	PANEL, QUARTER INNER RH	1	-
22	DISCONTINUE SUB: 63711-54G00-000	PANEL, QUARTER INNER LH	1	-
23	DISCONTINUE SUB: 63312-54G00-000	PANEL, REAR LAMP HOSE INNER RH	1	-
24	DISCONTINUE SUB: 63712-54G00-000	PANEL, REAR LAMP HOSE INNER LH	1	-
25	63313-63G00-000	BRACE, REAR WHEEL HOUSE RH	1	-
26	63713-63G00-000	BRACE, REAR WHEEL HOUSE LH	1	-
27	63320-54G00-000	REINF, QUARTER INNER RH	1	-
28	63720-54G00-000	REINF, QUARTER INNER LH	1	-
29	63324-54G10-000	EXTENSION, RR PLR INR UPPER RH	1	-
30	63724-54G00-000	EXTENSION, RR PLR INR UPPER LH	1	-
31	63341-54G00-000	MEMBER, QTR WINDOW LOWER RH	1	-
32	63741-54G00-000	MEMBER, QTR WINDOW LOWER LH	1	-
33	DISCONTINUE SUB: 64111-54GV0-P01	PANEL, A-PILLAR RH	1	-
34	DISCONTINUE SUB: 64511-54GV0-P01	PANEL, A-PILLAR LH	1	-
35	DISCONTINUE SUB: 64111-54GV0-P02	PANEL, B-PILLAR RH	1	-
36	DISCONTINUE SUB: 64511-54GV0-P02	PANEL, B-PILLAR LH	1	-
37	DISCONTINUE SUB: 64111-54GV0-P03	PANEL, SIDE OUTER LOWER RH	1	-
38	DISCONTINUE SUB: 64511-54GV0-P03	PANEL, SIDE OUTER LOWER LH	1	-
39	DISCONTINUE SUB: 64111-54G02-P06	PANEL, SIDE OUTER UPPER RH	1	-
40	DISCONTINUE SUB: 64511-54G02-P06	PANEL, SIDE OUTER UPPER LH	1	-
41	DISCONTINUE SUB: 64111-54GV0-P07	PANEL, SIDE SILL RH	1	-
42	DISCONTINUE SUB: 64511-54GV0-P07	PANEL, SIDE SILL LH	1	-
43	DISCONTINUE SUB: 64140-54G00-000	PANEL, RR LAMP HOUSE OUTER RH	1	-
44	DISCONTINUE SUB: 64540-54G00-000	PANEL, RR LAMP HOUSE OUTER LH	1	-
45	DISCONTINUE SUB: 64440-60G01-000	REINF, REAR DOOR STRIKER	2	-
46	83971-54F00-000	SHEET RH (185X75X1.8)	1	Rp58.000
47-1	DISCONTINUE SUB: 64571-54G01-000	BOX, FUEL FILLER	1	-	!64571-54G02 USED WITH 02162-06123 (2PCS)
47-2	DISCONTINUE SUB: 64571-54G02-000	BOX, FUEL FILLER	1	-	2003-5%
48	64850-54G00-000	DOOR, FUEL FILLER	1	Rp415.000
49-1	02162-0512A-000 SUB: 02162-05123-000	BOLT	2	Rp11.500
49-2	02162-0612B-000 SUB: 02162-06123-000	BOLT	2	Rp16.000	2003-5%
