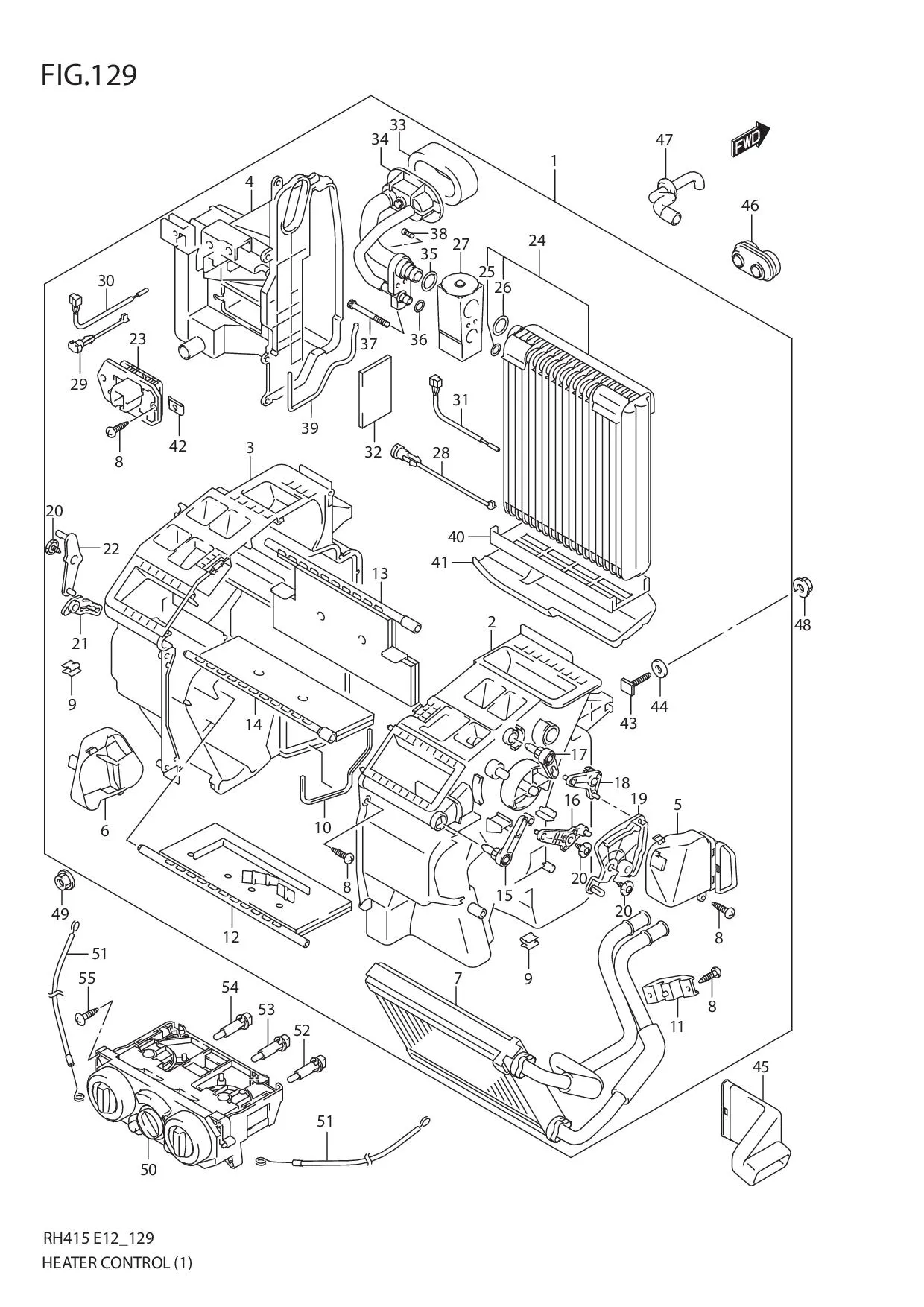

FIG.129 HEATER CONTROL (TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74100-54GA6-000	HEATER UNIT	1	-
2	DISCONTINUE SUB: 74111-54G01-000	•CASE, HEATER RH	1	-
3	DISCONTINUE SUB: 74112-54G01-000	•CASE, HEATER LH	1	-
4	DISCONTINUE SUB: 74113-54G00-000	•DUCT, AIR JOINT	1	-
5	DISCONTINUE SUB: 74114-54G12-000	•DUCT, AIR RH	1	-
6-1	74115-54G11-000	•DUCT, AIR LH	1	-
6-2	74115-54G11-000	•DUCT, AIR LH	1	-	2002-11%
6-3	74115-54G20-000	•DUCT, AIR LH	1	-	2003-6%
7	DISCONTINUE SUB: 74120B54G00N000	•CORE, HEATER	1	-
8	03112-0416A-000 SUB: 03112-04163-000	•SCREW	21	Rp23.500
9	DISCONTINUE SUB: 74151-50F00-000	•CLAMP	2	-
10	74132-54G00-000	•PACKING, CASE	1	-
11	74131-54G00-000	•BRACKET	1	-
12	74171-54G00-000	•DOOR ASSY, AIR MIXTURE	1	-
13	74172-54G00-000	•DOOR ASSY, DEFROSTER	1	-
14	74173-54G00-000	•DOOR ASSY, FACE	1	-
15	74181-54G00-000	•LEVER, FACE	1	-
16	74183-54G00-000	•LEVER, FACE SUB	1	Rp3.500
17	74182-54G00-000	•LEVER, DEFROSTER	1	-
18	74184-54G00-000	•LEVER, DEFROSTER SUB	1	-
19-1	DISCONTINUE SUB: 74185-54G10-000	•PLATE, MODE MAIN	1	-
19-2	DISCONTINUE SUB: 74185-54G12-000	•PLATE, MODE MAIN	1	-	2003-1%
20	74183-82005-000 SUB: 74183B82005N000	•SCREW, LINK	3	Rp19.000
21	74191-54G00-000	•LEVER, AIR MIXTURE	1	-
22	74192-54G00-000	•LEVER, AIR MIXTURE MAIN	1	-
23	DISCONTINUE SUB: 74240B54G01N000	•RESISTOR, BLOWER	1	-
24	DISCONTINUE SUB: 95410B54G00N000	•EVAPORATOR ASSY	1	-
25	95895-50G00-000 SUB: 95895B50G00N000	••O RING (D:2.4,ID:10.8)	1	Rp12.500
26	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	1	Rp19.000
27	DISCONTINUE SUB: 95431-65D10L000	•VALVE, EXPANSION	1	-
28	95452-54G00-000	•CLAMP, THERMISTOR	1	-
29	95452-54G10-000	•CLAMP, THERMISTOR	1	-
30	95541-54G10-000 SUB: 95541B54G10N000	•THERMISTOR	1	Rp192.500
31	95541-54G01-000 SUB: 95541B54G01N000	•THERMISTOR	1	Rp238.000
32	74137-54G00-000	•PACKING	2	-
33	74136-54G00-000	•PACKING, AIR CONDITIONER PIPE	1	-
34	DISCONTINUE SUB: 74135-54G00-000	•TUBE, AIR CONDITIONER	1	-
35	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	1	Rp19.000
36	95891-50G00-000 SUB: 95891B50G00N000	••O RING (D:1.8,ID:6.7)	1	Rp12.500
37	74134-54G00-000	•BOLT, EXPANSION VALVE	2	-
38	74138-54G00-000	•BOLT	1	-
39	74133-54G00-000	•PACKING, EVAPORATOR	1	-
40	95461-54G00-000	•COVER, EVAPORATOR	1	-
41	95462-54G00-000	•PACKING, EVAPORATOR LOWER	1	-
42	09148-04024-000	•NUT	1	Rp14.000
43	74115-65D00-000 SUB: 74115B65D00N000	•BOLT	2	Rp106.500
44	DISCONTINUE SUB: 74119-78F00-000	•WASHER, RUBBER	2	-
45	74114-54G20-000	DUCT, AIR RH	1	-	2002-8%2003-1
46	DISCONTINUE SUB: 74812-77E00-000	GROMMET, HEATER	1	-
47	95481-54G00-000	HOSE, DRAIN	1	-
48	08316-1006A-000 SUB: 08316-10063L000	NUT	2	Rp2.000
49	09159-06081-000	NUT	1	Rp14.500
50	DISCONTINUE SUB: 74400-54G00-KU7	LEVER ASSY, HEATER CONTROL	1	-
51	DISCONTINUE SUB: 74451-54G00-000	•CABLE, MODE CONTROL (L:335)	2	-
52	74531-54G00-000	•BULB, MODE	1	Rp80.000
53	74531-54G10-000	•BULB, FAN SW	1	Rp98.000
54	74531-54G20-000	•BULB, TEMP	1	Rp87.500
55	03541-0516A-000 SUB: 03541B05163N000	SCREW	4	Rp3.500
