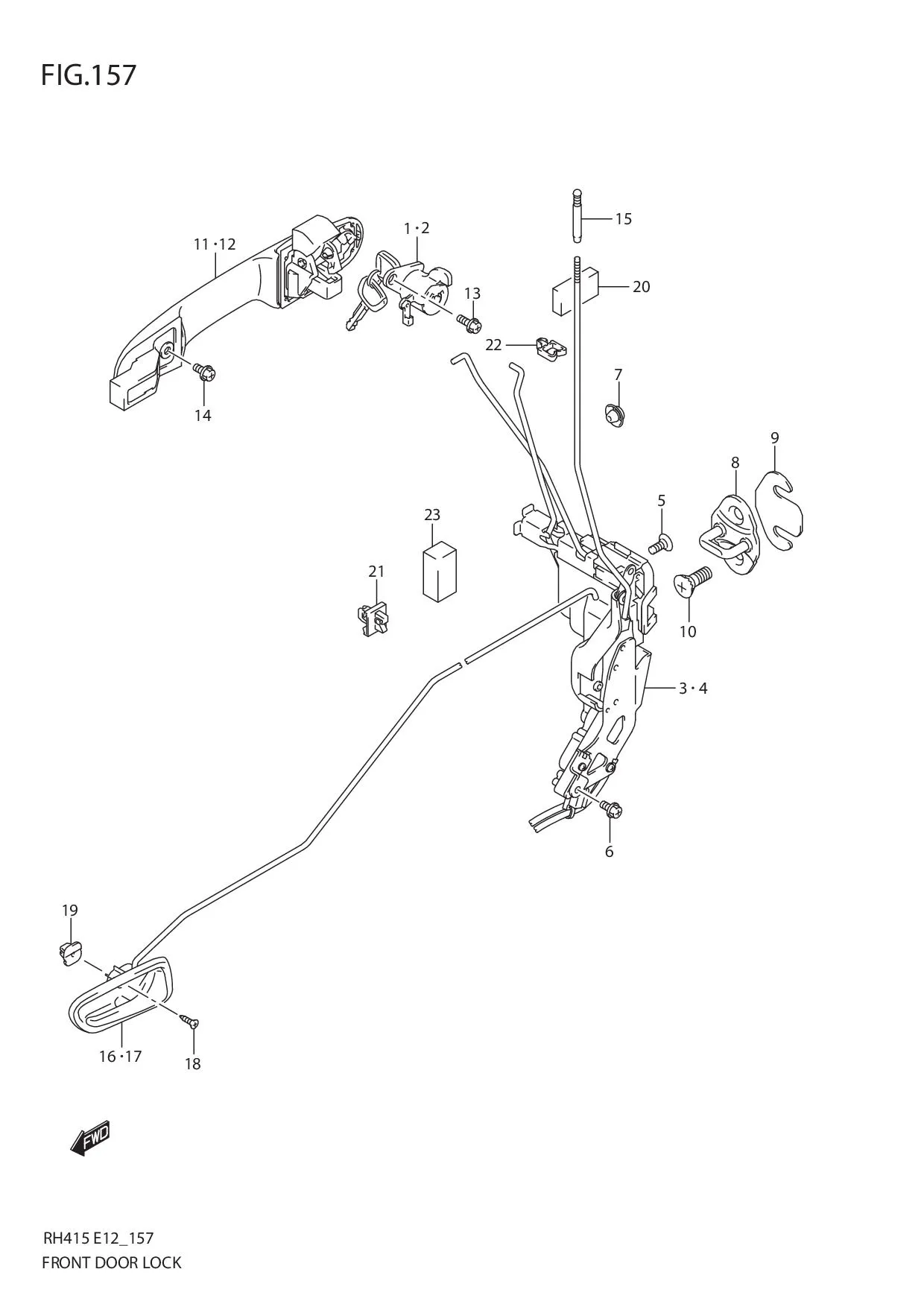

FIG.157 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 82270-54830-000	CYLINDER, FRONT DOOR LOCK RH	1	-	TYPE 2
1-1	DISCONTINUE SUB: 82270-54810-000	CYLINDER, FRONT DOOR LOCK RH	1	-	TYPE 1
2-1	82280-54810-000	CYLINDER, FRONT DOOR LOCK LH	1	-	TYPE 1
2-2	DISCONTINUE SUB: 82280-54820-000	CYLINDER, FRONT DOOR LOCK LH	1	-	TYPE 2
3-1	82201-54GA0-000 SUB: 82201-54G00-000	LATCH ASSY, FRONT DOOR RH	1	Rp3.428.500
3-2	82201-54GA0-000	LATCH ASSY, FRONT DOOR RH	1	Rp3.428.500	2003-10%
4-1	DISCONTINUE SUB: 82202-54G00-000	LATCH ASSY, FRONT DOOR LH	1	-
4-2	DISCONTINUE SUB: 82202-54GA0-000	LATCH ASSY, FRONT DOOR LH	1	-	2003-10%
5	09137-06028-000	SCREW (6X19)	6	Rp18.500
6	02162-0612B-000 SUB: 02162-06123-000	SCREW, LATCH ACTUATOR	2	Rp16.000
7	09250-07006-000	CLIP, PROTECTOR HOLE	2	Rp14.500
8	DISCONTINUE SUB: 82610-72B11-000	STRIKER, DOOR LATCH	2	-
9	78199M78000-000	SPACER	0	Rp8.000
10	09137-08014-000 SUB: 09137-08006-000	SCREW (8X18)	4	Rp23.000
11-1	82810-54G10-ZA4	HANDLE, DOOR OUT RH (BEIGE)	1	-
11-9	82810-54G10-26U	HANDLE, DOOR OUT RH (WHITE)	1	-
11-8	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT RH (LOCAL COLOR)	1	-
11-7	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT RH (RED)	1	-
11-6	82810-54G10-Z2U	HANDLE, DOOR OUT RH (BLUE)	1	-
11-5	82810-54G10-Z2T	HANDLE, DOOR OUT RH (GREEN)	1	-
11-4	82810-54G10-Z2S	HANDLE, DOOR OUT RH (SILVER)	1	-
11-3	82810-54G10-ZJ3	HANDLE, DOOR OUT RH (BLACK)	1	Rp923.000
11-2	82810-54G10-ZE9	HANDLE, DOOR OUT RH (BLUE)	1	-
12-1	82820-54G10-ZA4	HANDLE, DOOR OUT LH (BEIGE)	1	-
12-9	82820-54G10-26U	HANDLE, DOOR OUT LH (WHITE)	1	-
12-8	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT LH (LOCAL COLOR)	1	-
12-7	82820-54G10-Z5K	HANDLE, DOOR OUT LH (RED)	1	-
12-6	82820-54G10-Z2U	HANDLE, DOOR OUT LH (BLUE)	1	-
12-4	82820-54G10-Z2S	HANDLE, DOOR OUT LH (SILVER)	1	-
12-3	82820-54G10-ZJ3	HANDLE, DOOR OUT LH (BLACK)	1	-
12-2	82820-54G10-ZE9	HANDLE, DOOR OUT LH (BLUE)	1	-
12-5	82820-54G10-Z2T	HANDLE, DOOR OUT LH (GREEN)	1	-
13	02162-0612B-000 SUB: 02162-06123-000	SCREW, HANDLE UPPER	2	Rp16.000
14	02162-0612B-000 SUB: 02162-06123-000	SCREW, HANDLE	4	Rp16.000
15-1	82982M65D00-P4Z	KNOB, DOOR INSIDE LOCK (GRAY)	2	Rp7.500	TYPE 1
15-2	82982-70H00-0PG	KNOB, DOOR INSIDE LOCK (CHROME)	2	Rp71.000	TYPE 2
16-2	83101-54G10-JA8	HANDLE ASSY, INSIDE RH (SILVER/GRAY)	1	Rp562.500	TYPE 2
16-1	DISCONTINUE SUB: 83101-54G00-P4Z	HANDLE ASSY, INSIDE RH (GRAY)	1	-	TYPE 1
17-1	DISCONTINUE SUB: 83102-54G00-P4Z	HANDLE ASSY, INSIDE LH (GRAY)	1	-	TYPE 1
17-2	DISCONTINUE SUB: 83102-54G10-JA8	HANDLE ASSY, INSIDE LH (SILVER/GRAY)	1	-	TYPE 2
18	03521M0516B-000 SUB: 03521-05163-000	SCREW	2	Rp5.000
19	09148-05031-000	NUT	2	Rp18.000
20	77591M75000-000	PAD, INSIDE HANDLE	2	Rp7.000
21	83271-84G00-000	CLIP	2	Rp29.000
22	DISCONTINUE SUB: 09403-07324-000	CLIP	2	-
23	83211-54G00-000	PAD, INSIDE HANDLE NO.2	2	-
