AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.107 FRONT HOOD PANEL FIG.108 FRONT FENDER FIG.109 FRONT BODY PANEL FIG.110 FLOOR PANEL (TYPE 1:4DR)FIG.111 FLOOR PANEL (TYPE 2:4DR)FIG.112 FLOOR PANEL (TYPE 1:5DR)FIG.113 FLOOR PANEL (TYPE 2:5DR)FIG.114 SIDE BODY PANEL (4DR)FIG.115 SIDE BODY PANEL (5DR)FIG.116 ROOF PANEL (4DR)FIG.117 ROOF PANEL (5DR)FIG.118 FRONT BUMPER (TYPE 1)FIG.119 FRONT BUMPER (TYPE 2:4DR)FIG.120 FRONT BUMPER (TYPE 2:5DR)FIG.121 REAR BUMPER (TYPE 1:4DR)FIG.122 REAR BUMPER (TYPE 2:4DR)FIG.123 REAR BUMPER (TYPE 1:5DR)FIG.124 REAR BUMPER (TYPE 2:5DR)FIG.125 INSTRUMENT PANEL (TYPE 1)FIG.126 INSTRUMENT PANEL (TYPE 2)FIG.127 VENTILATOR (TYPE 1)FIG.128 VENTILATOR (TYPE 2)FIG.129 HEATER CONTROL (TYPE 1)FIG.130 HEATER CONTROL (TYPE 2)FIG.131 HEATER BLOWER (TYPE 1)FIG.132 HEATER BLOWER (TYPE 2)FIG.133 CONSOLE BOX (TYPE 1)FIG.134 CONSOLE BOX (TYPE 2)FIG.135 FLOOR CARPET (TYPE 1:4DR)FIG.136 FLOOR CARPET (TYPE 2:4DR)FIG.137 FLOOR CARPET (TYPE 1:5DR)FIG.138 FLOOR CARPET (TYPE 2:5DR)FIG.139 INTERRIOR TRIM (4DR)FIG.140 INTERRIOR TRIM (5DR)FIG.141 COVER CAP (4DR)FIG.142 COVER CAP (5DR)FIG.143 ROOF LINING (4DR)FIG.144 ROOF LINING (5DR)FIG.145 FUEL LID OPENER (4DR)FIG.146 FUEL LID OPENER (5DR)FIG.147 EMBLEM (4DR)FIG.148 EMBLEM (5DR)FIG.149 MOLDING (4DR)FIG.150 MOLDING (5DR)FIG.151 FRONT/BACK WINDOW (4DR)FIG.152 WINDSHIELD GLASS (5DR)FIG.153 SPLASH GUARD (4DR:TYPE 2)FIG.154 SPLASH GUARD (5DR:TYPE 2)FIG.155 FRONT DOOR PANEL FIG.156 FRONT DOOR REGULATOR FIG.157 FRONT DOOR LOCK FIG.158 4DR REAR DOOR PANEL FIG.159 4DR REAR DOOR REGULATOR FIG.160 DR REAR DOOR LOCK FIG.161 5DR REAR DOOR PANEL FIG.162 5DR REAR DOOR REGULATOR FIG.163 DR REAR DOOR LOCK FIG.164 TRUNK LID (4DR)FIG.165 TRUNK LID LOCK (4DR)FIG.166 BACK DOOR PANEL (5DR)FIG.167 BACK DOOR LOCK (5DR)FIG.168 MIRROR SURVISOR (TYPE 1)FIG.169 MIRROR SURVISOR (TYPE 2)FIG.170 TOOL FIG.171 FUEL TANK FIG.172 FRONT SEAT FIG.173 REAR SEAT (4DR)FIG.174 REAR SEAT (5DR)FIG.175 SEAT BELT FIG.176 PARCEL SHELF (5DR)FIG.177 AIR CONDITIONER

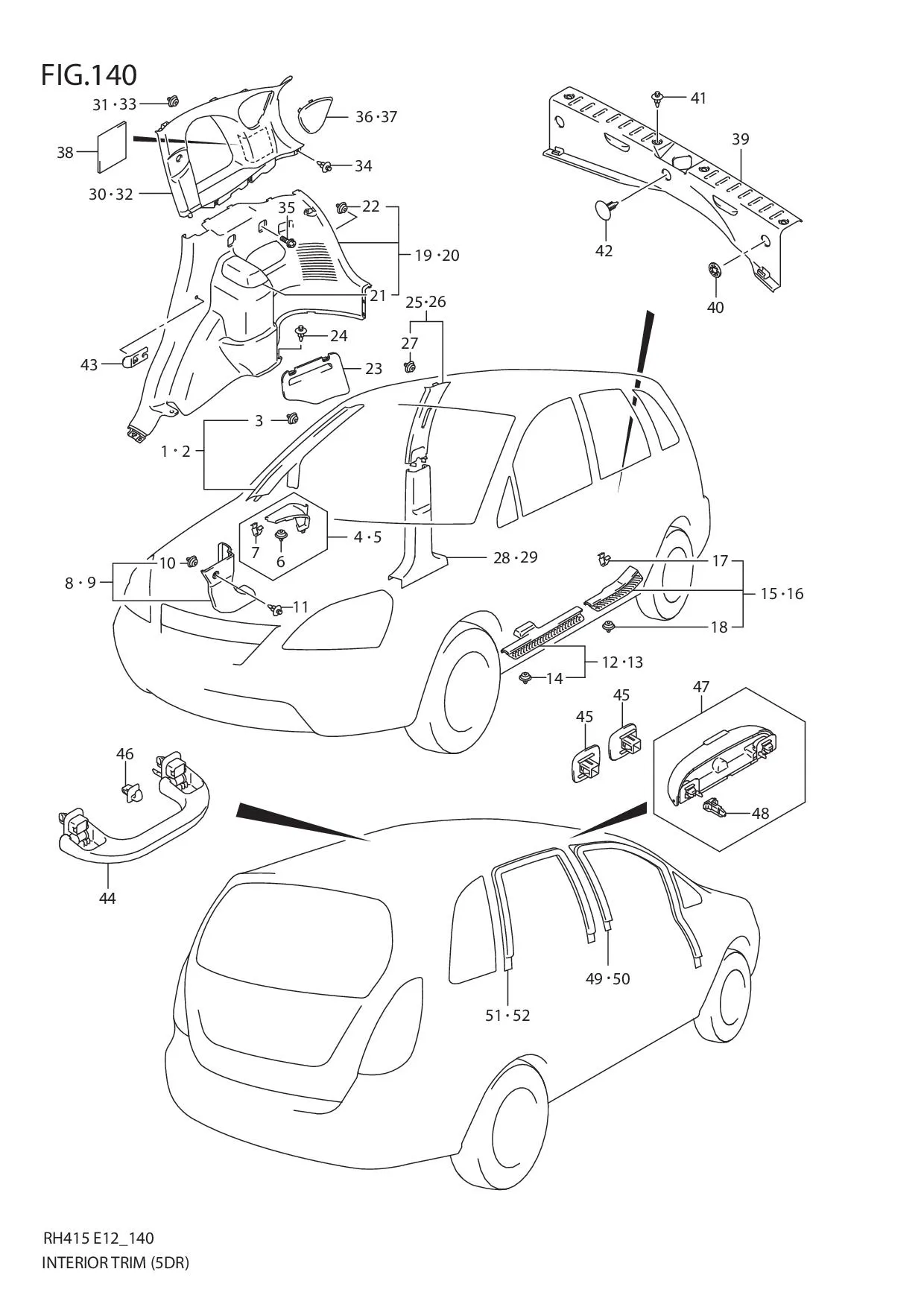

FIG.140 INTERRIOR TRIM (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 76111-54GA0-P7Z	TRIM, FRONT PILLAR RH (GRAY)	1	-	TYPE 2
1-1	DISCONTINUE SUB: 76111-54G02-P7Z	TRIM, FRONT PILLAR RH (GRAY)	1	-	TYPE 1
2-2	DISCONTINUE SUB: 76121-54GA0-P7Z	TRIM, FRONT PILLAR LH (GRAY)	1	-	TYPE 2
2-1	DISCONTINUE SUB: 76121-54G02-P7Z	TRIM, FRONT PILLAR LH (GRAY)	1	-	TYPE 1
3	DISCONTINUE SUB: 09409-10311-000	•CLIP	4	-
4-1	DISCONTINUE SUB: 76271-54G00-P4Z	GARNISH, FRONT PILLAR LOWER RH (GRAY)	1	-	TYPE 1
4-2	DISCONTINUE SUB: 76271-54GA0-P4Z	GARNISH, FRONT PILLAR LOWER RH (GRAY)	1	-	TYPE 2
5-1	DISCONTINUE SUB: 76281-54G00-P4Z	GARNISH, FRONT PILLAR LOWER LH (GRAY)	1	-	TYPE 1
5-2	DISCONTINUE SUB: 76281-54GA0-P4Z	GARNISH, FRONT PILLAR LOWER LH (GRAY)	1	-	TYPE 2
6	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	2	Rp9.500
7	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
8	DISCONTINUE SUB: 76131-54G00-P4Z	TRIM, DASH SIDE RH (GRAY)	1	-
9	DISCONTINUE SUB: 76141-54G00-P4Z	TRIM, DASH SIDE LH (GRAY)	1	-
10	DISCONTINUE SUB: 76216-76F20-000	•CLIP	2	-
11	DISCONTINUE SUB: 09409-07321-P4Z	CLIP (GRAY)	2	-
12	76151-54G00-P4Z	SCUFF, SIDE SILL FR RH (GRAY)	1	Rp286.500
13	DISCONTINUE SUB: 76161-54G00-P4Z	SCUFF, SIDE SILL FR LH (GRAY)	1	-
14	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	2	Rp9.500
15	DISCONTINUE SUB: 76152-54G00-P4Z	SCUFF, SIDE SILL RR RH (GRAY)	1	-
16	76162-54G00-P4Z	SCUFF, SIDE SILL RR LH (GRAY)	1	Rp532.500
17	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
18	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	2	Rp9.500
19-1	DISCONTINUE SUB: 76170-54G01-P4Z	TRIM, QUARTER INNER RH (GRAY)	1	-	TYPE 1
19-2	DISCONTINUE SUB: 76170-54GA0-P4Z	TRIM, QUARTER INNER RH (GRAY)	1	-	TYPE 2
20	DISCONTINUE SUB: 76180-54G01-P4Z	TRIM, QUARTER INNER LH (GRAY)	1	-
21	76172-54G00-P4Z	•CAP, QUARTER TRIM	2	Rp94.500
22	DISCONTINUE SUB: 76216-76F20-000	•CLIP	2	-
23	DISCONTINUE SUB: 76179-54GA0-P4Z	LID, QUARTER TRIM (GRAY)	1	-	TYPE 2
24	09409M07308-P4Z	CLIP (GRAY)	8	Rp7.500
25	DISCONTINUE SUB: 76211-54G01-P7Z	TRIM, CTR PILLAR INNER UPPER RH (GRAY)	1	-
26	DISCONTINUE SUB: 76221-54G01-P7Z	TRIM, CTR PILLAR INNER UPPER LH (GRAY)	1	-
27	DISCONTINUE SUB: 09409-10311-000	•CLIP	2	-
28-1	DISCONTINUE SUB: 76231-54G00-P4Z	TRIM, CTR PILLAR INNER LOWER RH (GRAY)	1	-
28-2	DISCONTINUE SUB: 76231-54G01-P4Z	TRIM, CTR PILLAR INNER LOWER RH (GRAY)	1	-	2003-10%
29	DISCONTINUE SUB: 76241-54G01-P4Z	TRIM, CTR PILLAR INNER LOWER LH (GRAY)	1	-
30	DISCONTINUE SUB: 76251-54G01-P7Z	TRIM, QUARTER WINDOW RH (GRAY)	1	-
31	DISCONTINUE SUB: 76216-76F20-000	CLIP	7	-
32	DISCONTINUE SUB: 76261-54G00-P7Z	TRIM, QUARTER WINDOW LH (GRAY)	1	-
33	DISCONTINUE SUB: 76216-76F20-000	CLIP, LH	7	-
34	09409M07308-P4Z	CLIP (GRAY)	2	Rp7.500
35	09122-76001-000	BOLT (6X16)	6	Rp16.500
36	DISCONTINUE SUB: 76252-54G00-6GS	GARNISH, RR SPEAKER RH (GRAY)	1	-
37	DISCONTINUE SUB: 76262-54G00-6GS	GARNISH, RR SPEAKER LH (GRAY)	1	-
38	76253-54G00-000	PAD, QUARTER WINDOW TRIM REAR	1	-
39	DISCONTINUE SUB: 76311-54G00-P4Z	TRIM, BACK PANEL (GRAY)	1	-
40	DISCONTINUE SUB: 09250-23002-P4Z	CAP (OD:32)(GRAY)	2	-
41	09409M07308-P4Z	CLIP (GRAY)	4	Rp7.500
42	76297-70C00-P4Z	CAP, CHILD ANCHORAGE (GRAY)	1	Rp50.500
43	DISCONTINUE SUB: 84961-65G00-P4Z	HOOK, REAR SEAT BELT (GRAY)	2	-
44	76410-55G02-6GS SUB: 76410-55G01-6GS	GRIP, ASSISTANT (GRAY)	3	Rp255.500
45	76412-55G00-6GS	CAP, ASSISTANT GRIP (GRAY)	2	Rp31.000	TYPE 1
46	DISCONTINUE SUB: 76413-55G00-6GS	HOOK, COAT HANGER (GRAY)	2	-
47	DISCONTINUE SUB: 76440-54G00-6GS	HOLDER, SUNGLASSES (GRAY)	1	-	TYPE 2
48	76418-55G00-6GS	•CAP (GRAY)	2	-	TYPE 2
49	76291-54G01-000	TRIM, FRONT DOOR OPENING RH	1	Rp1.068.000
50	DISCONTINUE SUB: 76292-54G01-000	TRIM, FRONT DOOR OPENING LH	1	-
51	DISCONTINUE SUB: 76295-54G00-000	TRIM, REAR DOOR OPENING RH	1	-
52	DISCONTINUE SUB: 76296-54G00-000	TRIM, REAR DOOR OPENING LH	1	-
