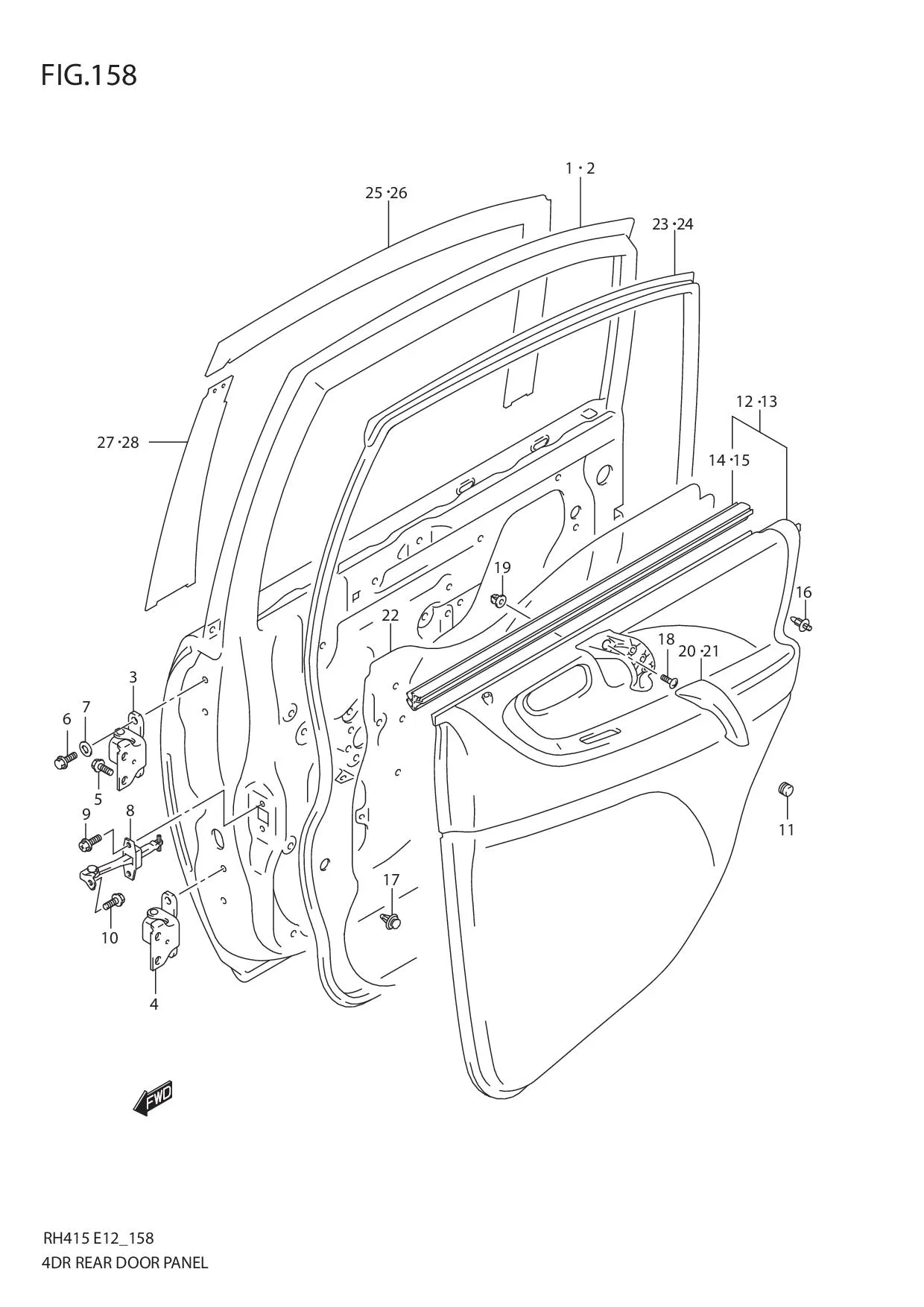

FIG.158 4DR REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 68003-55GC1-000	PANEL ASSY, REAR DOOR RH	1	-	TYPE 2
1-1	DISCONTINUE SUB: 68003-55842-000	PANEL ASSY, REAR DOOR RH	1	-	TYPE 1
2-1	DISCONTINUE SUB: 68004-55842-000	PANEL ASSY, REAR DOOR LH	1	-	TYPE 1
2-2	DISCONTINUE SUB: 68004-55GC1-000	PANEL ASSY, REAR DOOR LH	1	-	TYPE 2
3	69440-65D00-000	HINGE, REAR DOOR NO.1	2	Rp416.500	UPPER RH/LOWER LH
4	69430-65D00-000	HINGE, REAR DOOR NO.2	2	Rp433.000	UPPER LH/LOWER RH
5	01551-0820A-000 SUB: 01551-08203-000	BOLT, PILLAR	8	Rp17.500
6	09103M08557-000 SUB: 09103M08389-000	BOLT, DOOR (8X24)	8	Rp8.500
7	DISCONTINUE SUB: 69480-65D00-000	WASHER	4	-
8	81810-54G04-000 SUB: 81810-54G00-000	STOP, DOOR OPEN	2	Rp447.500
9	09122-86004-000	SCREW (6X20)	4	Rp15.000
10	09112-08004-000	BOLT, STOP BODY (8X25)	2	Rp26.000
11	82711M70F00-000 SUB: 82711M56B00-000	STOPPER, DOOR	2	Rp8.500
12-1	DISCONTINUE SUB: 83730-54G00-KJ4	TRIM, REAR DOOR RH	1	-	TYPE 1
12-2	83730-54GA0-AGU	TRIM, REAR DOOR RH	1	-	TYPE 2
13-2	DISCONTINUE SUB: 83740-54GA0-AGU	TRIM, REAR DOOR LH	1	-	TYPE 2
13-1	DISCONTINUE SUB: 83740-54G00-KJ4	TRIM, REAR DOOR LH	1	-	TYPE 1
14	83739-54G00-000	•WEATHERSTRIP, DOOR INNER RH	1	Rp493.000
15	83749-54G00-000	•WEATHERSTRIP, DOOR INNER LH	1	Rp493.000
16	09409-06314-P4Z	CLIP, TRIM REAR (GRAY)	2	Rp22.000
17-1	83714M62B00-000 SUB: 09409M08320-000	CLIP	12	Rp14.500	TYPE 1
17-2	09409-10327-000 SUB: 09409B10312N000	CLIP	12	Rp5.000	TYPE 2
18	03241-0616C-000 SUB: 03242-06163-000	SCREW, GRIP	4	Rp17.000
19	71851M70F00-000 SUB: 09148M06007-000	NUT, GRIP	4	Rp4.000
20	83715-54G00-P4Z	COVER, DOOR GRIP RH (GRAY)	1	Rp109.000
21	83725-54G00-P4Z	COVER, DOOR GRIP LH (GRAY)	1	Rp109.000
22	83911-60X52-000 SUB: 83911-60X51-000	COVER, DOOR SEALING (600X1200)	2	Rp111.000	CUT AS REQUIRED
23	DISCONTINUE SUB: 84661-55G01-000	WEATHERSTRIP, DOOR OPENING RH	1	-
24	DISCONTINUE SUB: 84671-55G01-000	WEATHERSTRIP, DOOR OPENING LH	1	-
25	83925-55G01-0CB	TAPE, SASH ROOF RH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
26	83926-55G01-0CB	TAPE, SASH ROOF LH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
27	DISCONTINUE SUB: 83927-54G01-0CB	TAPE, SASH PILLAR RH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
28	DISCONTINUE SUB: 83928-54G01-0CB	TAPE, SASH PILLAR LH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
