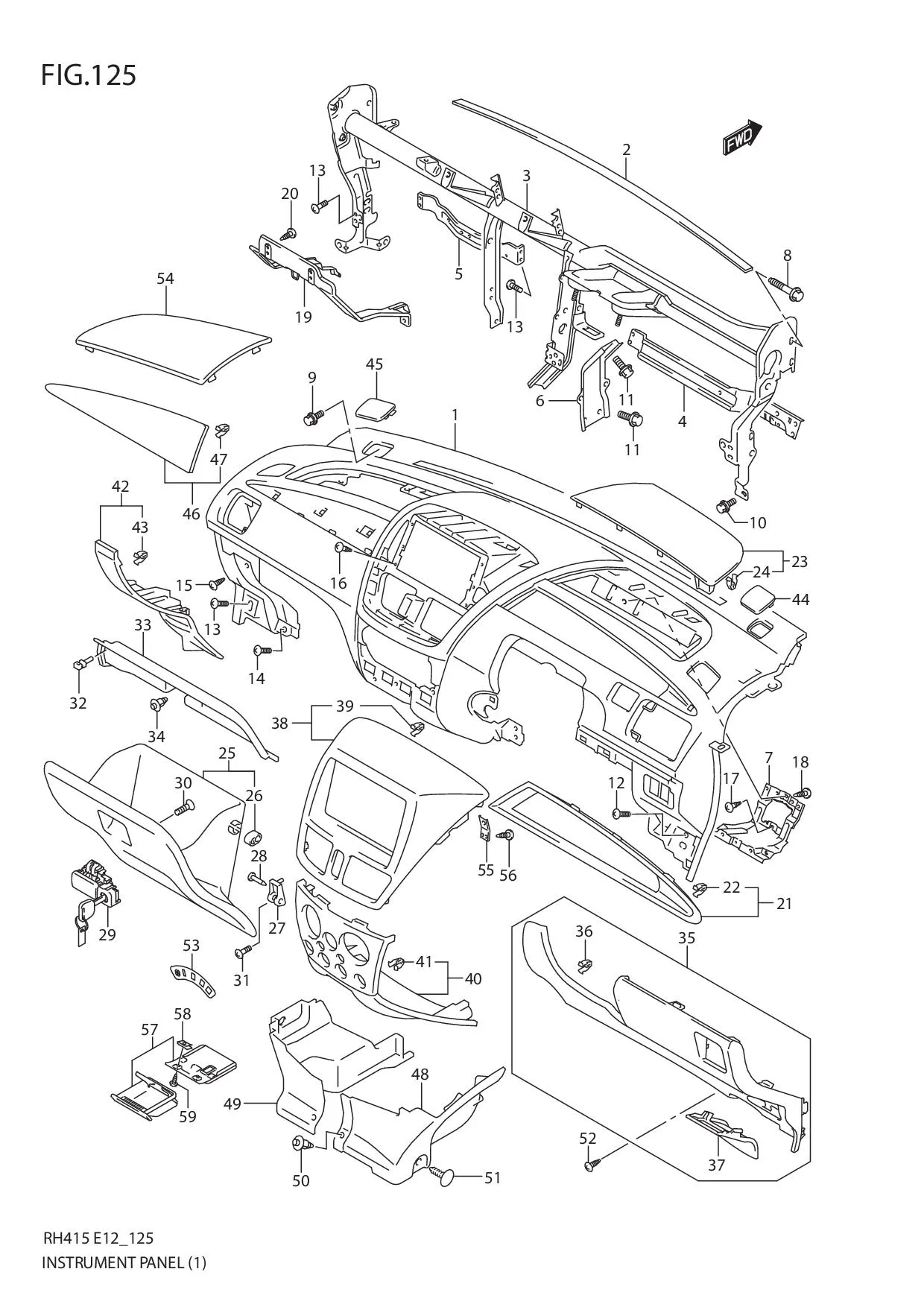

FIG.125 INSTRUMENT PANEL (TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 73111-54G01-P4Z	PANEL, INSTRUMENT MAIN (GRAY)	1	-
2	DISCONTINUE SUB: 73118-60G00-000	SEAL, INSTRUMENT PANEL	1	-
3	DISCONTINUE SUB: 73200-54G02-000	MEMBER, STEERING SUPPORT	1	-
4	DISCONTINUE SUB: 73241-54G00-000	MEMBER, DRIVER LOWER	1	-
5	DISCONTINUE SUB: 73242-54G00-000	MEMBER, ASSISTANT LOWER	1	-
6	DISCONTINUE SUB: 73243-54G00-000	BRACE, SUPPORT MEMBER LOWER	1	-
7	DISCONTINUE SUB: 73261-54G00-000	BRACKET, METER	1	-
8	73291-54G10-000 SUB: 73291-54G00-000	BOLT, SUPPORT MEMBER SIDE	4	Rp46.500
9	DISCONTINUE SUB: 01580-06163-000	BOLT, UPPER	2	-
10	DISCONTINUE SUB: 01580-06163-000	BOLT, LOWER	2	-
11	01551-0816C-000 SUB: 01551-08163-000	BOLT, SUPPORT MEMBER LOWER	4	Rp13.500
12	02142-0512A-000 SUB: 02142B05123N000	SCREW, DRIVER LOWER MEMBER	4	Rp3.500
13	02142-0512A-000 SUB: 02142B05123N000	SCREW, ASSISTANT LOWER MEMBER	4	Rp3.500
14	02142-0512A-000 SUB: 02142B05123N000	SCREW, GLOVE BOX SIDE	1	Rp3.500
15	03141-0516B-000 SUB: 03142-05163-000	SCREW, LID COVER	2	Rp3.500
16	03241-0512A-000 SUB: 03242-05123-000	SCREW, CENTER	2	Rp3.500
17	03241-0512A-000 SUB: 03242-05123-000	SCREW, METER HOLE	1	Rp3.500
18	03541-0516A-000 SUB: 03541B05163N000	SCREW, METER BRACKET	4	Rp3.500
19	73450-54G00-000	PANEL, ASSISTANT KNEE BOLSTER	1	-
20	03541-0516A-000 SUB: 03541B05163N000	SCREW, BOLSTER PANEL	4	Rp3.500
21	DISCONTINUE SUB: 73311-54G00-5PK	PANEL, CLUSTER (BLACK)	1	-
22	09409-08326-000 SUB: 09409B08326N000	•CLIP	1	Rp8.000
23	DISCONTINUE SUB: 73321-54G00-P4Z	COVER, METER HOLE (GRAY)	1	-
24	09409-08326-000 SUB: 09409B08326N000	•CLIP	6	Rp8.000
25-1	DISCONTINUE SUB: 73410-54G00-KA7	BOX, GLOVE (GRAY)	1	-	4DR
25-2	DISCONTINUE SUB: 73410-54G00-FL1	BOX, GLOVE (BEIGE/GRAY)	1	-	5DR
26	73413M65D00-000	•CUSHION	2	Rp6.500
27	73422-50G00-000	HINGE	1	Rp41.500
28	73423-50G00-000	PIN, HINGE	1	Rp30.000
29-1	73430-60880-R8K	LOCK, GLOVE BOX (GRAY)	1	-	4DR
29-2	DISCONTINUE SUB: 73430-60880-P5B	LOCK, GLOVE BOX (BEIGE)	1	-	5DR
30	DISCONTINUE SUB: 03521-0416A-000	SCREW	2	-
31	02142-0512A-000 SUB: 02142B05123N000	SCREW	1	Rp3.500
32	73461M54G00-000	CUSHION, LID	2	Rp5.500
33	DISCONTINUE SUB: 73841-54G00-P4Z	COVER, GLOVE BOX LID (GRAY)	1	-
34	09409-06314-P4Z	CLIP (GRAY)	1	Rp22.000
35-1	73810-54G00-R8K	COVER, COLUMN HOLE (GRAY)	1	-	4DR
35-2	DISCONTINUE SUB: 73810-54G00-P5B	COVER, COLUMN HOLE (BEIGE)	1	-	5DR
36	09409-08326-000 SUB: 09409B08326N000	•CLIP	5	Rp8.000
37-1	DISCONTINUE SUB: 73812-54G00-R8K	•COVER, FUSE BOX (GRAY)	1	-	4DR
37-2	DISCONTINUE SUB: 73812-54G00-P5B	•COVER, FUSE BOX (BEIGE)	1	-	5DR
38	73821-54G00-5PK	GARNISH, CENTER UPPER (BLACK)	1	Rp379.000
39	09409-08326-000 SUB: 09409B08326N000	•CLIP	5	Rp8.000
40	DISCONTINUE SUB: 73822-54G00-P4Z	GARNISH, CENTER LOWER (GRAY)	1	-
41	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
42-1	DISCONTINUE SUB: 73831-54G00-R8K	COVER, GLOVE BOX SIDE (GRAY)	1	-	4DR
42-2	DISCONTINUE SUB: 73831-54G00-P5B	COVER, GLOVE BOX SIDE (BEIGE)	1	-	5DR
43	09409-08326-000 SUB: 09409B08326N000	•CLIP	5	Rp8.000
44	DISCONTINUE SUB: 73832-54G00-P4Z	COVER, UPPER RH (GRAY)	1	-
45	DISCONTINUE SUB: 73833-54G00-P4Z	COVER, UPPER LH (GRAY)	1	-
46	DISCONTINUE SUB: 73851-54G00-5PK	GARNISH, ASSISTANT SIDE	1	-
47	09409-08332-000	•CLIP	3	Rp18.000
48	DISCONTINUE SUB: 75871-54G00-P4Z	COVER, CONSOLE FR DRIVER SIDE	1	-
49	DISCONTINUE SUB: 75881-54G00-P4Z	COVER, FR ASSISTANT SIDE (GRAY	1	-
50	09409-06314-P4Z	CLIP (GRAY)	1	Rp22.000
51	DISCONTINUE SUB: 09409-08321-P4Z	CLIP (GRAY)	3	-
52	03241-0516A-000 SUB: 03242-05163-000	SCREW	2	Rp17.000
53	DISCONTINUE SUB: 74515-54G01-P4Z	PLATE, INDICATOR HTR CONT	1	-
54	DISCONTINUE SUB: 73921-54G00-P4Z	COVER, PASSENGER AIR BAG	1	-
55	73262-54G00-000	BRACKET, ASHTRAY	1	-
56	03541-0516A-000 SUB: 03541B05163N000	SCREW	1	Rp3.500
57	89810-80G11-5PK	ASHTRAY, FRONT (BLACK)	1	Rp777.000
58	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
59	03141-0516B-000 SUB: 03142-05123-000	SCREW	3	Rp3.500
