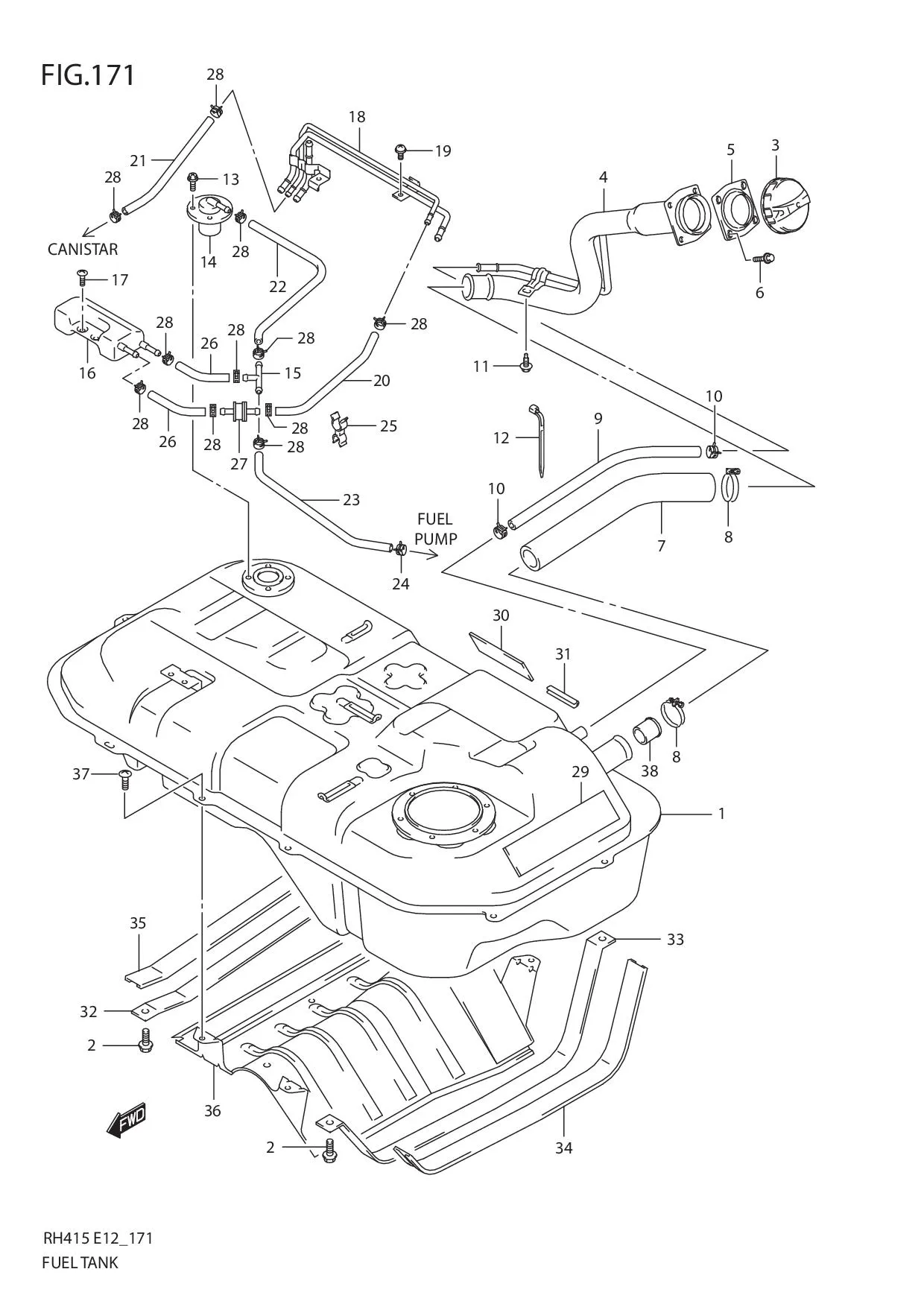

FIG.171 FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 89101-54G01-000	TANK ASSY, FUEL	1	-
2	DISCONTINUE SUB: 09118-10052-000	BOLT (10X30)	4	-
3	89260-50J00-000	CAP ASSY, FUEL FILLER	1	Rp233.000
4	DISCONTINUE SUB: 89201-54G00-000	NECK, FUEL FILLER	1	-
5	89285-75F00-000	PACKING, FUEL FILLER	1	Rp69.000
6	09116M05014-000	BOLT (5X20)	3	Rp5.500
7	DISCONTINUE SUB: 89241-54G20-000	HOSE, FUEL TANK FILLER	1	-
8	09400M45L01-000 SUB: 09400M45311-000	CLAMP	2	Rp32.500
9	09355-11188-00B	HOSE	1	Rp308.000	L:2000!540
10	09401M16L01-000 SUB: 09401-16406-000	CLIP	2	Rp9.000
11	DISCONTINUE SUB: 09116-06173-000	BOLT (6X16)	1	-
12	DISCONTINUE SUB: 09407M19401-000	CLAMP (L:190)	2	-
13	DISCONTINUE SUB: 09136-05045-000	SCREW (5X10)	4	-
14	DISCONTINUE SUB: 89485-50G00-000	VALVE, FUEL CUT	1	-
15	09367-06002-000	JOINT, 3 WAY	1	Rp21.000
16	89411-60G00-000	SEPARATOR, FUEL/VAPOR	1	Rp211.500
17	02142-0510A-000 SUB: 02142-05103-000	SCREW	2	Rp4.000
18	DISCONTINUE SUB: 89420-54G00-000	PIPE, FUEL EVAPO	1	-
19	DISCONTINUE SUB: 09136-05045-000	SCREW (5X10)	2	-
20	09355-56128-600 SUB: 09355-54128-600	HOSE	1	Rp94.000	L:600!300
21	09355-56128-600 SUB: 09355-54128-600	HOSE	1	Rp94.000	L:600!170
22	09355-56128-600 SUB: 09355-54128-600	HOSE	1	Rp94.000	L:600!400
23	09359-54121-610 SUB: 09359-54121-600	HOSE	1	Rp169.000	L:600!360
24	09401-12405-000 SUB: 09401-12404-000	CLIP	1	Rp16.500
25	DISCONTINUE SUB: 09408-00050-000	CLIP	1	-
26	09355-56128-600 SUB: 09355-54128-600	HOSE	2	Rp94.000	L:600!100
27	85451-75100-000	VALVE, 2 WAY CHECK	1	Rp360.000
28	09401M11419-000	CLIP	11	Rp6.000
29	DISCONTINUE SUB: 89381-60G00-000	PAD, FUEL TANK	6	-
30	DISCONTINUE SUB: 89381-60G00-000	PAD, FUEL TANK	2	-
31	DISCONTINUE SUB: 89445-60G00-000	PROTECTOR, TANK FLANGE	2	-
32	89360-54G00-000	BELT, TANK FIXER RH	1	-
33	89370-54G00-000	BELT, TANK FIXER LH	1	-
34	DISCONTINUE SUB: 89385-60G00-000	PAD, FUEL TANK BELT	1	-
35	DISCONTINUE SUB: 89385-65D00-000	PAD, FUEL TANK BELT	1	-
36	89311-54G00-000	PROTECTOR, FUEL TANK	1	-
37	02142-0510A-000 SUB: 02142-05103-000	SCREW	4	Rp4.000
38	89280-77A00-000	VALVE, FUEL TANK INLET	1	Rp107.000
