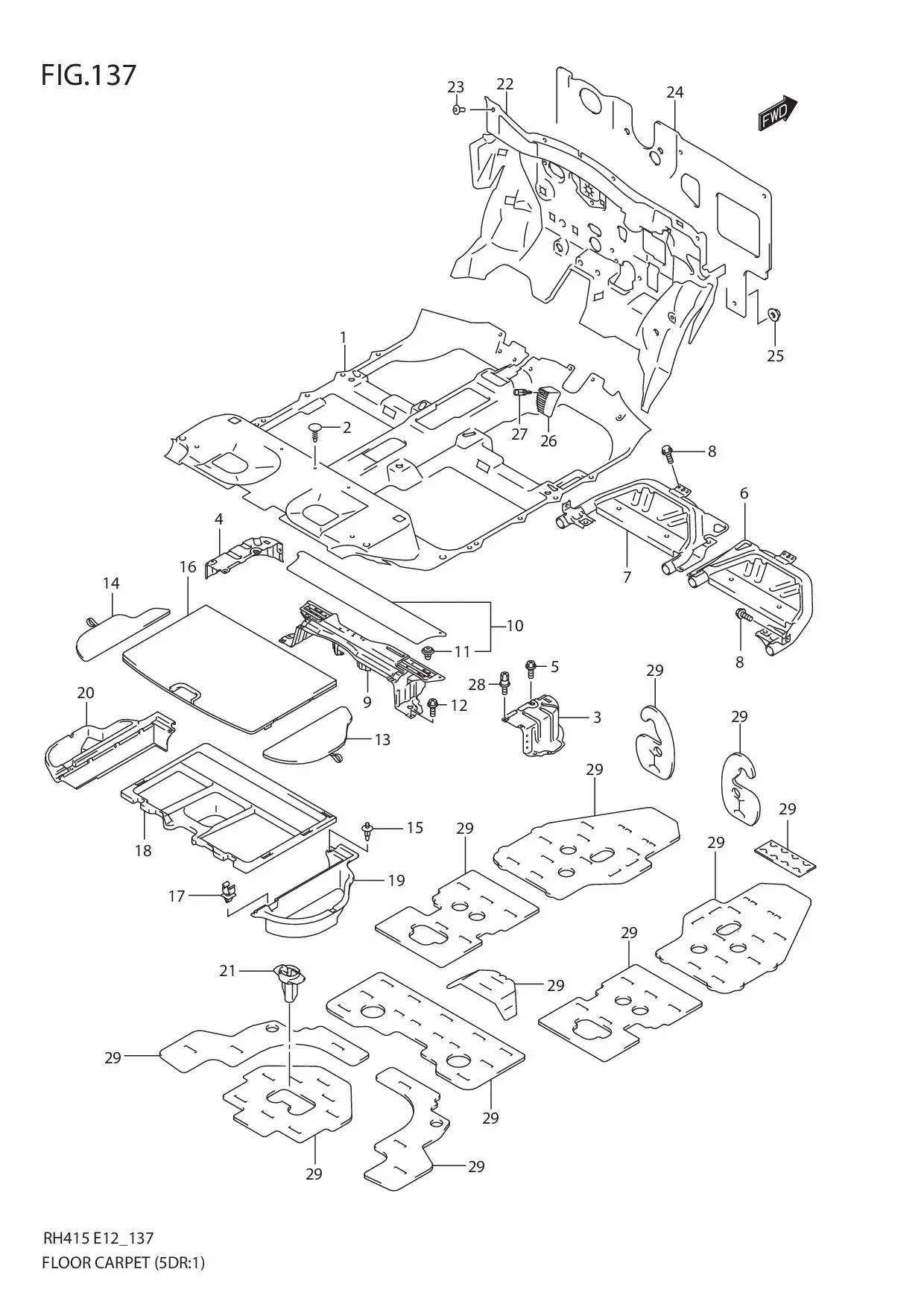

FIG.137 FLOOR CARPET (TYPE 1:5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 75110B54G60NR8V	CARPET, FLOOR (GRAY)	1	-
2	09409-10302-P4Z	CLIP (GRAY)	3	Rp19.500
3	75434-54G00-000	PANEL, RR SEAT SUPPORT SIDE RH	1	-
4	75435-54G00-000	PANEL, RR SEAT SUPPORT SIDE LH	1	-
5	02162-0612B-000 SUB: 02162-06123-000	SCREW	6	Rp16.000
6	DISCONTINUE SUB: 75610-54G00-000	PIPE, MAIN FLOOR SUPPORT RH	1	-
7	DISCONTINUE SUB: 75660-54G00-000	PIPE, MAIN FLOOR SUPPORT LH	1	-
8	01551-0816C-000 SUB: 01551-08163-000	BOLT	10	Rp13.500
9	DISCONTINUE SUB: 75420-54G00-000	PLATE, RR FLOOR UPPER FR	1	-
10	DISCONTINUE SUB: 75490-54G00-P9S	COVER, RR FLOOR UPPER PLATE (GRAY)	1	-
11	DISCONTINUE SUB: 09409-08337-000	•CLIP	5	-
12	02162-0612B-000 SUB: 02162-06123-000	SCREW	6	Rp16.000
13-1	DISCONTINUE SUB: 75470-54G00-P9S	COVER, RR FLOOR SIDE BOX RH (GRAY)	1	-
13-2	75470-54G01-P9S	COVER, RR FLOOR SIDE BOX RH (GRAY)	1	-	2003-2%
14-1	75480-54G00-P9S	COVER, RR FLOOR SIDE BOX LH (GRAY)	1	-
14-2	DISCONTINUE SUB: 75480-54G01-P9S	COVER, RR FLOOR SIDE BOX LH (GRAY)	1	-	2003-2%
15	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	4	Rp7.500
16-1	DISCONTINUE SUB: 75440-54G11-FK6	COVER, SPARE TIRE (GRAY)	1	-
16-2	DISCONTINUE SUB: 75440-54G11-P9S	COVER, SPARE TIRE (GRAY)	1	-	2003-2%
17	DISCONTINUE SUB: 76215-74G00-000	HOLDER, SPARE TIRE COVER	2	-
18	DISCONTINUE SUB: 75463-54G00-000	BOX, TIRE COVER UNDER	1	-
19	DISCONTINUE SUB: 75461-54G00-000	BOX, RR FLOOR SIDE RH	1	-
20	DISCONTINUE SUB: 75462-54G00-000	BOX, RR FLOOR SIDE LH	1	-
21	75450-80J00-000 SUB: 75450-54G01-000	HOLDER, SPARE TIRE	1	Rp125.000
22-1	75210-54G02-000	SILENCER, DASH PANEL	1	-
22-2	75210-54G02-000	SILENCER, DASH PANEL	1	-	2003-3%
23	09148-05037-000	NUT	9	Rp18.000
24	DISCONTINUE SUB: 72443-54G02-000	SILENCER, DASH OUTER	1	-
25	09148-05048-000	NUT	1	Rp19.500
26	DISCONTINUE SUB: 75491-60B10-000	PEDAL, FOOTREST	1	-
27	DISCONTINUE SUB: 75581-54G00-000	CLIP, FOOTREST	1	-
28	DISCONTINUE SUB: 09113-06005-000	SCREW, RR SEAT CUSHION STOPPER	2	-
29	99611-60A01-000	SHEET, SILENCER (800X1000X3)	0	Rp1.210.000	CUT AS REQUIRED
