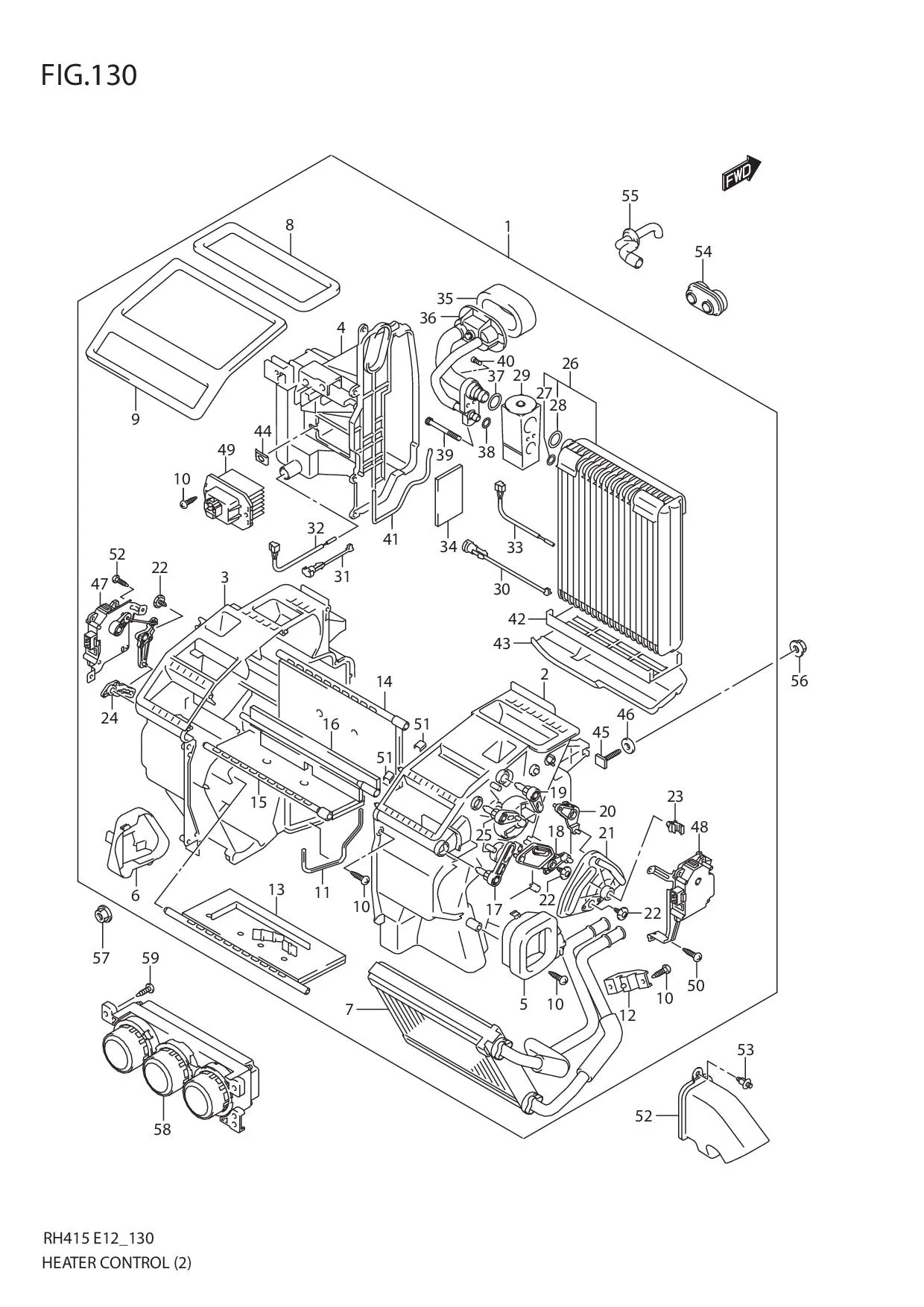

FIG.130 HEATER CONTROL (TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 74100-59JA0-000	HEATER UNIT	1	-
2	DISCONTINUE SUB: 74111-59J00-000	•CASE, HEATER DRIVER	1	-
3	DISCONTINUE SUB: 74112-59J00-000	•CASE, HEATER ASSISTANT	1	-
4	DISCONTINUE SUB: 74113-54G00-000	•DUCT, AIR JOINT	1	-
5	DISCONTINUE SUB: 74116-59J00-000	•DUCT, AIR RH	1	-
6	DISCONTINUE SUB: 74115-59J00-000	•DUCT, AIR LH	1	-
7	DISCONTINUE SUB: 74120B54G00N000	•CORE, HEATER	1	-
8	74139-59J00-000	•PACKING, DEFROSTER	1	-
9	74140-59J00-000	•PACKING FACE	1	-
10	03112-0416A-000 SUB: 03112-04163-000	•SCREW	22	Rp23.500
11	74132-54G00-000	•PACKING, CASE	1	-
12	74131-54G00-000	•BRACKET	1	-
13	74171-54G00-000	•DOOR ASSY, AIR MIXTURE	1	-
14	74172-59J00-000	•DOOR ASSY, DEFROSTER	1	-
15	74173-54G00-000	•DOOR ASSY, FACE	1	-
16	74174-59J00-000	•DOOR ASSY, SIDE FACE	1	-
17	74181-54G00-000	•LEVER, FACE	1	-
18	74183-59J00-000	•LEVER, FACE SUB	1	-
19	74182-59J00-000	•LEVER, DEFROSTER	1	-
20	74184-59J00-000	•LEVER, DEFROSTER SUB	1	-
21	74185-59J00-000	•PLATE, MODE MAIN	1	-
22	74183-82005-000 SUB: 74183B82005N000	•SCREW, LINK	4	Rp19.000
23	74187-81A00-000	•CLAMP, ROD	1	-
24	74191-54G00-000	•LEVER, AIR MIXTURE	1	-
25	74186-59J00-000	•LEVER, SIDE FACE	1	-
26	DISCONTINUE SUB: 95410B54G00N000	•EVAPORATOR ASSY	1	-
27	95895-50G00-000 SUB: 95895B50G00N000	••O RING (D:2.4,ID:1.8)	1	Rp12.500
28	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	1	Rp19.000
29	DISCONTINUE SUB: 95431-65D10L000	•VALVE, EXPANSION	1	-
30	95452-54G00-000	•CLAMP, THERMISTOR	1	-
31	95452-54G10-000	•CLAMP, THERMISTOR	1	-
32	95541-54G10-000 SUB: 95541B54G10N000	•THERMISTOR	1	Rp192.500
33	95541-54G01-000 SUB: 95541B54G01N000	•THERMISTOR	1	Rp238.000
34	74137-54G00-000	•PACKING	1	-
35	74136-54G00-000	•PACKING, AIR CONDITIONER PIPE	1	-
36	DISCONTINUE SUB: 74135-54G00-000	•TUBE, AIR CONDITIONER	1	-
37	95896-50G00-000 SUB: 95896B50G00N000	••O RING (D:2.4,ID:13.4)	1	Rp19.000
38	95891-50G00-000 SUB: 95891B50G00N000	••O RING (D:1.8,ID:6.7)	1	Rp12.500
39	74134-54G00-000	•BOLT, EXPANSION VALVE	2	-
40	74138-54G00-000	•BOLT	1	-
41	74133-54G00-000	•PACKING, EVAPORATOR	1	-
42	95461-54G00-000	•COVER, EVAPORATOR	1	-
43	95462-54G00-000	•PACKING, EVAPORATOR LOWER	1	-
44	09148-04024-000	•NUT	1	Rp14.000
45	74115-65D00-000 SUB: 74115B65D00N000	•BOLT	2	Rp106.500
46	DISCONTINUE SUB: 74119-78F00-000	•WASHER, RUBBER	2	-
47	DISCONTINUE SUB: 95651-54G10-000	•ACTUATOR, TEMP	1	-
48	DISCONTINUE SUB: 95653-59J00-000	•ACTUATOR, MODE	1	-
49	95626-54G01-000 SUB: 95626-54G00-000	•DRIVER, BLOWER FAN	1	Rp1.284.500
50	03112-0416A-000 SUB: 03112-04163-000	•SCREW	5	Rp23.500
51	74133-59J00-000	•CLAMP	2	-
52	DISCONTINUE SUB: 74114-59J00-000	DUCT, FOOT RH	1	-
53	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	1	Rp7.500
54	DISCONTINUE SUB: 74812-77E00-000	GROMMET, HEATER	1	-
55	95481-54G00-000	HOSE, DRAIN	1	-
56	08316-1006A-000 SUB: 08316-10063L000	NUT	2	Rp2.000
57	09159-06081-000	NUT	1	Rp14.500
58	39510-59J11-000 SUB: 39510-59J10-000	PANEL UNIT, AIR CON	1	Rp8.796.500
59	03541-0512A-000 SUB: 03541-05123L000	SCREW	4	Rp3.500
