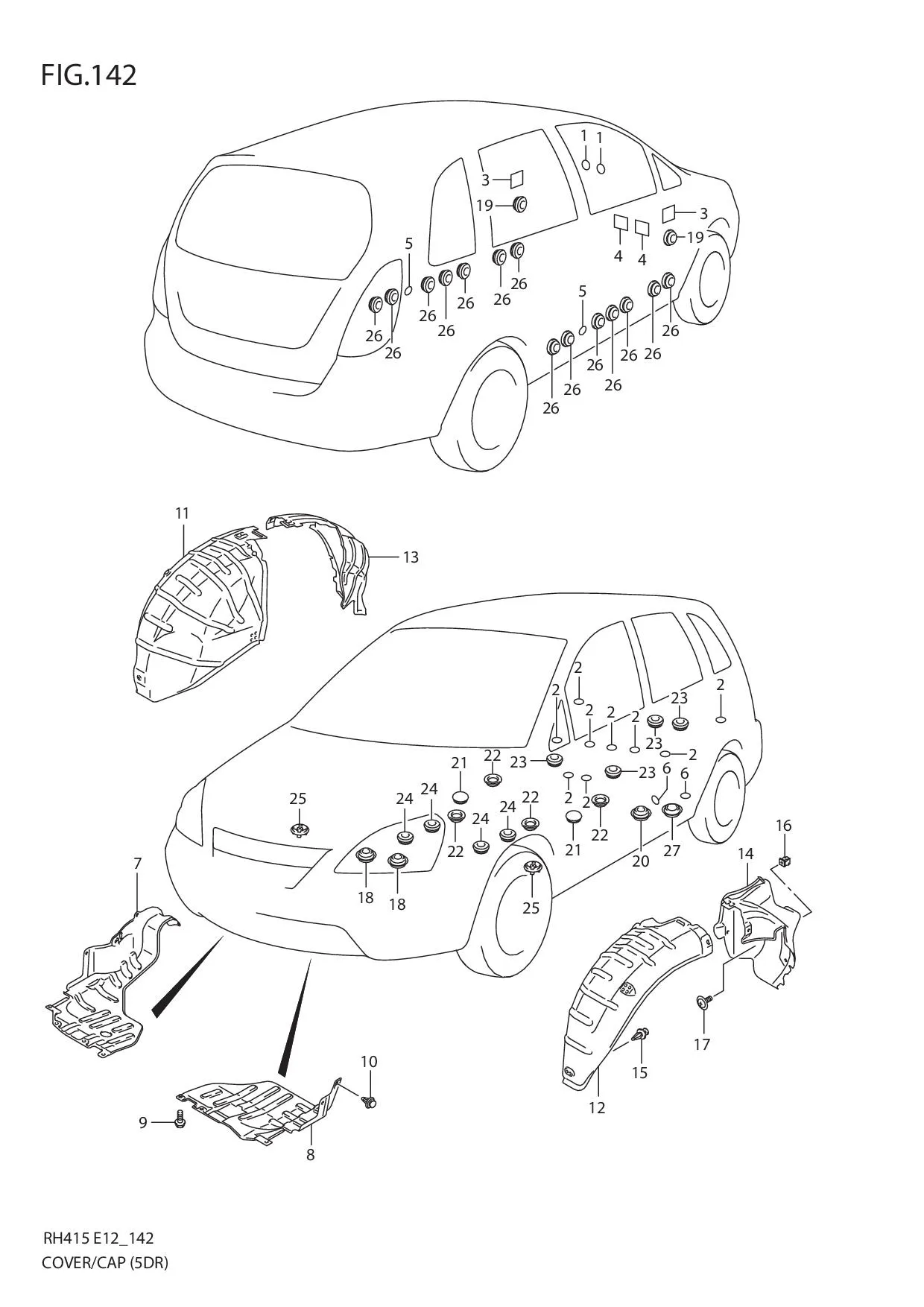

FIG.142 COVER CAP (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 84761-50X50-000	FILM, COWL TOP FRONT (140X190)	2	-	CUT AS REQUIRED
2	DISCONTINUE SUB: 84761-50X50-000	FILM, LUGGAGE FLOOR (140X190)	9	-	CUT AS REQUIRED
3	DISCONTINUE SUB: 84761-50X50-000	FILM, DASH SIDE (140X190)	2	-	CUT AS REQUIRED
4	DISCONTINUE SUB: 84761-50X50-000	FILM, DASH LOWER MEMBER (140X190)	2	-	CUT AS REQUIRED
5	DISCONTINUE SUB: 84761-50X50-000	FILM, SIDE SILL INNER (140X190)	2	-	CUT AS REQUIRED
6	DISCONTINUE SUB: 84761-50X50-000	FILM, RR FLOOR SIDE (140X190)	4	-	CUT AS REQUIRED
7	72381-54G02-000	COVER, ENGINE UNDER RH	1	Rp453.000
8-1	72382-54G01-000	COVER, ENGINE UNDER LH	1	Rp446.500	MT
8-2	72382-54G11-000	COVER, ENGINE UNDER LH	1	Rp456.000	AT
9	09122-76001-000	SCREW (6X16)	6	Rp16.500
10-1	09409M07L01-000 SUB: 09409M07332-000	CLIP	6	Rp5.000	MT
10-2	09409M07L01-000 SUB: 09409M07332-000	CLIP	5	Rp5.000	AT
11	75561-54G00-000	LINING, REAR FENDER FRONT RH	1	Rp305.500
12	75571-54G00-000	LINING, REAR FENDER FRONT LH	1	Rp305.500
13-2	DISCONTINUE SUB: 75562-54G50-000	LINING, REAR FENDER REAR RH	1	-	TYPE 2
13-1	DISCONTINUE SUB: 75562-54G00-000	LINING, REAR FENDER REAR RH	1	-	TYPE 1
14-1	DISCONTINUE SUB: 75572-54G00-000	LINING, REAR FENDER REAR LH	1	-	TYPE 1
14-2	75572-54G50-000	LINING, REAR FENDER REAR LH	1	Rp334.500	TYPE 2
15	09409M07L01-000 SUB: 09409M07332-000	CLIP	14	Rp5.000
16	09148-05018-000	NUT	2	Rp11.500
17	09136-05060-000 SUB: 09136-05034-000	SCREW (5X16)	2	Rp17.500
18	09250-16015-000 SUB: 09250B16015N000	CAP, DASH LOWER	2	Rp3.500
19	09250-30002-000 SUB: 09250-30010-000	CAP, DASH SIDE PANEL	2	Rp5.500
20	09250-15012-000 SUB: 09250B15012N000	CAP, RR FLOOR CROSSMEMBER FR	2	Rp5.000
21	09250-25001-000	CAP, MAIN FLOOR DRAIN NO.1	2	Rp16.500
22	09250-30002-000 SUB: 09250-30010-000	CAP, MAIN FLOOR DRAIN NO.2	4	Rp5.500
23	09250-30002-000 SUB: 09250-30010-000	CAP, REAR FLOOR DRAIN	4	Rp5.500
24	09250-30002-000 SUB: 09250-30010-000	CAP, MAIN FLOOR FRONT	4	Rp5.500
25	DISCONTINUE SUB: 09250-25008-000	CAP, SUB FRAME MOUNT	2	-
26	09250-30002-000 SUB: 09250-30010-000	CAP, MAIN FLOOR SIDE	14	Rp5.500
27	09250-40004-000	CAP, REAR FLOOR SIDE	2	Rp22.000
