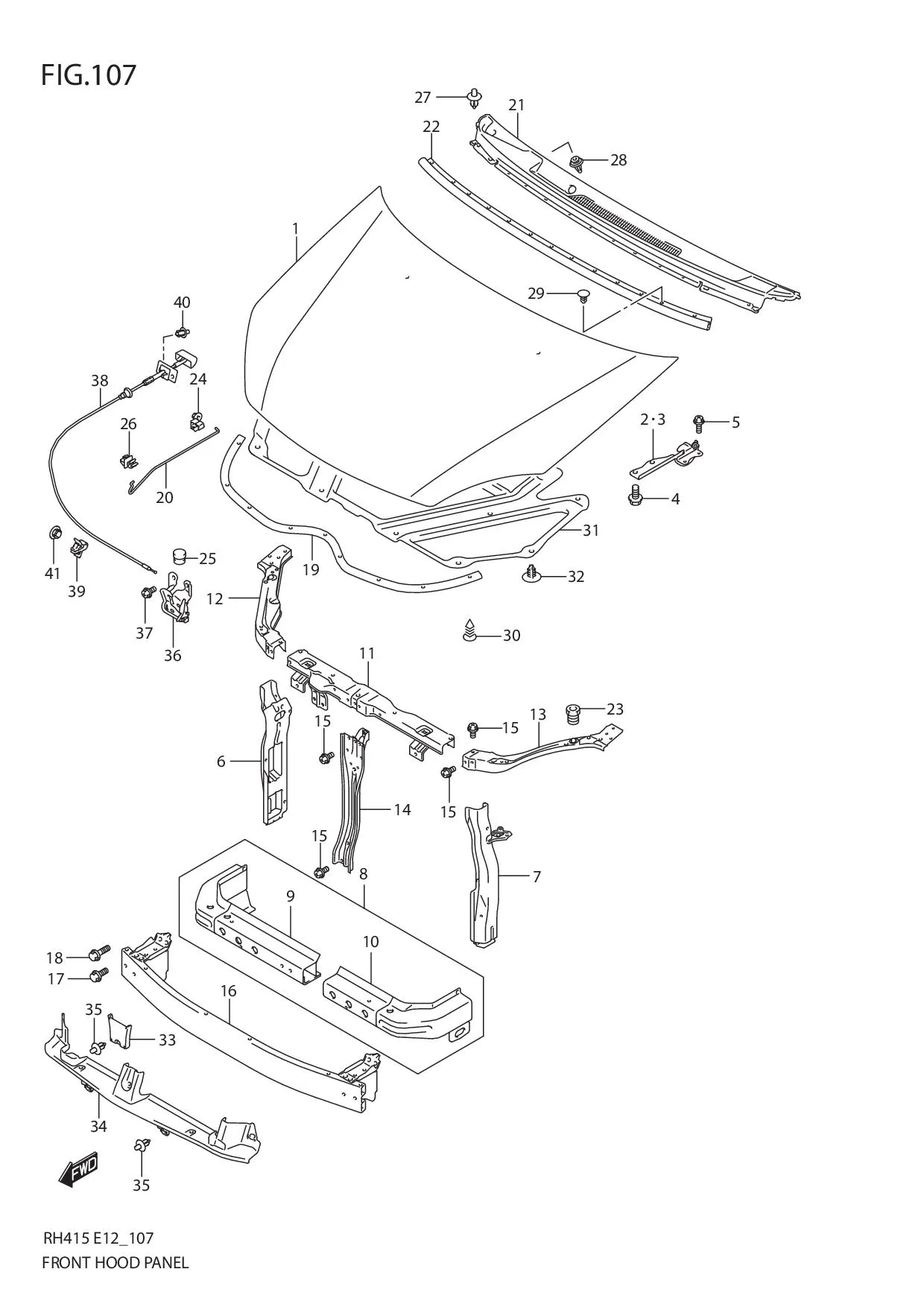

FIG.107 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 57300-54812-000	PANEL, FRONT HOOD	1	-
2	DISCONTINUE SUB: 57410-54G00-000	HINGE, FRONT HOOD RH	1	-
3	DISCONTINUE SUB: 57420-54G00-000	HINGE, FRONT HOOD LH	1	-
4	01551-0820A-000 SUB: 01551-08203-000	BOLT	4	Rp17.500
5	02162-0616A-000 SUB: 02162-06163L000	SCREW	4	Rp3.000
6	DISCONTINUE SUB: 58110-54G02-000	BRACE, LAMP SUPPORT RH	1	-
7	DISCONTINUE SUB: 58160-54G02-000	BRACE, LAMP SUPPORT LH	1	-
8	DISCONTINUE SUB: 58210-54G01-000	CROSSMEMBER, FRONT LOWER	1	-
9	DISCONTINUE SUB: 58210-54G01-P01	•CROSSMEMBER, FRONT LOWER RH	1	-
10	DISCONTINUE SUB: 58210-54G01-P02	•CROSSMEMBER, FRONT LOWER LH	1	-
11-1	DISCONTINUE SUB: 58230-54G00-000	MEMBER, HOOD LOCK	1	-	TYPE 1
11-2	DISCONTINUE SUB: 58230-54G11-000	MEMBER, HOOD LOCK	1	-	TYPE 2
12	DISCONTINUE SUB: 58234-54G01-000	MEMBER, HOOD LOCK SIDE RH	1	-
13	DISCONTINUE SUB: 58235-54G01-000	MEMBER, HOOD LOCK SIDE LH	1	-
14	DISCONTINUE SUB: 58240-54G00-000	BRACE, HOOD LOCK	1	-
15	02162-0612B-000 SUB: 02162-06123-000	SCREW	8	Rp16.000
16	DISCONTINUE SUB: 58260-54G01-000	MEMBER, FRONT BUMPER	1	-
17	01551-0816C-000 SUB: 01551-08163-000	BOLT	2	Rp13.500
18	01551-0820A-000 SUB: 01551-08203-000	BOLT	4	Rp17.500
19	72151-54G00-000	SEAL, HOOD FRONT	1	Rp303.000
20	72321-60B10-000	PROP, FRONT HOOD	1	Rp104.000
21	72331-54G01-5PK	GARNISH, COWL VENTILATOR (BLACK)	1	Rp1.641.500
22-2	72341-54G01-000	SEAL, HOOD REAR	1	Rp362.500	2004-2%
22-1	72341-54G01-000 SUB: 72341-54G00-000	SEAL, HOOD REAR	1	Rp362.500
23	72372-63J00-000 SUB: 72372B82000N000	CUSHION	2	Rp8.000
24	09209M09L02-000 SUB: 09209M09007-000	LINKAGE	1	Rp4.500
25	09321-10023-000 SUB: 09321B10023N000	CUSHION	1	Rp6.000
26	09403M07311-000	CLAMP	1	Rp4.500
27	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
28-1	09409-08331-000	CLIP	5	Rp17.000
28-2	09409-08331-000	CLIP	6	Rp17.000	2003-9%
29	09409-10304-5ES	CLIP (BLACK)	7	Rp18.500
30	09409-10304-5ES	CLIP (BLACK)	9	Rp18.500
31	72441-54G01-000	SILENCER, FRONT HOOD	1	Rp1.385.500
32	09409-06325-000	CLIP	13	Rp17.000
33-1	DISCONTINUE SUB: 72384-54G00-5PK	COVER, HOOD LOCK BRACE (BLACK)	1	-	TYPE 1
33-2	DISCONTINUE SUB: 72384-54GA0-000	COVER, FRONT LOWER CROSSMEMBER	1	-	TYPE 2:4DR
33-3	DISCONTINUE SUB: 72384-54G10-5PK	COVER, FRONT LOWER CROSSMEMBER	1	-	TYPE 2:5DR
34	DISCONTINUE SUB: 72383-54G21-5PK	COVER, FRONT LOWER CROSSMEMBER (BLACK)	1	-
35	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	7	Rp7.500
36	DISCONTINUE SUB: 82110-78F00-000	LATCH, HOOD	1	-
37	02162-0616A-000 SUB: 02162-06163L000	SCREW	4	Rp3.000
38	DISCONTINUE SUB: 82160B54G01N000	CABLE, HOOD LATCH RELEASE	1	-
39	09403M04401-000	CLAMP	4	Rp4.500
40	09409M07308-P4Z	CLIP, RELEASE CABLE HOLDER (GRAY)	2	Rp7.500
41	DISCONTINUE SUB: 09308-12008-000	GROMMET	1	-
