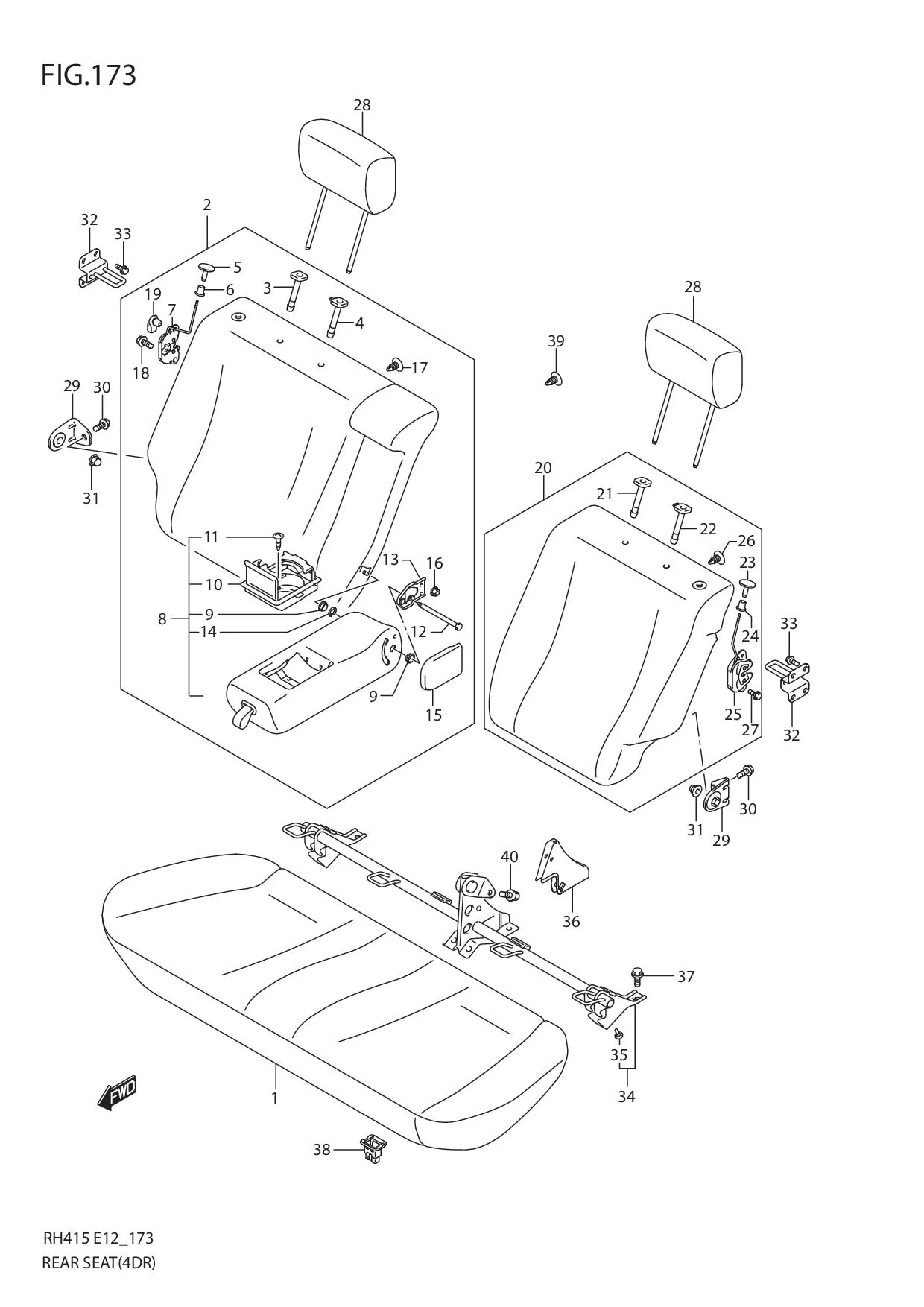

FIG.173 REAR SEAT (4DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	87101-55GS0-KJ3	CUSHION ASSY, REAR	1	-	TYPE 1,2003-4%
1-3	87101-55GS0-AJF	CUSHION ASSY, REAR	1	-	TYPE 2
1-1	87101-55G00-KJ3	CUSHION ASSY, REAR	1	-	TYPE 1
2-1	87301-55G50-KJ3	BACK ASSY, REAR RH	1	-	TYPE 1
2-2	87301-55GS0-KJ3	BACK ASSY, REAR RH	1	-	TYPE 1,2003-4%
2-3	87301-55GU0-AJF	BACK ASSY, REAR RH	1	-	TYPE 2
3	DISCONTINUE SUB: 85341M81A00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
4	DISCONTINUE SUB: 85840-81A10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
5	87211-76G11-P4Z SUB: 87211-76G00-P4Z	•KNOB (GRAY)	1	Rp87.000
6	87319-80G00-000 SUB: 87319B80G00N000	•SILENCER	1	Rp30.500
7	87480-55G00-000	•LOCK ASSY, REAR RH	1	-
8-1	87501-55G50-R9B	•ARMREST ASSY, REAR RH	1	-	TYPE 1
8-2	87501-55G60-AGU	•ARMREST ASSY, REAR RH	1	-	TYPE 2
9	87291-76F00-000	••BUSH, ARMREST	2	-
10	DISCONTINUE SUB: 87590-54G50-P4Z	••HOLDER ASSY, CUP (GRAY)	1	-
11	03241-0512A-000 SUB: 03242-05123-000	••SCREW	1	Rp3.500
12	87572-55G50-000	••BOLT, ARMREST	1	-
13	87576-55G50-000	••BRACKET, ARMREST	1	-
14	DISCONTINUE SUB: 08332-11086-000	••E RING	1	-
15	87571-55G50-P4Z	•COVER, ARMREST HINGE (GRAY)	1	-
16	09159-08075-000 SUB: 09159-08068-000	•NUT	2	Rp14.000
17	DISCONTINUE SUB: 87421-76G00-P4Z	•CLIP (GRAY)	0	-
18	01550-0820B-000	•BOLT	2	Rp3.500
19	09403-04306-000	•CLAMP	2	Rp24.000
20-1	87302-55G20-KJ3	BACK ASSY, REAR LH	1	-	TYPE 1
20-3	87302-55GS0-AJF	BACK ASSY, REAR LH	1	-	TYPE 2
20-2	87302-55GS0-KJ3	BACK ASSY, REAR LH	1	-	TYPE 1,2003-4%
21	DISCONTINUE SUB: 85341M81A00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
22	DISCONTINUE SUB: 85840-81A10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
23	87211-76G11-P4Z SUB: 87211-76G00-P4Z	•KNOB (GRAY)	1	Rp87.000
24	87319-80G00-000 SUB: 87319B80G00N000	•SILENCER	1	Rp30.500
25	87980-55G00-000	•LOCK ASSY, REAR LH	1	-
26	DISCONTINUE SUB: 87421-76G00-P4Z	•CLIP (GRAY)	0	-
27	01550-0820B-000	•BOLT	2	Rp3.500
28-1	DISCONTINUE SUB: 86401-55G10-R9B	HEADRESTRAINT ASSY, REAR	2	-	TYPE 1
28-2	86401-76G00-R9B	HEADRESTRAINT ASSY, REAR	2	-	TYPE 1,2003-4%
28-3	86401-76G00-S8C	HEADRESTRAINT ASSY, REAR	2	-	TYPE 2
29	87910-55G01-000	HINGE, REAR SIDE	2	-
30	01551-1025A-000 SUB: 01551-10253-000	BOLT	4	Rp29.000
31	08313-2010A-000 SUB: 08313-20103-000	NUT	2	Rp20.500
32	DISCONTINUE SUB: 87870-65G00-000	STRIKER, REAR BACK	2	-
33	01551-0820A-000 SUB: 01551-08203-000	BOLT	8	Rp17.500
34	87950-55G01-000	HINGE, REAR CENTER	1	-
35	09321M06026-000	•CUSHION	2	Rp4.500
36	87991-55G00-P4Z	COVER, REAR CENTER HINGE (GRAY)	1	-
37	01551-1025A-000 SUB: 01551-10253-000	BOLT	6	Rp29.000
38	87460-76G11-000 SUB: 87460-76G01-000	HOOK	2	Rp39.000
39	09409-10302-P4Z	CLIP (GRAY)	4	Rp19.500
40	01551-1025A-000 SUB: 01551-10253-000	BOLT	2	Rp29.000
