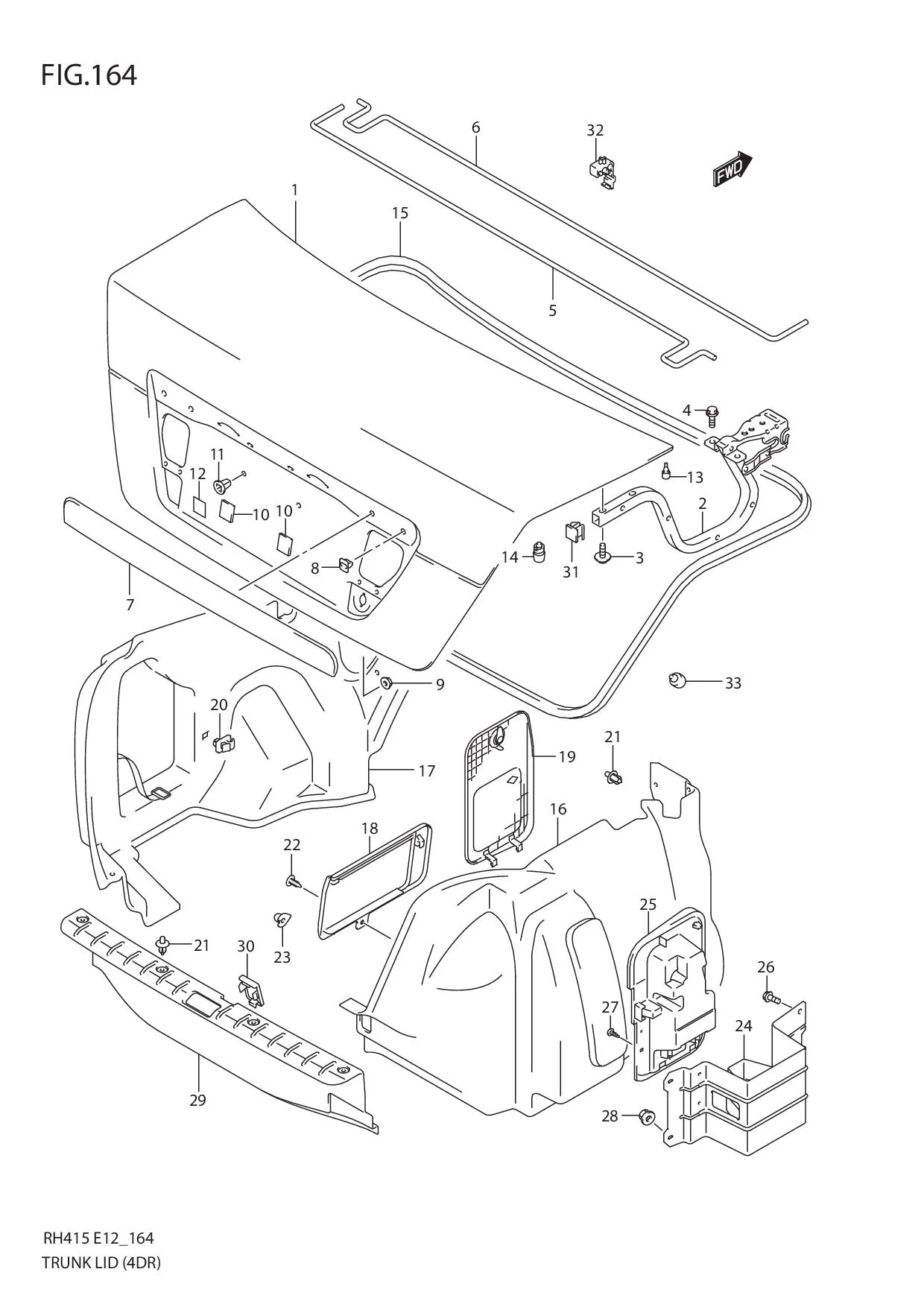

FIG.164 TRUNK LID (4DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 65700-55812-000	PANEL ASSY, TRUNK LID	1	-
2	DISCONTINUE SUB: 65810-55G01-000	HINGE, TRUNK LID	2	-
3	09116-06171-000	BOLT, HINGE (6X30)	4	Rp20.500
4-1	DISCONTINUE SUB: 09135-08007-000	BOLT, HINGE BRACKET (8X20)	6	-	TYPE 1
4-2	01551-0820A-000 SUB: 01551-08203-000	BOLT, HINGE BRACKET	6	Rp17.500	TYPE 2
5	DISCONTINUE SUB: 65831-55G01-000	BAR, HINGE TORSION RH	1	-
6	DISCONTINUE SUB: 65832-55G01-000	BAR, HINGE TORSION LH	1	-
7-6	77230-55G00-Z2U	GARNISH, TRUNK LID (BLUE)	1	-
7-9	77230-55G00-26U	GARNISH, TRUNK LID (WHITE)	1	-
7-8	DISCONTINUE SUB: 77230B55G00N0PG	GARNISH, TRUNK LID (SILVER/GRAY)	1	-
7-7	77230-55G00-Z5K	GARNISH, TRUNK LID (RED)	1	-
7-5	77230-55G00-Z2T	GARNISH, TRUNK LID (GREEN)	1	-
7-4	77230-55G00-Z2S	GARNISH, TRUNK LID (SILVER)	1	-
7-3	77230-55G00-ZJ3	GARNISH, TRUNK LID (BLACK)	1	Rp1.333.000
7-2	77230-55G00-ZE9	GARNISH, TRUNK LID (BLUE)	1	-
7-1	77230-55G00-ZA4	GARNISH, TRUNK LID (BEIGE)	1	-
8	09410-00076-000	CLIP, TRUNK LID	2	Rp16.000
9	08316-1006A-000 SUB: 08316-10063L000	NUT, TRUNK LID GARNISH	4	Rp2.000
10	44281-29C00-000 SUB: 44281B29C00N000	PAD, LICENSE PLATE	2	Rp6.000
11	09148-05035-000	NUT, LICENSE PLATE	2	Rp18.500
12	DISCONTINUE SUB: 84761-50X50-000	SEAL, LICENSE PLATE	2	-	CUT AS REQUIRED
13	77192-50E00-000	CUSHION, TRUNK LID FR	2	Rp31.500
14	82683-60B10-000	CUSHION, TRUNK LID RR	2	Rp33.500
15	84681-55G00-000	WEATHERSTRIP, TRUNK LID OPNG	1	Rp1.206.500
16-1	DISCONTINUE SUB: 76630-55G00-R2B	TRIM, SIDE RH (GRAY)	1	-	TYPE 1
16-2	76631-55GA0-R2B	TRIM, SIDE RH (GRAY)	1	-	TYPE 2
17	DISCONTINUE SUB: 76640-55G00-R2B	TRIM, SIDE LH (GRAY)	1	-
18	DISCONTINUE SUB: 76633-55G00-000	COVER, SIDE TRIM RH	1	-	TYPE 1
19	DISCONTINUE SUB: 76650-55GA0-5PK	LID, SIDE TRIM RH (BLACK)	1	-	TYPE 2
20	84851-65D00-P4Z	HOLDER, SIDE TRIM LH (GRAY)	1	-
21	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	13	Rp7.500
22	09409-10302-5PK	CLIP (BLACK)	1	Rp18.500	TYPE 1
23-2	36990-60B60-5PK	NUT, TRIM (BLACK)	9	Rp25.000	TYPE 2
23-1	36990-60B60-5PK	NUT, TRIM (BLACK)	8	Rp25.000	TYPE 1
24	76680-55GA0-000	BRACKET, JACK	1	-	TYPE 2
25	DISCONTINUE SUB: 76685-55GA0-000	COVER, JACK	1	-	TYPE 2
26	02162-0612B-000 SUB: 02162-06123-000	BOLT	2	Rp16.000	TYPE 2
27	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500	TYPE 2
28	08316-1006A-000 SUB: 08316-10063L000	NUT	2	Rp2.000	TYPE 2
29	DISCONTINUE SUB: 76661-55G00-000	TRIM, TRUNK ROOM REAR	1	-
30	DISCONTINUE SUB: 76662-55G00-000	CAP, TRUNK ROOM REAR TRIM	1	-
31	DISCONTINUE SUB: 76681-70C00-000	CAP, TRUNK LID HINGE END	2	-
32	DISCONTINUE SUB: 76691-79E00-000	HOLDER, TRUNK OPENER SPRING	1	-
33	DISCONTINUE SUB: 09321-05017-000	CUSHION	2	-
