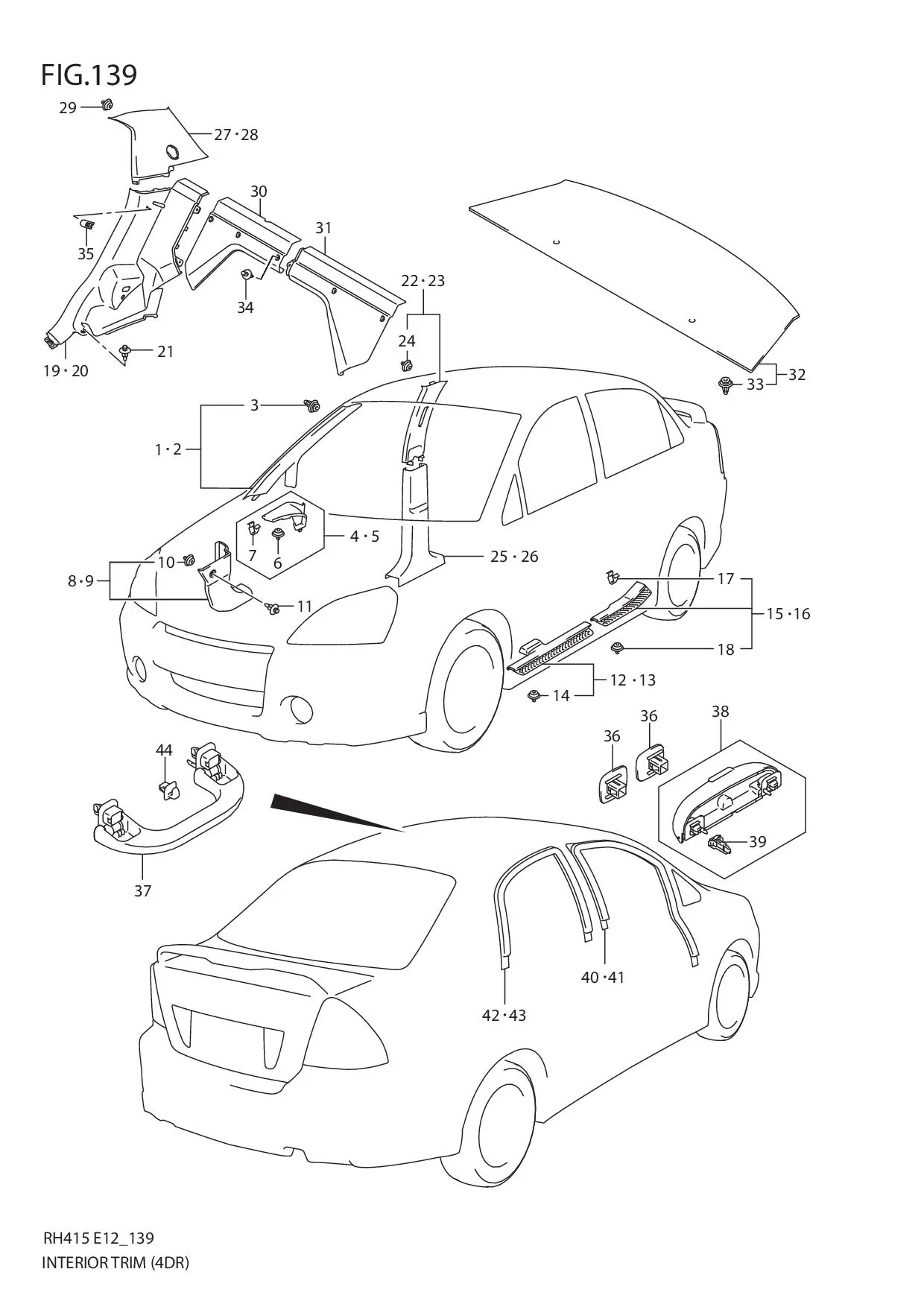

FIG.139 INTERRIOR TRIM (4DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 76111-54GA0-P7Z	TRIM, FRONT PILLAR RH (GRAY)	1	-	TYPE 2
1-1	DISCONTINUE SUB: 76111-54G02-P7Z	TRIM, FRONT PILLAR RH (GRAY)	1	-	TYPE 1
2-2	DISCONTINUE SUB: 76121-54GA0-P7Z	TRIM, FRONT PILLAR LH (GRAY)	1	-	TYPE 2
2-1	DISCONTINUE SUB: 76121-54G02-P7Z	TRIM, FRONT PILLAR LH (GRAY)	1	-	TYPE 1
3	DISCONTINUE SUB: 09409-10311-000	•CLIP	4	-
4-1	DISCONTINUE SUB: 76271-54G00-P4Z	GARNISH, FRONT PILLAR LOWER RH (GRAY)	1	-	TYPE 1
4-2	DISCONTINUE SUB: 76271-54GA0-P4Z	GARNISH, FRONT PILLAR LOWER RH (GRAY)	1	-	TYPE 2
5-1	DISCONTINUE SUB: 76281-54G00-P4Z	GARNISH, FRONT PILLAR LOWER LH (GRAY)	1	-	TYPE 1
5-2	DISCONTINUE SUB: 76281-54GA0-P4Z	GARNISH, FRONT PILLAR LOWER LH (GRAY)	1	-	TYPE 2
6	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	2	Rp9.500
7	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
8	DISCONTINUE SUB: 76131-54G00-P4Z	TRIM, DASH SIDE RH (GRAY)	1	-
9	DISCONTINUE SUB: 76141-54G00-P4Z	TRIM, DASH SIDE LH (GRAY)	1	-
10	DISCONTINUE SUB: 76216-76F20-000	•CLIP	2	-
11	DISCONTINUE SUB: 09409-07321-P4Z	CLIP (GRAY)	2	-
12	76151-54G00-P4Z	SCUFF, SIDE SILL FR RH (GRAY)	1	Rp286.500
13	DISCONTINUE SUB: 76161-54G00-P4Z	SCUFF, SIDE SILL FR LH (GRAY)	1	-
14	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	2	Rp9.500
15	DISCONTINUE SUB: 76152-54G00-P4Z	SCUFF, SIDE SILL RR RH (GRAY)	1	-
16	76162-54G00-P4Z	SCUFF, SIDE SILL RR LH (GRAY)	1	Rp532.500
17	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
18	76142-76G00-000 SUB: 76142B76G00N000	•CLIP	2	Rp9.500
19	DISCONTINUE SUB: 76170-55G00-P4Z	TRIM, REAR SEAT BACK SIDE RH (GRAY)	1	-
20	DISCONTINUE SUB: 76180-55G00-P4Z	TRIM, REAR SEAT BACK SIDE LH (GRAY)	1	-
21	09409M07308-P4Z	CLIP (GRAY)	8	Rp7.500
22	DISCONTINUE SUB: 76211-54G01-P7Z	TRIM, CTR PILLAR INNER UPPER RH (GRAY)	1	-
23	DISCONTINUE SUB: 76221-54G01-P7Z	TRIM, CTR PILLAR INNER UPPER LH (GRAY)	1	-
24	DISCONTINUE SUB: 09409-10311-000	•CLIP	2	-
25-1	DISCONTINUE SUB: 76231-54G00-P4Z	TRIM, CTR PILLAR INNER LOWER RH (GRAY)	1	-
25-2	DISCONTINUE SUB: 76231-54G01-P4Z	TRIM, CTR PILLAR INNER LOWER RH (GRAY)	1	-	2003-10%
26	DISCONTINUE SUB: 76241-54G01-P4Z	TRIM, CTR PILLAR INNER LOWER LH (GRAY)	1	-
27	DISCONTINUE SUB: 76250-55G00-FL2	TRIM, RR PILLAR INNER RH (GRAY	1	-
28	DISCONTINUE SUB: 76260-55G00-FL2	TRIM, RR PILLAR INNER LH (GRAY	1	-
29	DISCONTINUE SUB: 76216-76F20-000	•CLIP	12	-
30	DISCONTINUE SUB: 76281-55G00-P4Z	TRIM, PARTITION FR RH (GRAY)	1	-
31	DISCONTINUE SUB: 76282-55G00-P4Z	TRIM, PARTITION FR LH (GRAY)	1	-
32	DISCONTINUE SUB: 76290-55G00-R3L	TRIM, PARTITION (GRAY)	1	-
33	DISCONTINUE SUB: 09409-08310-000	•CLIP	10	-
34	09409M07308-P4Z	CLIP (GRAY)	5	Rp7.500
35	84961-65G00-6GS	HOOK, REAR SEAT BELT (GRAY)	2	-
36	76412-55G00-6GS	CAP, ROOF LINING (GRAY)	2	Rp31.000	TYPE 1
37	76410-55G02-6GS SUB: 76410-55G01-6GS	GRIP, ASSISTANT (GRAY)	3	Rp255.500
38	DISCONTINUE SUB: 76440-54G00-6GS	HOLDER, SUNGLASSES (GRAY)	1	-	TYPE 2
39	76418-55G00-6GS	•CAP (GRAY)	2	-	TYPE 2
40	76291-54G01-000	TRIM, FRONT DOOR OPENING RH	1	Rp1.068.000
41	DISCONTINUE SUB: 76292-54G01-000	TRIM, FRONT DOOR OPENING LH	1	-
42	DISCONTINUE SUB: 76295-55G00-000	TRIM, REAR DOOR OPENING RH	1	-
43	DISCONTINUE SUB: 76296-55G00-000	TRIM, REAR DOOR OPENING LH	1	-
44	DISCONTINUE SUB: 76413-55G00-6GS	HOOK, COAT HANGER (GRAY)	2	-
