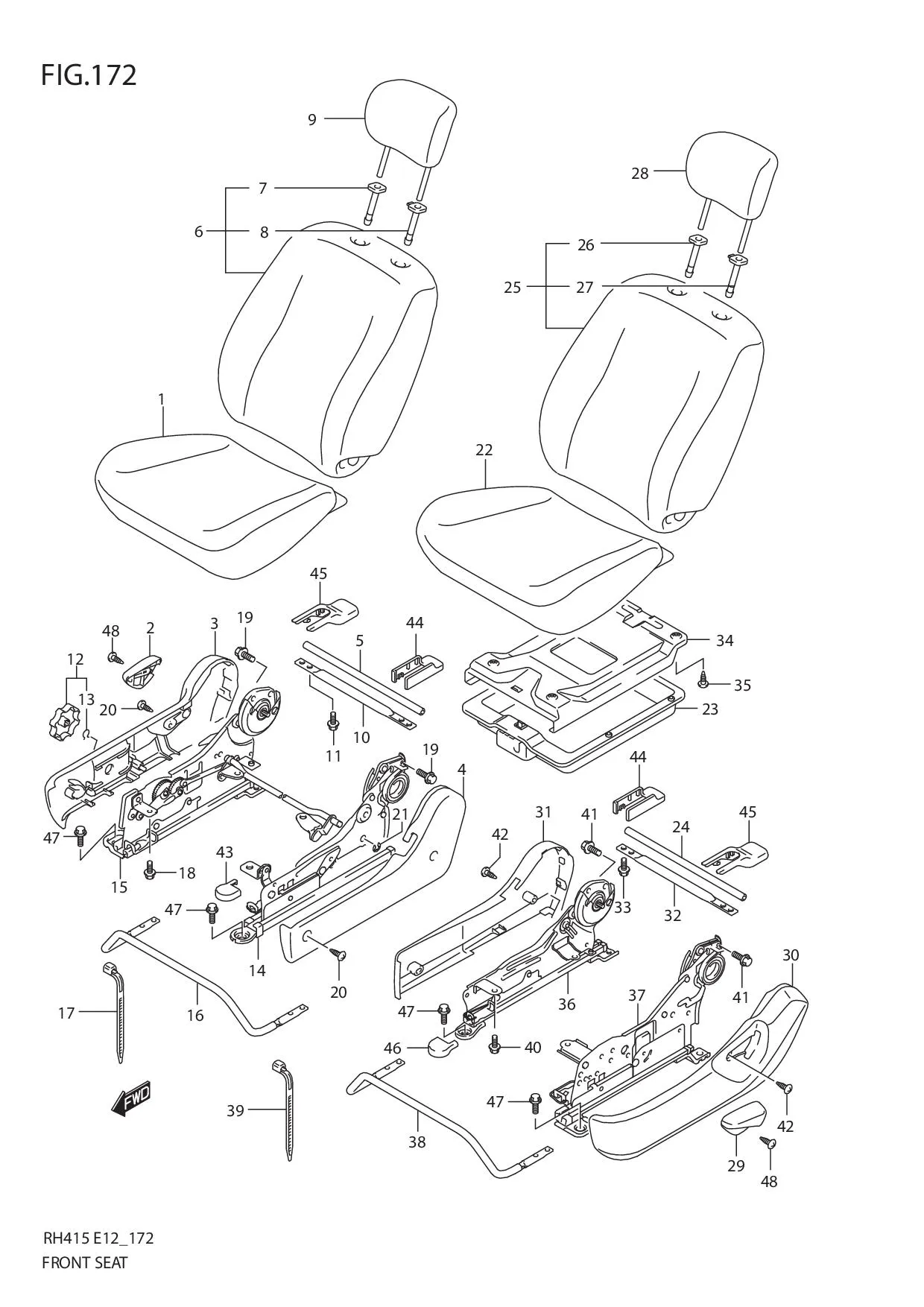

FIG.172 FRONT SEAT

FIG.172 FRONT SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 85101-54G11-KJ3 CUSHION ASSY, FRONT RH 1 - 4DR:TYPE 1:N/SKIRT
1-1 DISCONTINUE
SUB: 85101-54G10-KJ3		 CUSHION ASSY, FRONT RH 1 - 4DR:TYPE 1:W/SKIRT
1-6 85101-54GU0-AGS CUSHION ASSY, FRONT RH 1 - TYPE 2
1-5 85101-54GU0-LP8 CUSHION ASSY, FRONT RH 1 - 5DR:TYPE 1,2003-4%
1-3 85101-54GU0-KJ3 CUSHION ASSY, FRONT RH 1 - 4DR:TYPE 1,2003-4%
1-4 85101-54G10-LP8 CUSHION ASSY, FRONT RH 1 - 5DR:TYPE 1
2 85211-54G02-P4Z KNOB, RECLINING RH (GRAY) 1 -
3 85221-54G10-P4Z COVER, RECLINING OUTSIDE RH (GRAY) 1 -
4 85241-54G00-P4Z COVER, RECLINING INSIDE RH (GRAY) 1 -
5 85250-80G00-000 ROD, FRONT ADJUSTER 1 -
6-1 85301-54G10-KJ3 BACK ASSY, FRONT RH 1 - 4DR:TYPE 1
6-2 85301-54G10-KJ3 BACK ASSY, FRONT RH 1 - 4DR:TYPE 1,2003-4%
6-3 85301-54G10-LP8 BACK ASSY, FRONT RH 1 - 5DR:TYPE 1
6-4 85301-54GS0-LP8 BACK ASSY, FRONT RH 1 - 5DR:TYPE 1,2003-4%
6-5 85301-54GS0-AGS BACK ASSY, FRONT RH 1 - TYPE 2
7 DISCONTINUE
SUB: 85341M81A00-P4Z		 •GUIDE HEADRESTRAINT (GRAY) 1 -
8 DISCONTINUE
SUB: 85840-81A10-P4Z		 •GUIDE HEADRESTRAINT (GRAY) 1 -
9-4 86401-76G00-GA3 HEADRESTRAINT ASSY 1 - 5DR:TYPE 1,2003-4%
9-5 86401-76G00-S8C HEADRESTRAINT ASSY 1 - TYPE 2
9-2 86401-76G00-R9B HEADRESTRAINT ASSY 1 - 4DR:TYPE 1,2003-4%
9-1 DISCONTINUE
SUB: 86401-54G00-R9B		 HEADRESTRAINT ASSY 1 - 4DR:TYPE 1
9-3 DISCONTINUE
SUB: 86401-54G00-GA3		 HEADRESTRAINT ASSY 1 - 5DR:TYPE 1
10 85771-78F00-000 MEMBER, FRONT 1 -
11 01550-0816A-000
SUB: 01550M08163-000		 BOLT, FRONT MEMBER 2 Rp6.000
12 DISCONTINUE
SUB: 86170-80G00-P4Z		 KNOB, LIFTER (GRAY) 1 -
13 78463-78000-000 •SNAP 1 Rp17.000
14 DISCONTINUE
SUB: 86601-54G11-000		 ADJUSTER, FRONT INSIDE RH 1 -
15 DISCONTINUE
SUB: 86603-54G12-000		 ADJUSTER, FRONT OUTSIDE RH 1 -
16 86691-80G00-000 HANDLE, FRONT ADJUSTER RH 1 -
17 36990-25G00-000
SUB: 09407-14403L000		 CLAMP (L:125) 2 Rp13.000
18 01550-0812A-000
SUB: 01550B08123N000		 BOLT, FRONT CUSHION 4 Rp3.500
19 01550-1020A-000
SUB: 01550-10203-000		 BOLT, FRONT BACK 4 Rp22.000
20 03241-0508A-000
SUB: 03241-05083-000		 SCREW, COVER 3 Rp10.500
21 08332-1110A-000
SUB: 08332-11126-000		 E RING 1 Rp13.500
22-5 85101-54GS0-AGS CUSHION ASSY, FRONT LH 1 - TYPE 2
22-4 85101-54GS0-LP8 CUSHION ASSY, FRONT LH 1 - 5DR:TYPE 1,2003-4%
22-3 85101-54G00-LP8 CUSHION ASSY, FRONT LH 1 - 5DR:TYPE 1
22-1 85101-54G00-KJ3 CUSHION ASSY, FRONT LH 1 - 4DR:TYPE 1
22-2 85101-54GS0-KJ3 CUSHION ASSY, FRONT LH 1 - 4DR:TYPE 1,2003-4%
23 DISCONTINUE
SUB: 85150-80G10-000		 TRAY ASSY, FRONT 1 - W/UNDER TRAY
24 85250-80G00-000 ROD, FRONT ADJUSTER 1 -
25-1 85301-54G00-KJ3 BACK ASSY, FRONT LH 1 - 4DR:TYPE 1
25-2 85301-54G10-KJ3 BACK ASSY, FRONT LH 1 - 4DR:TYPE 1,2003-4%
25-3 85301-54G00-LP8 BACK ASSY, FRONT LH 1 - 5DR:TYPE 1
25-4 85301-54GS0-LP8 BACK ASSY, FRONT LH 1 - 5DR:TYPE 1,2003-4%
25-5 85301-54GS0-AGS BACK ASSY, FRONT LH 1 - TYPE 2
26 DISCONTINUE
SUB: 85341M81A00-P4Z		 •GUIDE HEADRESTRAINT (GRAY) 1 -
27 DISCONTINUE
SUB: 85840-81A10-P4Z		 •GUIDE HEADRESTRAINT (GRAY) 1 -
28-1 DISCONTINUE
SUB: 86401-54G00-R9B		 HEADRESTRAINT ASSY 1 - 4DR:TYPE 1
28-2 86401-76G00-R9B HEADRESTRAINT ASSY 1 - 5DR:TYPE 1,2003-4%
28-3 DISCONTINUE
SUB: 86401-54G00-GA3		 HEADRESTRAINT ASSY 1 - 5DR:TYPE 1
28-4 86401-76G00-GA3 HEADRESTRAINT ASSY 1 - 5DR:TYPE 1,2003-4%
28-5 86401-76G00-S8C HEADRESTRAINT ASSY 1 - TYPE 2
29 85711-54G02-P4Z KNOB, RECLINING LH (GRAY) 1 -
30 85721-54G00-P4Z COVER, RECLINING OUTSIDE LH (GRAY) 1 -
31 DISCONTINUE
SUB: 85741-54G00-P4Z		 COVER, RECLINING INSIDE LH (GRAY) 1 -
32 85771-78F00-000 MEMBER, FRONT 1 -
33 01550-0816A-000
SUB: 01550M08163-000		 BOLT, FRONT MEMBER 2 Rp6.000
34 DISCONTINUE
SUB: 86521-65DA0-000		 BRACKET, UNDER TRAY 1 -
35 03241-0512A-000
SUB: 03242-05123-000		 SCREW, UNDER TRAY 4 Rp3.500
36 86602-54G01-000 ADJUSTER, FRONT INSIDE LH 1 -
37 DISCONTINUE
SUB: 86604-54G02-000		 ADJUSTER, FRONT OUTSIDE LH 1 -
38 86891-80G00-000 HANDLE, FRONT ADJUSTER LH 1 -
39 36990-25G00-000
SUB: 09407-14403L000		 CLAMP (L:125) 2 Rp13.000
40 01550-0812A-000
SUB: 01550B08123N000		 BOLT, FRONT CUSHION 4 Rp3.500
41 01550-1020A-000
SUB: 01550-10203-000		 BOLT, FRONT BACK 4 Rp22.000
42 03241-0508A-000
SUB: 03241-05083-000		 SCREW, COVER 3 Rp10.500
43 DISCONTINUE
SUB: 85491-65DA0-P4Z		 COVER, FRONT INSIDE RH (GRAY) 1 -
44 85495-65DA0-P4Z COVER, REAR INSIDE (GRAY) 2 Rp63.500
45 DISCONTINUE
SUB: 85496-76G00-P4Z		 COVER, REAR OUTSIDE (GRAY) 2 -
46 85492-65DA0-P4Z COVER, FRONT INSIDE (GRAY) 1 Rp51.500
47 01551-1025A-000
SUB: 01551-10253-000		 BOLT 8 Rp29.000
48 03221-0410A-000 SCREW, RECLINING KNOB 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
