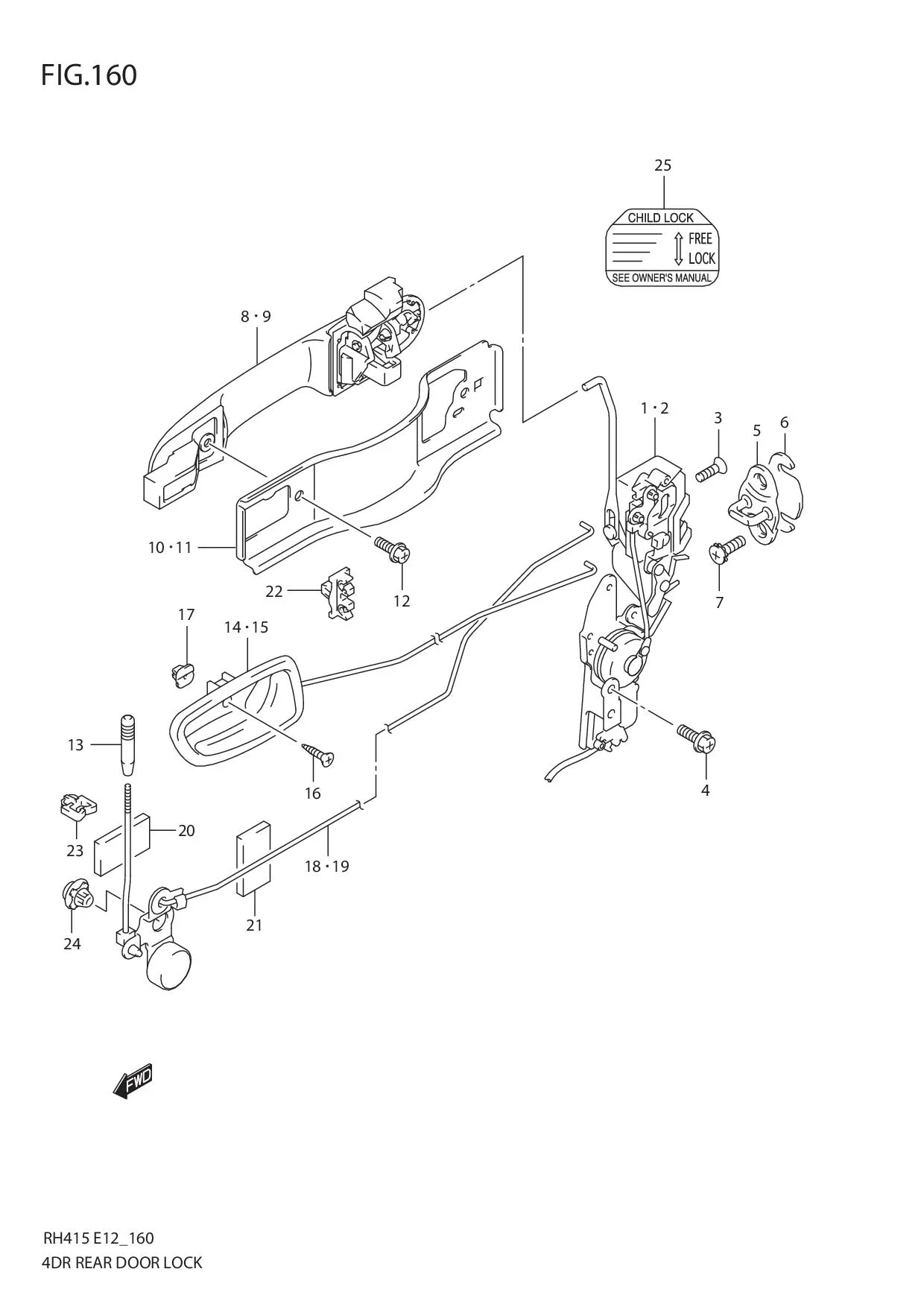

FIG.160 DR REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	82301-54GA0-000	LATCH ASSY, REAR DOOR RH	1	Rp3.191.000	2003-10%
1-1	82301-54GA0-000 SUB: 82301-54G01-000	LATCH ASSY, REAR DOOR RH	1	Rp3.191.000
2-2	DISCONTINUE SUB: 82302-54GA0-000	LATCH ASSY, REAR DOOR LH	1	-	2003-10%
2-1	DISCONTINUE SUB: 82302-54G01-000	LATCH ASSY, REAR DOOR LH	1	-
3	09137-06028-000	SCREW (6X19)	6	Rp18.500
4	02162-0612B-000 SUB: 02162-06123-000	SCREW	2	Rp16.000
5	DISCONTINUE SUB: 82610-72B11-000	STRIKER, DOOR LATCH	2	-
6	78199M78000-000	SPACER	0	Rp8.000
7	09137-08014-000 SUB: 09137-08006-000	SCREW (8X18)	4	Rp23.000
8-4	82830-54G10-Z2S	HANDLE, DOOR OUT RH (SILVER)	1	-
8-9	82830-54G10-26U	HANDLE, DOOR OUT RH (WHITE)	1	-
8-8	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT RH (LOCAL COLOR)	1	-
8-7	82830-54G10-Z5K	HANDLE, DOOR OUT RH (RED)	1	-
8-6	82830-54G10-Z2U	HANDLE, DOOR OUT RH (BLUE)	1	-
8-5	82830-54G10-Z2T	HANDLE, DOOR OUT RH (GREEN)	1	-
8-3	82830-54G10-ZJ3	HANDLE, DOOR OUT RH (BLACK)	1	-
8-2	82830-54G10-ZE9	HANDLE, DOOR OUT RH (BLUE)	1	-
8-1	82830-54G10-ZA4	HANDLE, DOOR OUT RH (BEIGE)	1	-
9-9	82840-54G10-26U	HANDLE, DOOR OUT LH (WHITE)	1	-
9-8	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT LH (LOCAL COLOR)	1	-
9-7	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT LH (RED)	1	-
9-6	DISCONTINUE SUB: 82830B54G10N000	HANDLE, DOOR OUT LH (BLUE)	1	-
9-4	82840-54G10-Z2S	HANDLE, DOOR OUT LH (SILVER)	1	-
9-3	82840-54G10-ZJ3	HANDLE, DOOR OUT LH (BLACK)	1	-
9-2	82840-54G10-ZE9	HANDLE, DOOR OUT LH (BLUE)	1	-
9-1	82840-54G10-ZA4	HANDLE, DOOR OUT LH (BEIGE)	1	-
9-5	82840-54G10-Z2T	HANDLE, DOOR OUT LH (GREEN)	1	-
10	82931-54G02-000	REINF, DOOR OUT RH	1	-
11	82941-54G02-000	REINF, DOOR OUT LH	1	-
12	02162-0612B-000 SUB: 02162-06123-000	SCREW	4	Rp16.000
13-1	82982M65D00-P4Z	KNOB, DOOR INSIDE LOCK (GRAY)	2	Rp7.500	TYPE 1
13-2	82982-70H00-0PG	KNOB, DOOR INSIDE LOCK (CHROME)	2	Rp71.000	TYPE 2
14-1	DISCONTINUE SUB: 83103-54G00-P4Z	HANDLE, DOOR INSIDE RH (GRAY)	1	-	TYPE 1
14-2	DISCONTINUE SUB: 83103-54G10-JA8	HANDLE, DOOR INSIDE RH (SILVER/GRAY)	1	-	TYPE 2
15-1	DISCONTINUE SUB: 83104-54G00-P4Z	HANDLE, DOOR INSIDE LH (GRAY)	1	-	TYPE 1
15-2	DISCONTINUE SUB: 83104-54G10-JA8	HANDLE, DOOR INSIDE LH (SILVER/GRAY)	1	-	TYPE 2
16	03521M0516B-000 SUB: 03521-05163-000	SCREW	2	Rp5.000
17	09148-05031-000	NUT	2	Rp18.000
18	DISCONTINUE SUB: 83270-54G00-000	ROD, REAR DOOR INSIDE LOCK RH	1	-
19	DISCONTINUE SUB: 83280-54G00-000	ROD, REAR DOOR INSIDE LOCK LH	1	-
20	77591M75000-000	PAD	2	Rp7.000
21	83211-54G00-000	PAD	2	-
22	83271M50E00-000	CLIP	2	Rp6.500
23	DISCONTINUE SUB: 09403-07324-000	CLIP	2	-
24	83261-54G00-000	PIN, INSIDE LOCK LINK	2	Rp29.000
25	DISCONTINUE SUB: 82491-56B00-000	CAUTION PLATE, CHILD LOCK	2	-
