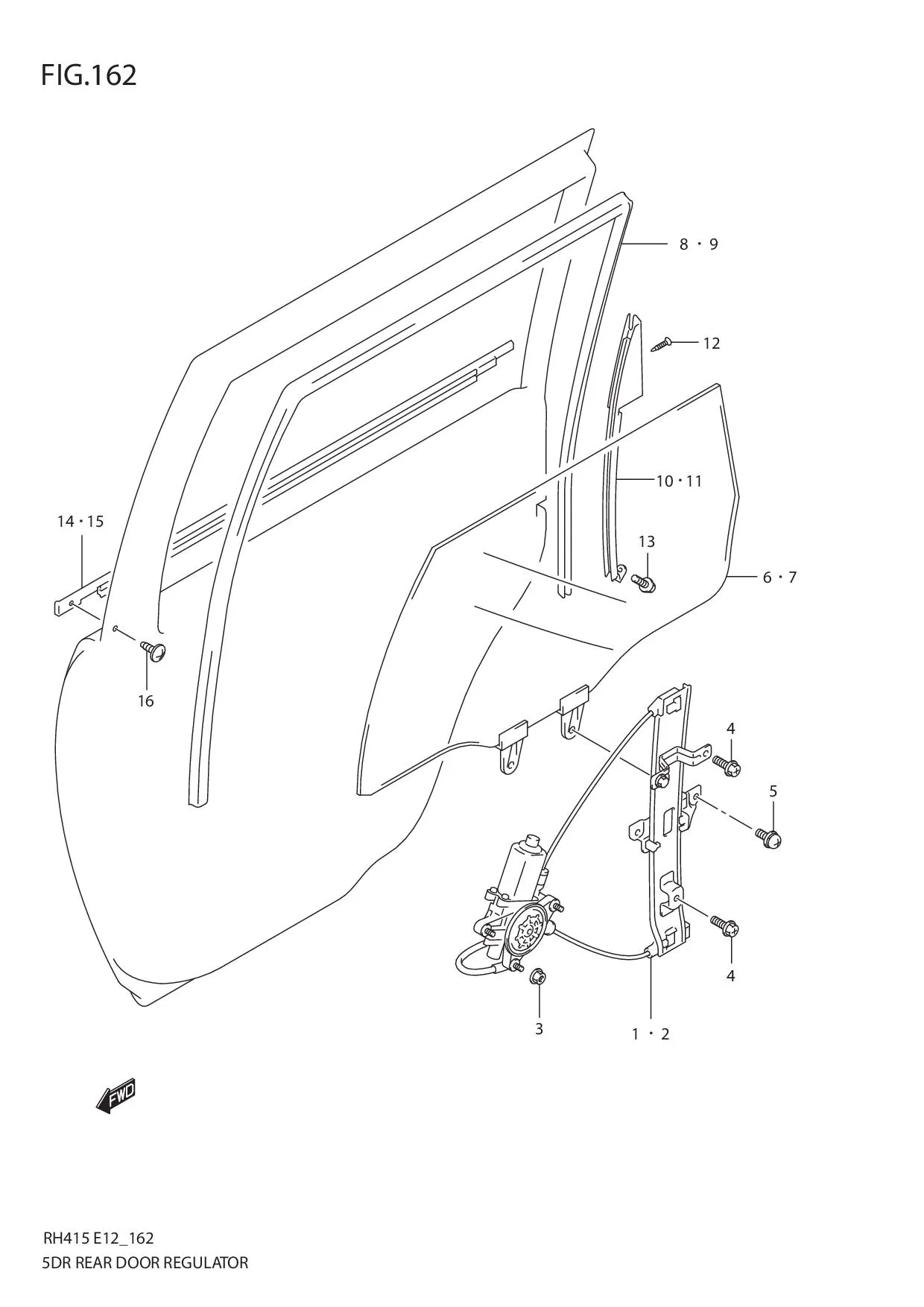

FIG.162 5DR REAR DOOR REGULATOR

FIG.162 5DR REAR DOOR REGULATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	83501-54GA0-000	REGULATOR ASSY, REAR WINDOW RH	1	Rp4.183.500	2003-10%
1-1	83501-54GA0-000 SUB: 83501-54G00-000	REGULATOR ASSY, REAR WINDOW RH	1	Rp4.183.500	!83501-54GA0 USED WITH 02112-76123 (2PCS)
2-1	DISCONTINUE SUB: 83502-54G00-000	REGULATOR ASSY, REAR WINDOW LH	1	-	!83502-54GA0 USED WITH 02112-76123 (2PCS)
2-2	DISCONTINUE SUB: 83502-54GA0-000	REGULATOR ASSY, REAR WINDOW LH	1	-	2003-10%
3	08361-1506A-000 SUB: 08361-15063-000	NUT	6	Rp13.000
4	02162-0612B-000 SUB: 02162-06123-000	BOLT	4	Rp16.000
5-1	02112M7610A-000 SUB: 02112-76103-000	SCREW, GLASS BOTTOM	4	Rp5.500
5-2	02112M7612A-000 SUB: 02112-76123-000	SCREW, GLASS BOTTOM	4	Rp5.500	2003-10%
6	DISCONTINUE SUB: 84503B54G00N000	GLASS, REAR WINDOW RH	1	-
7	DISCONTINUE SUB: 84504B54G00N000	GLASS, REAR WINDOW LH	1	-
8	DISCONTINUE SUB: 83671-54G00-000	RUN, REAR DOOR GLASS RH	1	-
9	DISCONTINUE SUB: 83675-54G00-000	RUN, REAR DOOR GLASS LH	1	-
10	DISCONTINUE SUB: 81770-54G00-000	SASH, REAR DOOR REAR RH	1	-
11	DISCONTINUE SUB: 81780-54G00-000	SASH, REAR DOOR REAR LH	1	-
12	DISCONTINUE SUB: 03121M04123-000	SCREW	4	-
13	02162-0612B-000 SUB: 02162-06123-000	SCREW	2	Rp16.000
14	83831-54G00-000	WEATHERSTRIP, RR DOOR OUTER RH	1	Rp557.500
15	83841-54G00-000	WEATHERSTRIP, RR DOOR OUTER LH	1	Rp557.500
16	DISCONTINUE SUB: 09136-05059-000	SCREW (5X12)	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
