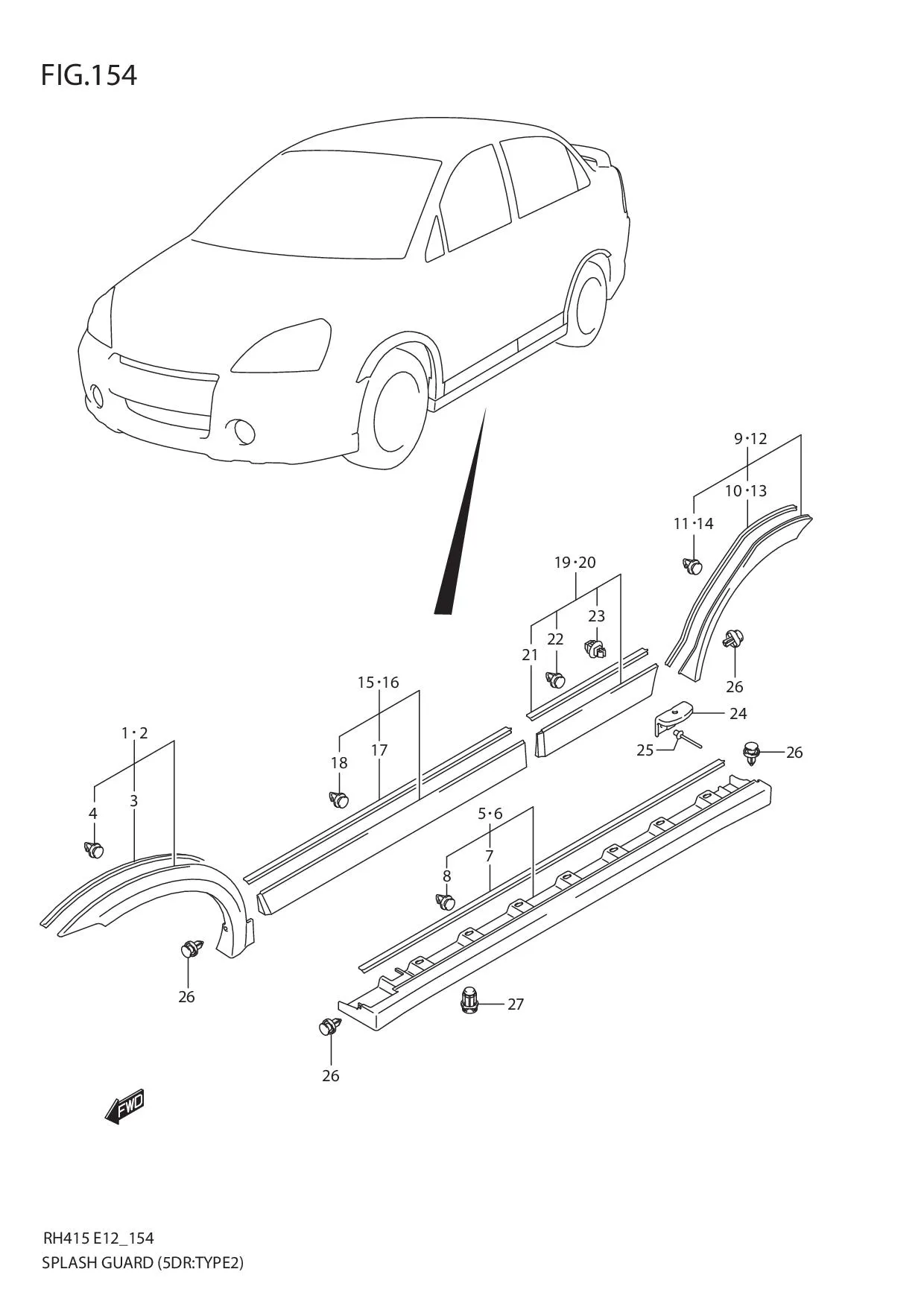

FIG.154 SPLASH GUARD (5DR:TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 77180-54G51-ZXA	GUARD, FRONT SPLASH RH (LOCAL COLOR)	1	-
2	DISCONTINUE SUB: 77190-54G51-ZXA	GUARD, FRONT SPLASH LH (LOCAL COLOR)	1	-
3	DISCONTINUE SUB: 77182-54G51-ZJ3	•PROTECTOR, GUARD EDGE (LOCAL COLOR)	2	-
4	77259-71B00-000	•CLIP	10	Rp25.500
5	DISCONTINUE SUB: 77210-54G50-ZXA	GUARD, SIDE SPLASH RH (LOCAL COLOR)	1	-
6	DISCONTINUE SUB: 77220-54G50-ZXA	GUARD, SIDE SPLASH LH (LOCAL COLOR)	1	-
7	DISCONTINUE SUB: 77212-54G50-ZXA	•PROTECTOR, GUARD EDGE (LOCAL COLOR)	2	-
8	77259-71B00-000	•CLIP	14	Rp25.500
9	77231E54G50-031 SUB: 77230-54G51-ZXA	GUARD, RR SPLASH RH (LOCAL COLOR)	1	Rp123.000
10	DISCONTINUE SUB: 77232-54G51-ZXA	•PROTECTOR, GUARD EDGE (LOCAL COLOR)	1	-
11	77259-71B00-000	•CLIP	3	Rp25.500
12	77241E54G50-031 SUB: 77240-54G51-ZXA	GUARD, RR SPLASH LH (LOCAL COLOR)	1	Rp242.500
13	DISCONTINUE SUB: 77242-54G51-ZXA	•PROTECTOR, GUARD EDGE (LOCAL COLOR)	1	-
14	77259-71B00-000	•CLIP	3	Rp25.500
15	77251E54G50-031 SUB: 77250-54G51-ZXA	GUARD, FR DOOR SPLASH RH (LOCAL COLOR)	1	Rp244.500
16	77261E54G50-031 SUB: 77260-54G51-ZXA	GUARD, FR DOOR SPLASH LH (LOCAL COLOR)	1	Rp244.500
17	DISCONTINUE SUB: 77252-54G51-ZXA	•PROTECTOR, GUARD EDGE (LOCAL COLOR)	2	-
18	77259-71B00-000	•CLIP	18	Rp25.500
19	77271E54G50-031 SUB: 77270-54G51-ZXA	GUARD, RR DOOR SPLASH RH (LOCAL COLOR)	1	Rp162.000
20	77281E54G50-031 SUB: 77280-54G51-ZXA	GUARD, RR DOOR SPLASH LH (LOCAL COLOR)	1	Rp162.000
21	DISCONTINUE SUB: 77272-54G51-ZXA	•PROTECTOR, GUARD EDGE (LOCAL COLOR)	2	-
22	77259-71B00-000	•CLIP	12	Rp25.500
23	77553-65D10-000	•CLIP	2	Rp32.500
24	77215-54G50-000	BRACKET, SIDE SILL SPLASH	2	-
25	DISCONTINUE SUB: 09229-04044-000	RIVET, SIDE SILL SPLASH	4	-
26	09409M07L01-000 SUB: 09409M07332-000	CLIP, FR FENDER SPLASH	12	Rp5.000
27	09409-15302-000	CLIP, SIDE SILL SPLASH	14	Rp15.000
