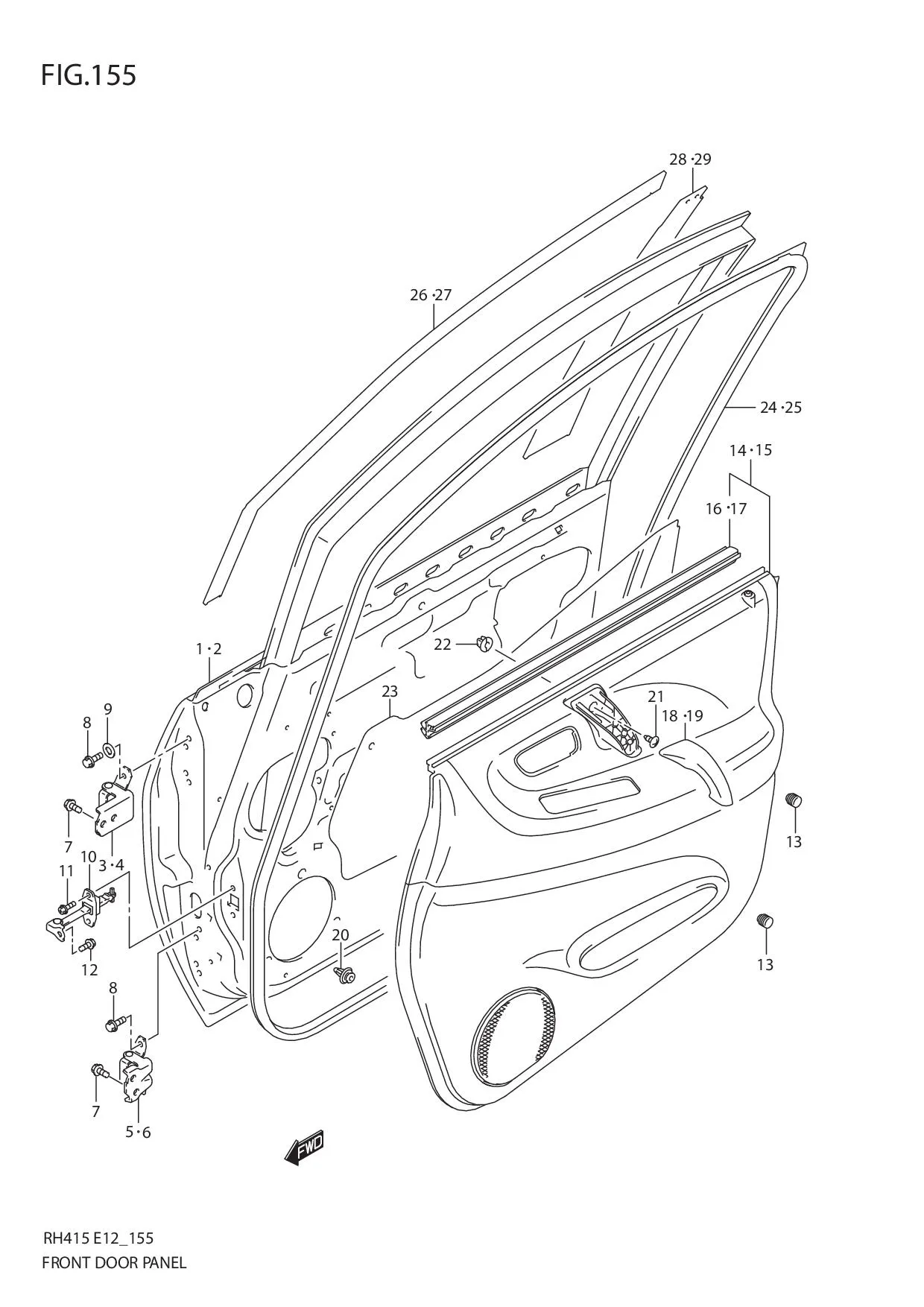

FIG.155 FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 68001-54GA0-000	PANEL ASSY, FRONT DOOR RH	1	-	TYPE 2:4DR
1-1	DISCONTINUE SUB: 68001-54811-000	PANEL ASSY, FRONT DOOR RH	1	-	TYPE 1
1-3	DISCONTINUE SUB: 68001-54821-000	PANEL ASSY, FRONT DOOR RH	1	-	TYPE 2:5DR
2-1	DISCONTINUE SUB: 68002-54811-000	PANEL ASSY, FRONT DOOR LH	1	-	TYPE 1
2-2	DISCONTINUE SUB: 68002-54GA0-000	PANEL ASSY, FRONT DOOR LH	1	-	TYPE 2:4DR
2-3	DISCONTINUE SUB: 68002-54821-000	PANEL ASSY, FRONT DOOR LH	1	-	TYPE 2:5DR
3	DISCONTINUE SUB: 69310-54G00-000	HINGE, FRONT DOOR UPPER RH	1	-
4	DISCONTINUE SUB: 69320-54G00-000	HINGE, FRONT DOOR UPPER LH	1	-
5	DISCONTINUE SUB: 69330-54G00-000	HINGE, FRONT DOOR LOWER RH	1	-
6	DISCONTINUE SUB: 69340-54G00-000	HINGE, FRONT DOOR LOWER LH	1	-
7	01551-0820A-000 SUB: 01551-08203-000	BOLT, PILLAR	8	Rp17.500
8	09103M08557-000 SUB: 09103M08389-000	BOLT, DOOR (8X24)	8	Rp8.500
9	DISCONTINUE SUB: 69480-65D00-000	WASHER	4	-
10	81810-54G04-000 SUB: 81810-54G00-000	STOP, DOOR OPEN	2	Rp447.500
11	09122-86004-000	SCREW, OPEN STOP (6X20)	4	Rp15.000
12	09112-08004-000	BOLT, OPEN STOP BODY (8X25)	2	Rp26.000
13	82711M70F00-000 SUB: 82711M56B00-000	STOPPER, DOOR	4	Rp8.500
14-3	DISCONTINUE SUB: 83710-54GA0-AGU	TRIM, FRONT DOOR RH	1	-	TYPE 2
14-1	DISCONTINUE SUB: 83710-54G00-KJ4	TRIM, FRONT DOOR RH	1	-	TYPE 1:4DR
14-2	DISCONTINUE SUB: 83710-54G00-FJ5	TRIM, FRONT DOOR RH	1	-	TYPE 1:5DR
15-1	DISCONTINUE SUB: 83720-54G00-KJ4	TRIM, FRONT DOOR LH	1	-	TYPE 1:4DR
15-2	DISCONTINUE SUB: 83720-54G00-FJ5	TRIM, FRONT DOOR LH	1	-	TYPE 1:5DR
15-3	DISCONTINUE SUB: 83720-54GA0-AGU	TRIM, FRONT DOOR LH	1	-	TYPE 2
16	83719-54G00-000	•WEATHERSTRIP, DOOR INNER RH	1	Rp465.000
17	83729-54G00-000	•WEATHERSTRIP, DOOR INNER LH	1	Rp465.000
18	83715-54G00-P4Z	COVER, DOOR GRIP RH (GRAY)	1	Rp109.000
19	83725-54G00-P4Z	COVER, DOOR GRIP LH (GRAY)	1	Rp109.000
20-2	09409-10327-000 SUB: 09409B10312N000	CLIP	16	Rp5.000	TYPE 2
20-1	83714M62B00-000 SUB: 09409M08320-000	CLIP	16	Rp14.500	TYPE 1
21	03241-0616C-000 SUB: 03242-06163-000	SCREW, GRIP	4	Rp17.000
22	71851M70F00-000 SUB: 09148M06007-000	NUT, GRIP	4	Rp4.000
23	83911-60X52-000 SUB: 83911-60X51-000	COVER, DOOR SEALING (600X1200)	2	Rp111.000	CUT AS REQUIRED
24	84641-54G00-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp1.290.000
25	84651-54G00-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp1.290.000
26	DISCONTINUE SUB: 83921-54G01-0CB	TAPE, SASH ROOF RH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
27	83922-54G01-0CB	TAPE, SASH ROOF LH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
28	DISCONTINUE SUB: 83923-54G01-0CB	TAPE, SASH PILLAR RH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
29	DISCONTINUE SUB: 83924-54G01-0CB	TAPE, SASH PILLAR RH (BLACK)	1	-	BODY COLOR:ZA4,ZE9,Z2S,Z2T,Z2U,Z5K,ZXA,26U
