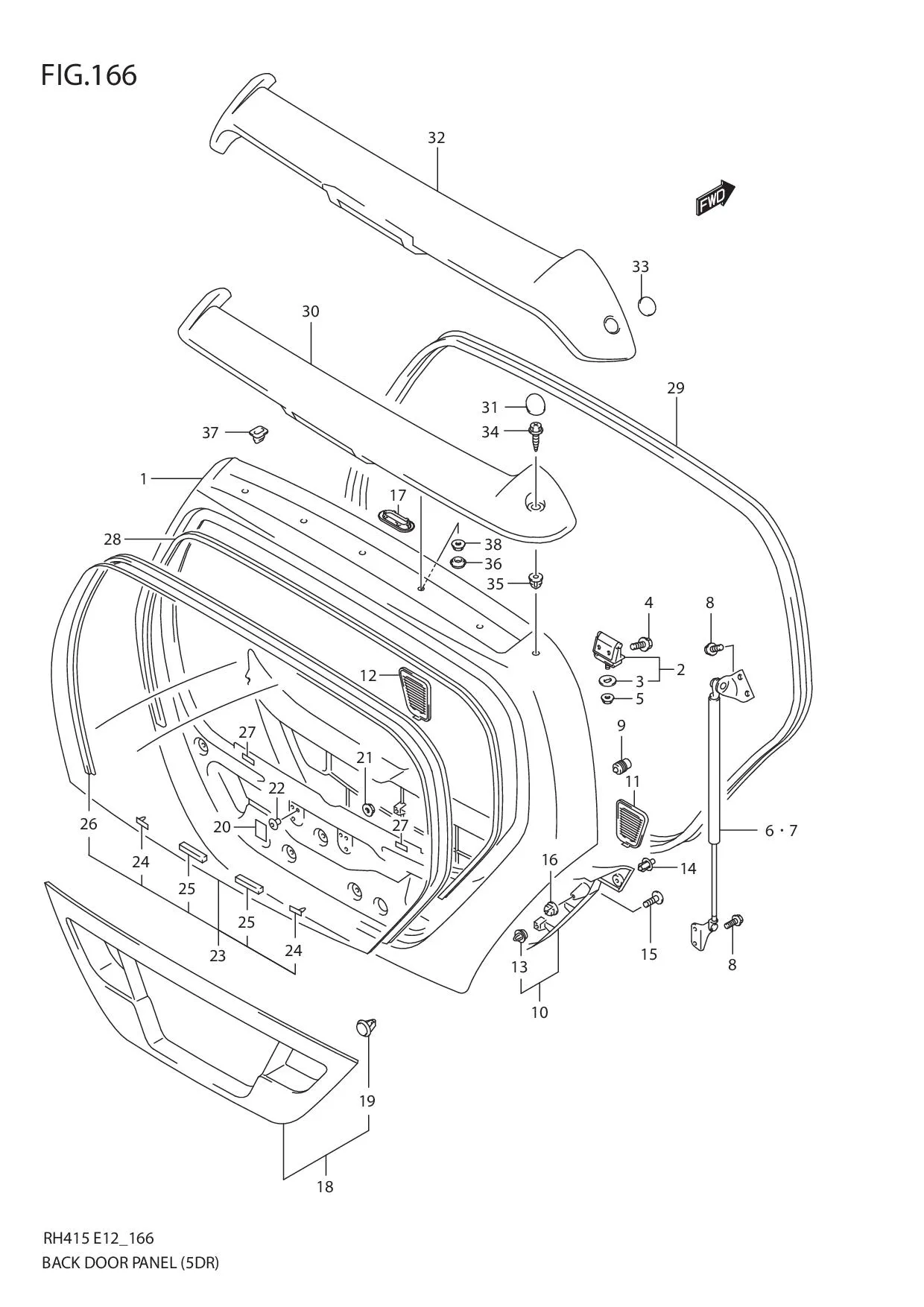

FIG.166 BACK DOOR PANEL (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 69100-54832-000	PANEL, BACK DOOR	1	-	TYPE 2
1-1	DISCONTINUE SUB: 69100-54812-000	PANEL, BACK DOOR	1	-	TYPE 1
2	69510M54G00-000	HINGE	2	Rp28.500
3	69571M76G00-000	•PACKING, HINGE	2	Rp6.500
4	02162-0612B-000 SUB: 02162-06123-000	BOLT	4	Rp16.000
5	08361-2508A-000 SUB: 08361-25083-000	NUT	2	Rp16.500
6	81850-54G01-000 SUB: 81850-54G00-000	BALANCER, BACK DOOR RH	1	Rp1.803.000
7	81860-54G01-000 SUB: 81860-54G00-000	BALANCER, BACK DOOR LH	1	Rp1.803.000
8	02162-0612B-000 SUB: 02162-06123-000	SCREW	8	Rp16.000
9	82683-60B10-000	CUSHION	2	Rp33.500
10	DISCONTINUE SUB: 83770-54G00-P4Z	TRIM, BACK DOOR (GRAY)	1	-
11	83772-54G00-P4Z	•CAP, BACK DOOR TRIM RH (GRAY)	1	Rp69.000
12	83773-54G00-P4Z	•CAP, BACK DOOR TRIM LH (GRAY)	1	Rp64.500
13	09409-08331-000	•CLIP	7	Rp17.000
14	09409M07308-P4Z	CLIP, BACK DOOR TRIM SIDE (GRAY)	2	Rp7.500
15	03141-0616A-000 SUB: 03141-06163-000	SCREW	4	Rp19.500
16	71851M70F00-000 SUB: 09148M06007-000	NUT, TRIM	4	Rp4.000
17	DISCONTINUE SUB: 83917B82010N5PK	COVER, BACK DOOR SEALING UP (BLACK)	1	-
18-1	83940-54G00-ZA4	GARNISH, BK DR LICENSE (BEIGE)	1	-
18-2	83940-54G00-ZE9	GARNISH, BK DR LICENSE (BLUE)	1	-
18-3	DISCONTINUE SUB: 83940-54G00-ZJ3	GARNISH, BK DR LICENSE (BLACK)	1	-
18-4	83940-54G00-Z2S	GARNISH, BK DR LICENSE (SILVER	1	-
18-5	83940-54G00-Z2T	GARNISH, BK DR LICENSE (GREEN)	1	-
18-6	83940-54G00-Z2U	GARNISH, BK DR LICENSE (BLUE)	1	-
18-7	DISCONTINUE SUB: 83940-54G00-ZJ3	GARNISH, BK DR LICENSE (RED)	1	-
18-8	DISCONTINUE SUB: 83940-54G00-ZJ3	GARNISH, BK DR LICENSE (LOCAL COLOR)	1	-
18-9	83940-54G00-26U	GARNISH, BK DR LICENSE (WHITE)	1	-
19	77259-71B00-000	•CLIP	8	Rp25.500
20	DISCONTINUE SUB: 84761-50X50-000	SEAL (140X190)	2	-	CUT AS REQUIRED
21	08316-1006A-000 SUB: 08316-10063L000	NUT	3	Rp2.000
22	09148-05035-000	NUT	2	Rp18.500
23	DISCONTINUE SUB: 84570-54G00-000	GLASS, BACK DOOR WINDOW	1	-
24	84572-74G00-000	•MALE, NO.1	2	Rp42.500
25	84617-76F00-000	•SPACER	2	Rp45.000
26	DISCONTINUE SUB: 84623-54G00-000	•MOLDING, BACK DOOR WINDOW	1	-
27	84515-65D00-000	FEMALE, NO.2	2	Rp45.500
28	DISCONTINUE SUB: 84627-61G00-000	TRIM, BACK DOOR WINDOW	1	-
29	84681-54G00-000	WEATHERSTRIP, DOOR OPENING	1	Rp925.500
30-3	DISCONTINUE SUB: 83980-54G01-ZJ3	SPOILER, BACK DOOR (BLACK)	1	-	TYPE 1
30-8	DISCONTINUE SUB: 83980-54G01-ZJ3	SPOILER, BACK DOOR (WHITE)	1	-	TYPE 1
30-7	83980-54G01-Z5K	SPOILER, BACK DOOR (RED)	1	-	TYPE 1
30-6	DISCONTINUE SUB: 83980-54G01-ZJ3	SPOILER, BACK DOOR (BLUE)	1	-	TYPE 1
30-5	83980-54G01-Z2T	SPOILER, BACK DOOR (GREEN)	1	-	TYPE 1
30-4	83980-54G01-Z2S	SPOILER, BACK DOOR (SILVER)	1	-	TYPE 1
30-2	83980-54G01-ZE9	SPOILER, BACK DOOR (BLUE)	1	-	TYPE 1
30-1	83980-54G01-ZA4	SPOILER, BACK DOOR (BEIGE)	1	-	TYPE 1
31-1	83991-61G00-ZA4	CAP, BACK DOOR SPOILER (BEIGE)	2	-	TYPE 1
31-8	DISCONTINUE SUB: 83991-61G00-26U	CAP, BACK DOOR SPOILER (WHITE)	2	-	TYPE 1
31-7	83991-61G00-Z5K	CAP, BACK DOOR SPOILER (RED)	2	-	TYPE 1
31-6	83991-61G00-Z2U	CAP, BACK DOOR SPOILER (BLUE)	2	-	TYPE 1
31-5	83991-61G00-Z2T	CAP, BACK DOOR SPOILER (GREEN)	2	-	TYPE 1
31-4	83991-61G00-Z2S	CAP, BACK DOOR SPOILER (SILVER)	2	-	TYPE 1
31-3	83991-61G00-ZJ3	CAP, BACK DOOR SPOILER (BLACK)	2	-	TYPE 1
31-2	83991-61G00-ZE9	CAP, BACK DOOR SPOILER (BLUE)	2	-	TYPE 1
32	DISCONTINUE SUB: 83980-54G01-ZJ3	SPOILER, BACK DOOR (LOCAL COLOR)	1	-	TYPE 2
33	DISCONTINUE SUB: 83991-61G00-26U	CAP, BACK DOOR SPOILER (LOCAL COLOR)	2	-	TYPE 2
34	09132-06010-000	SCREW, SPOILER (6X16)	2	Rp17.000
35	71851M70F00-000 SUB: 09148M06007-000	NUT, SPOILER	2	Rp4.000
36	09250M20031-000 SUB: 09250M20023-000	CAP, BACK DOOR INNER	2	Rp4.500
37	09410-00076-000	CLIP, SPOILER	3	Rp16.000
38	08316-1006A-000 SUB: 08316-10063L000	NUT, SPOILER	2	Rp2.000
