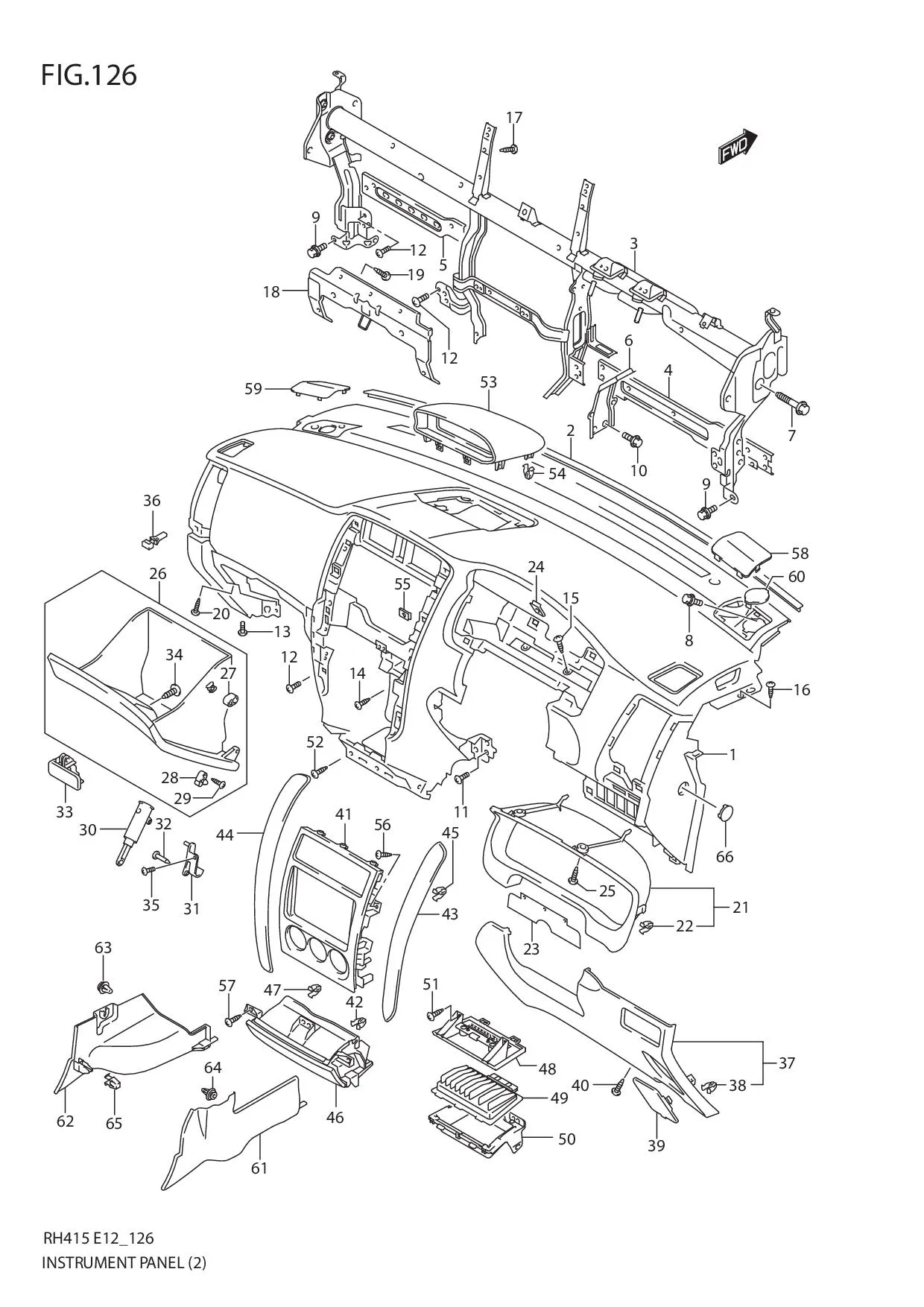

FIG.126 INSTRUMENT PANEL (TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 73110-59J20-P4Z	PANEL, INSTRUMENT MAIN (GRAY)	1	-
2	73121-65J11-000 SUB: 73121-59J00-000	SILENCER, I/P TOP	1	Rp216.500
3	73200-59J00-000	MEMBER, STEERING SUPPORT	1	-
4	DISCONTINUE SUB: 73241-59J00-000	MEMBER, DRIVER LOWER	1	-
5	73242-59J00-000	MEMBER, ASSISTANT LOWER	1	-
6	DISCONTINUE SUB: 73243-54G00-000	BRACE, SUPPORT MEMBER LOWER	1	-
7	73291-54G10-000 SUB: 73291-54G00-000	BOLT, STEERING SUPPORT MEMBER	4	Rp46.500
8	DISCONTINUE SUB: 01580-06163-000	BOLT	2	-
9	DISCONTINUE SUB: 01580-06163-000	BOLT	2	-
10	01551-0816C-000 SUB: 01551-08163-000	SCREW	4	Rp13.500
11	02142-0512A-000 SUB: 02142B05123N000	SCREW	4	Rp3.500
12	02142-0512A-000 SUB: 02142B05123N000	SCREW	3	Rp3.500
13	02142-0512A-000 SUB: 02142B05123N000	SCREW	1	Rp3.500
14	03241-0512A-000 SUB: 03242-05123-000	SCREW	2	Rp3.500
15	03241-0512A-000 SUB: 03242-05123-000	SCREW	2	Rp3.500
16	03241-0512A-000 SUB: 03242-05123-000	SCREW	2	Rp3.500
17	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
18	DISCONTINUE SUB: 73450-59J00-000	PANEL, ASSISTANT KNEE BOLSTER	1	-
19	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
20	03141-0516B-000 SUB: 03142-05163-000	SCREW	3	Rp3.500
21	DISCONTINUE SUB: 73311-59J00-5PK	PANEL, INSTRUMENT CLUSTER	1	-
22	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
23	DISCONTINUE SUB: 73814-50J00-000	BLIND, STEERING COLUMN HOLE	1	-
24	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
25	03141-0516B-000 SUB: 03142-05123-000	SCREW	2	Rp3.500
26	DISCONTINUE SUB: 73410-59J00-P4Z	BOX, GLOVE (GRAY)	1	-
27	73413M65D00-000	•CUSHION	2	Rp6.500
28	73422-57L00-000 SUB: 73422-50J00-000	•ADAPTER, DAMPER	1	Rp53.500
29	03541-0412A-000 SUB: 03541-04123-000	•SCREW	1	Rp3.500
30	73440-50J01-000 SUB: 73440-50J00-000	DAMPER, GLOVE BOX	1	Rp107.000
31	DISCONTINUE SUB: 73421-50J00-000	HINGE, GLOVE BOX	1	-
32	73423-50G00-000	PIN	1	Rp30.000
33	73430-60890-P4Z	LOCK, GLOVE BOX (GRAY)	1	-
34	03541-0416B-000 SUB: 03541B04163N000	SCREW	2	Rp4.500
35	02142-0512A-000 SUB: 02142B05123N000	SCREW	2	Rp3.500
36	DISCONTINUE SUB: 73461-77E00-000	CUSHION, GLOVE BOX LID SIDE	2	-
37	DISCONTINUE SUB: 73810-59J00-P4Z	COVER, COLUMN HOLE (GRAY)	1	-
38	09409-08326-000 SUB: 09409B08326N000	•CLIP	5	Rp8.000
39	DISCONTINUE SUB: 73812-59J00-P4Z	•COVER, FUSE BOX (GRAY)	1	-
40	03241-0516A-000 SUB: 03242-05163-000	SCREW	2	Rp17.000
41	73821-59J00-Z8L	GARNISH, I/P CTR (BLACK)	1	Rp869.000
42	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
43	DISCONTINUE SUB: 73822-59J00-ZAZ	ORNAMENT, I/P CTR SIDE RH	1	-
44	DISCONTINUE SUB: 73823-59J00-ZAZ	ORNAMENT, I/P CTR SIDE LH	1	-
45	09409-08326-000 SUB: 09409B08326N000	•CLIP	8	Rp8.000
46	DISCONTINUE SUB: 89810-59810-BT2	ASHTRAY, FRONT (BLACK)	1	-
47	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
48	DISCONTINUE SUB: 73860-59J01-P4Z	HOLDER, CD (GRAY)	1	-
49	DISCONTINUE SUB: 73850-59J01-P4Z	TRAY, CTR LOWER (GRAY)	1	-
50	DISCONTINUE SUB: 73881-59J00-000	BOX, I/P CTR LOWER	1	-
51	03541-0516A-000 SUB: 03541B05163N000	SCREW	2	Rp3.500
52	03541-0516A-000 SUB: 03541B05163N000	SCREW	4	Rp3.500
53	DISCONTINUE SUB: 73870-59J00-P4Z	GARNISH, INFORMATION (GRAY)	1	-
54	09409-08332-000	•CLIP	4	Rp18.000
55	09148-05045-000 SUB: 09148B05045N000	NUT	4	Rp4.000
56	03141-0516B-000 SUB: 03142-05163-000	SCREW	4	Rp3.500
57-1	03541-0516A-000 SUB: 03541B05163N000	SCREW	3	Rp3.500
57-2	03541-0516A-000 SUB: 03541B05163N000	SCREW	4	Rp3.500	2004-1%
58	DISCONTINUE SUB: 73831-59J00-P4Z	COVER, I/P SPEAKER RH (GRAY)	1	-
59	DISCONTINUE SUB: 73832-59J00-P4Z	COVER, I/P SPEAKER LH (GRAY)	1	-
60	DISCONTINUE SUB: 39239-50J00-000	CAP, TWEETER HOLE	2	-
61	75871-59J00-P4Z	COVER, CONSOLE FR DRIVER SIDE	1	-
62	75881-59J00-P4Z	COVER, CONSOLE FR ASSISTANT	1	-
63	09409-08328-000	•CLIP, RH	1	Rp20.500
64	DISCONTINUE SUB: 09409-08323-000	•CLIP, LH	1	-
65	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
66	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, I/P SIDE (GRAY)	2	Rp9.000
