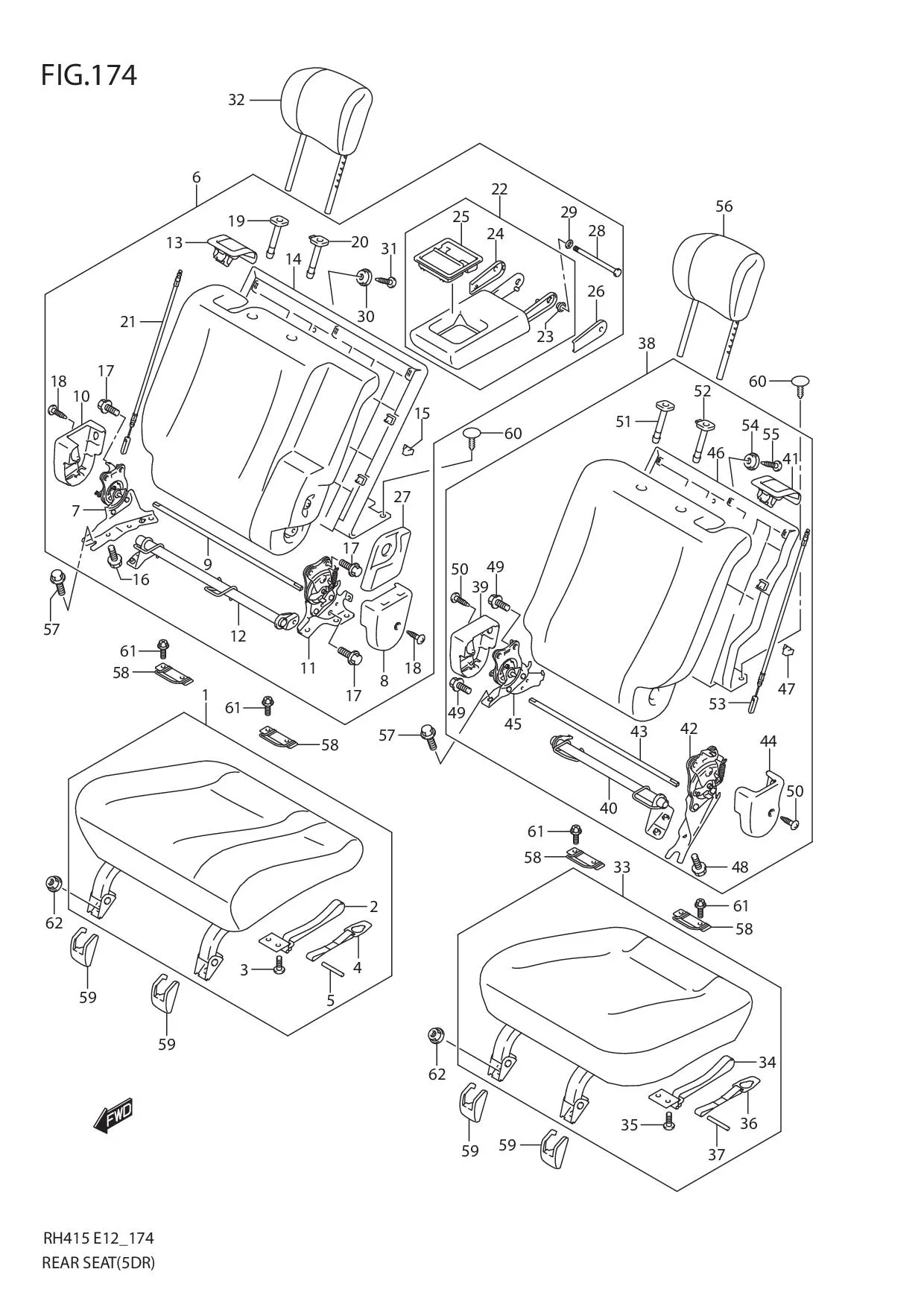

FIG.174 REAR SEAT (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	87101-54GS0-FJ4	CUSHION ASSY, REAR RH	1	-	TYPE 1,2003-4%
1-1	DISCONTINUE SUB: 87101-54G01-FJ4	CUSHION ASSY, REAR RH	1	-	TYPE 1
1-3	87101-54GU0-AGT	CUSHION ASSY, REAR RH	1	-	TYPE 2
2	DISCONTINUE SUB: 87460-54G00-000	•LOCK, REAR CUSHION	1	-
3	02142-0616B-000 SUB: 02142B06163N000	•SCREW	2	Rp5.500
4	87420-54G01-000	•BAND, REAR STOPPER	1	-
5	DISCONTINUE SUB: 87423-65DA0-000	•PIN, REAR STOPPER BAND	1	-
6-1	DISCONTINUE SUB: 87301-54G50-FJ4	BACK ASSY, REAR RH	1	-	TYPE 1
6-2	87301-54GS0-FJ4	BACK ASSY, REAR RH	1	-	TYPE 1,2003-4%
6-3	87301-54GU0-AGT	BACK ASSY, REAR RH	1	-	TYPE 2
7	87210-54G00-000	•RECLINING, OUTSIDE RH	1	-
8	87241-54G01-P4Z	•COVER, RECLINING INSIDE RH (GRAY)	1	-
9	87251-54G00-000	•ROD, RECLINING RH	1	-
10	DISCONTINUE SUB: 87221-54G00-P4Z	•COVER, RECLINING OUTSIDE RH (GRAY)	1	-
11-1	87230-54G00-000	•RECLINING, INSIDE RH	1	-	TYPE 1
11-2	87230-54G10-000	•RECLINING, INSIDE RH	1	-	TYPE 2
12	87260-54G00-000	•BRACKET, CHILD ANCHORAGE RH	1	-
13	DISCONTINUE SUB: 87290-54G00-P4Z	•KNOB, RECLINING RELEASE RH (GRAY)	1	-
14	DISCONTINUE SUB: 87390-54G00-P9S	•BOARD, REAR BACK RH (GRAY)	1	-
15	09409-06324-000 SUB: 09409B06324N000	•CLIP	6	Rp13.500
16	DISCONTINUE SUB: 09119-10071-000	•BOLT (10X20)	2	-
17	01550-1020A-000 SUB: 01550-10203-000	•BOLT	5	Rp21.000
18	03241-0512A-000 SUB: 03242-05123-000	•SCREW	9	Rp3.500
19	DISCONTINUE SUB: 85341M81A00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
20	DISCONTINUE SUB: 85840-81A10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
21	87294-54G00-000	•CABLE, RECLINING RELEASE	1	-
22-1	87501-54G50-P8F	•ARMREST ASSY, REAR BACK	1	-	TYPE 1
22-2	87501-54G50-AGU	•ARMREST ASSY, REAR BACK	1	-	TYPE 2
23	85291-82C00-000	••BUSH	1	-
24	87562-54G50-P4Z	••COVER, ARMREST INSIDE (GRAY)	1	-
25	DISCONTINUE SUB: 87590-54G50-P4Z	••HOLDER ASSY, CUP (GRAY)	1	-
26	87561-54G50-P4Z	•COVER, ARMREST OUTSIDE (GRAY)	1	-
27	87571-54G50-P4Z	•COVER ARMREST HINGE	1	-
28	87572-54G50-000	•BOLT ARMREST	1	-
29	08321-0110B-000 SUB: 08321-01103-000	•LOCK WASHER	1	Rp19.000
30	87429-65DA0-5PK	•GUIDE, STOPPER BAND (BLACK)	1	-
31	03241-0520A-000 SUB: 03242-05203-000	•SCREW	1	Rp12.500
32-3	86401-76G00-S8C	HEADRESTRAINT ASSY	1	-	TYPE 2
32-2	86401-76G00-GA3	HEADRESTRAINT ASSY	1	-	TYPE 1,2003-4%
32-1	DISCONTINUE SUB: 86401-55G10-GA3	HEADRESTRAINT ASSY	1	-	TYPE 1
33-1	DISCONTINUE SUB: 87102-54G01-FJ4	CUSHION ASSY, REAR LH	1	-	TYPE 1
33-3	87102-54GU0-AGT	CUSHION ASSY, REAR LH	1	-	TYPE 2
33-2	87102-54GS0-FJ4	CUSHION ASSY, REAR LH	1	-	TYPE 1,2003-4%
34	DISCONTINUE SUB: 87460-54G00-000	•LOCK, REAR CUSHION	1	-
35	02142-0616B-000 SUB: 02142B06163N000	•SCREW	2	Rp5.500
36	87420-54G01-000	•BAND, REAR STOPPER BAND	1	-
37	DISCONTINUE SUB: 87423-65DA0-000	•PIN, REAR STOPPER BAND	1	-
38-1	DISCONTINUE SUB: 87302-54G20-FJ4	BACK ASSY, REAR LH	1	-	TYPE 1
38-2	87302-54GS0-FJ4	BACK ASSY, REAR LH	1	-	TYPE 1,2003-4%
38-3	87302-54GU0-AGT	BACK ASSY, REAR LH	1	-	TYPE 2
39	87741-54G01-P4Z	•COVER RECLINING INSIDE LH (GRAY)	1	-
40	87760-54G00-000	•BRACKET, CHILD ANCHORAGE LH	1	-
41	DISCONTINUE SUB: 87290-54G00-P4Z	•KNOB, RECLINING RELEASE LH (GRAY)	1	-
42	87710-54G00-000	•RECLINING, OUTSIDE LH	1	-
43	87751-54G00-000	•ROD, RECLINING LH	1	-
44	87721-54G00-P4Z	•COVER, RECLINING OUTSIDE LH (GRAY)	1	-
45-1	87730-54G00-000	•RECLINING INSIDE LH	1	-	TYPE 1
45-2	87730-54G10-000	•RECLINING INSIDE LH	1	-	TYPE 2
46	87890-54G00-P9S	•BOARD, REAR BACK LH (GRAY)	1	-
47	09409-06324-000 SUB: 09409B06324N000	•CLIP	6	Rp13.500
48	DISCONTINUE SUB: 09119-10071-000	•BOLT (10X20)	2	-
49	01550-1020A-000 SUB: 01550-10203-000	•BOLT	5	Rp21.000
50	03241-0512A-000 SUB: 03242-05123-000	•SCREW	6	Rp3.500
51	DISCONTINUE SUB: 85341M81A00-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
52	DISCONTINUE SUB: 85840-81A10-P4Z	•GUIDE, HEADRESTRAINT (GRAY)	1	-
53	87294-54G00-000	•CABLE, RECLINING RELEASE	1	-
54	87429-65DA0-5PK	•GUIDE, STOPPER BAND (BLACK)	1	-
55	03241-0520A-000 SUB: 03242-05203-000	•SCREW	1	Rp12.500
56-1	DISCONTINUE SUB: 86401-55G10-GA3	HEADRESTRAINT ASSY	1	-	TYPE 1
56-3	86401-76G00-S8C	HEADRESTRAINT ASSY	1	-	TYPE 2
56-2	86401-76G00-GA3	HEADRESTRAINT ASSY	1	-	TYPE 1,2003-4%
57	01551-1025A-000 SUB: 01551-10253-000	BOLT	8	Rp29.000
58	87440-54G00-000	STRIKER, REAR CUSHION	2	-
59	87491-54G00-P4Z	COVER, HINGE (GRAY)	4	Rp82.000
60	09409-10302-P4Z	CLIP (GRAY)	6	Rp19.500
61	02162-0616A-000 SUB: 02162-06163L000	SCREW	4	Rp3.000
62	08316-1010A-000 SUB: 08316-10103-000	NUT	4	Rp3.500
