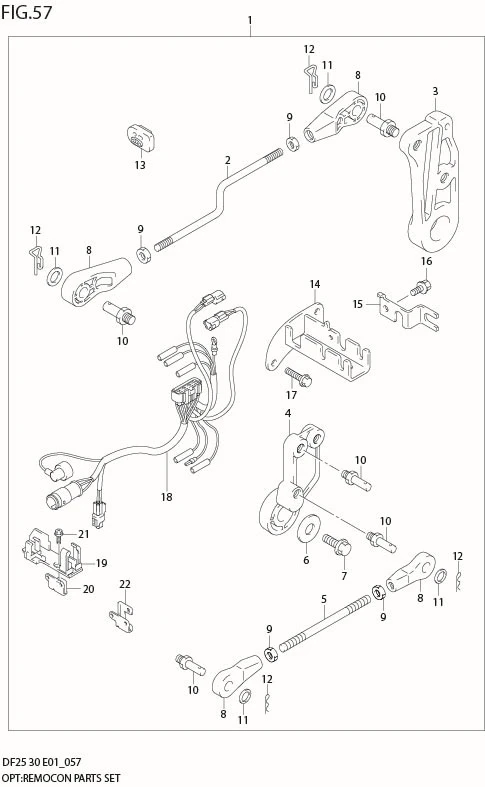

FIG 57 OPT:REMOCON PARTS SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67130-89J10-000	PARTS ASSY, REMOCON	1	Rp1.236.000	MODEL:04
1-3	67130-89J30-000	PARTS ASSY, REMOCON	1	Rp1.221.500	MODEL:05%07
1-1	DISCONTINUE SUB: 67130-89J01-000	PARTS ASSY, REMOCON	1	-
2	21241-89J00-000	?LINK, CLUTCH LEVER	1	Rp94.500
3	23211-89J00-000	?LEVER, CLUTCH CONTROL	1	Rp104.000
4	19121-89J00-000	?LEVER, THROTTLE CONTROL	1	Rp97.500
5	DISCONTINUE SUB: 67413-89J00-000	?ROD, REMOCON THROTTLE	1	-
6	09160-06006-000 SUB: 09160-06084-000	?WASHER	1	Rp11.000
7	01550-06127-000	?BOLT	1	Rp17.000
8	67467-89J01-000	?CONNECTOR	6	Rp65.500
9	DISCONTINUE SUB: 67471-99E00-000	?NUT, CONNECTOR	4	-
10	67473-89J00-000	?PIN, CONNECTOR	5	Rp66.500
11	09160-06055-000	?WASHER	6	Rp13.000
12	09385-06012-000	?CLIP	6	Rp12.000
13	61124-89J10-000	?GROMMET	1	Rp242.000
14	67340-89J00-000	?BRACKET, REMOCON CABLE	1	Rp330.500
15	67343-89J00-000	?STOPPER, REMOCON CABLE	1	Rp84.000
16	09116-06094-000	?BOLT (6X15)	1	Rp19.000
17	01550-06167-000	?BOLT	1	Rp16.500
18-1	36610-89J10-000	?HARNESS, WIRING	1	Rp996.000
18-2	36610-89J70-000	?HARNESS, WIRING	1	-	MODEL:04
18-3	36610-89JB0-000	?HARNESS, WIRING	1	-	MODEL:05%07
19	36616-89J00-000	?HOLDER, CONNECTOR	1	Rp32.500	FOR 67130-89J01
20	36617-89J00-000	?BRACKET, CONNECTOR HOLDER	1	Rp33.000	FOR 67130-89J01
21	02162-06127-000	?BOLT	1	Rp12.500	FOR 67130-89J01
22	36616-89J10-000	?HOLDER, CONNECTOR	1	Rp34.500	FOR 67130-89J30
