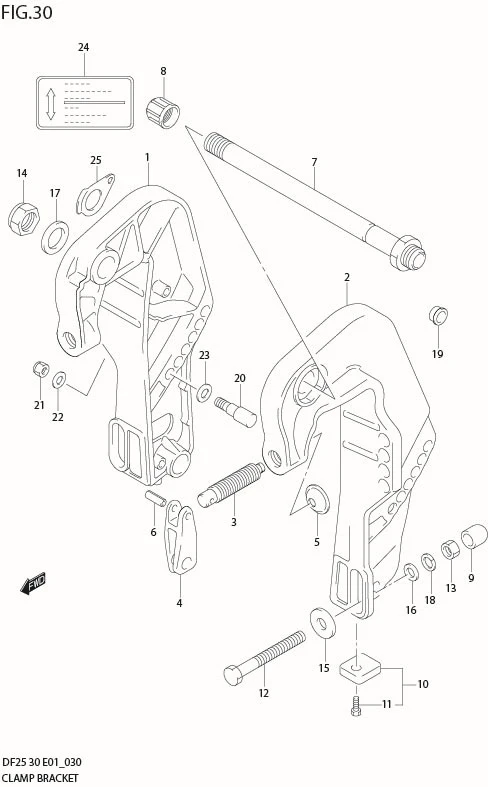

FIG 30 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41111-89J13-0EP	BRACKET, CLAMP STBD (BLACK)	1	-	DF25:151001%
1-3	41111-89J21-0EP SUB: 41111-89J20-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp3.389.000	DF25:510001%
1-1	41111-89J00-0EP	BRACKET, CLAMP STBD (BLACK)	1	-	!41111-89J11-0EP
2-1	41121-89J00-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp18.500	!41121-89J11-0EP
2-2	41121-89J15-0EP SUB: 41121-89J14-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp3.389.000	MODEL:01%07
3	41211-89J00-000	SCREW, CLAMP	2	Rp179.500
4	41212-93001-0EP	HANDLE, CLAMP (BLACK)	2	Rp1.068.000
5	41213-94J01-000 SUB: 41213-98100-000	PLATE, CLAMP	2	Rp38.000
6	09205M06016-000 SUB: 09205-06007-000	PIN	2	Rp4.500
7-1	41130-95291-000	SHAFT, CLAMP BRKT	1	Rp845.500
7-2	41130-87J10-000 SUB: 41130-87J00-000	SHAFT, CLAMP BRKT	1	Rp837.000	DF25:510124%
8	41151-94500-000	CAP, CLAMP BRKT SHAFT	1	Rp23.000
9	DISCONTINUE SUB: 41153-94500-000	CAP, TRANSOM BOLT	4	-
10	55320-95311-000	ZINC SET, PROTECTION	2	Rp119.500
11	09116-06094-000	?BOLT (6X15)	2	Rp19.000
12-2	DISCONTINUE SUB: 09100-12093-000	BOLT (12X100,PITCH:1.25)	4	-	DF25 MODEL:05,06
12-1	DISCONTINUE SUB: 09100-12039-000	BOLT (12X100,PITCH:1.75)	4	-	!09100-12093
13-1	DISCONTINUE SUB: 09140-12028-000	NUT (M12,PITCH:1.75)	4	-
13-2	09159-12014-000	NUT (M12,PITCH:1.25)	4	Rp37.000	DF25 MODEL:05,06
14	09159-22006-000	NUT	1	Rp186.500
15	DISCONTINUE SUB: 09160-12044-000	WASHER (12.5X35X3.2)	4	-
16-1	09160-12066-000	WASHER (12.5X22X2.5)	4	Rp13.500
16-2	09160-12110-000	WASHER (12.5X22X3.0)	4	Rp55.000	DF25 MODEL:05,06
17	DISCONTINUE SUB: 09160-22033-000	WASHER (22.5X38X1.0)	1	-	DF25 %MODEL:04
18	DISCONTINUE SUB: 09162-12005-000	WASHER, LOCK (12.2X21.5X3.0)	4	-	DF25 %MODEL:04
19	41152-94500-000	PLUG, CLAMP BRKT	1	Rp24.500
20	45421-89J00-000	PIN, TILT LOCK	2	Rp161.500
21	09159-10050-000	NUT	2	Rp23.500
22	09160-10082-000	WASHER (10.5X19X2.0)	2	Rp12.000
23	09160-12066-000	WASHER (12.5X22X2.5)	2	Rp13.500
24	43241-87J00-000	MARK, RELEASE LEVER	1	Rp28.000
25	41135-93J00-000	WASHER, CLAMP BRACKET SHAFT	1	Rp50.500	DF25 MODEL:05,06
