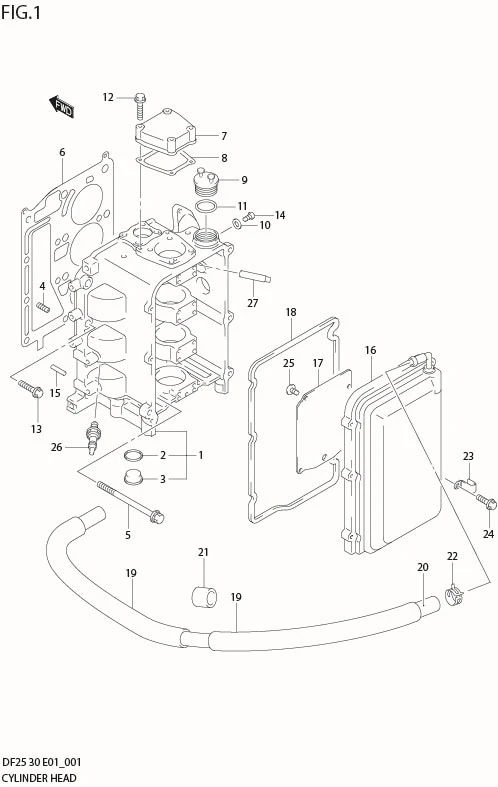

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11100-89J00-000	HEAD ASSY, CYLINDER	1	Rp23.539.000	MODEL:04%07
1-1	11100-89J00-019	HEAD ASSY, CYLINDER (BLACK)	1	Rp8.353.500	MODEL:00%03
2	11217-85FA0-000	?GASKET, WATER JACKET PLUG	2	Rp25.000
3	09248-26001-000 SUB: 11116-96J00-000	?PLUG	2	Rp94.000
4	DISCONTINUE SUB: 11112-99E00-000	?PLUG, OIL VENTURI	1	-
5	11119-89J00-000	BOLT, CYLINDER HEAD	8	Rp68.000
6	DISCONTINUE SUB: 11141-89J01-000	GASKET, CYLINDER HEAD	1	-
7-1	11181-89J00-019	COVER, CYL HEAD UPPER (BLACK)	1	Rp126.000	MODEL:00%03
7-2	11181-89J00-000	COVER, CYL HEAD UPPER	1	Rp101.000	MODEL:04%07
8	11182-89J00-000	GASKET, CYL HEAD UPPER COVER	1	Rp32.500
9	11382-99E00-000	CAP, OIL FILLER	1	Rp79.000
10	09168-05010-000	GASKET	3	Rp10.000
11	09280-26006-000	O RING (D:3.1 ID:26.4)	1	Rp16.500
12	01550-06307-000	BOLT	4	Rp18.000
13	01550-08307-000	BOLT	4	Rp24.000
14	DISCONTINUE SUB: 02112-05087-000	SCREW	3	-
15	04211M13189-000 SUB: 04211-13189-000	PIN	2	Rp9.000
16-1	11170-89J00-019	COVER, CYL HEAD (BLACK)	1	Rp1.352.500	MODEL:00%03
16-2	11170-89J00-000	COVER, CYL HEAD	1	Rp2.427.500	MODEL:04%07
17	11173-89J00-000	PLATE, BREATHER	1	Rp34.000
18	DISCONTINUE SUB: 11189-89J00-000	GASKET, CYLINDER HEAD COVER	1	-
19	DISCONTINUE SUB: 18498-90J20-000	PROTECTOR, BREATHER HOSE	2	-	L:590!330
20	09355-13207-00B	HOSE	1	Rp385.500	L:2000!770
21	09320-20002-000	CUSHION	1	Rp33.000
22-1	DISCONTINUE SUB: 09401-20406-000	CLIP	1	-
22-2	09401-20409-000 SUB: 17829-90J00-000	CLIP	1	Rp27.000	MODEL:06,07
23	09403-25304-000	CLAMP	1	Rp20.000
24	DISCONTINUE SUB: 01550B0625AN000	BOLT	8	-
25	02142-0612A-000 SUB: 02142B0612AN000	SCREW	4	Rp4.000
26	09482-00446-000	SPARK PLUG (DCPR6E)	3	Rp119.500
27	11116-54E00-001	GUIDE, VALVE OS	3	Rp149.500	OPT
