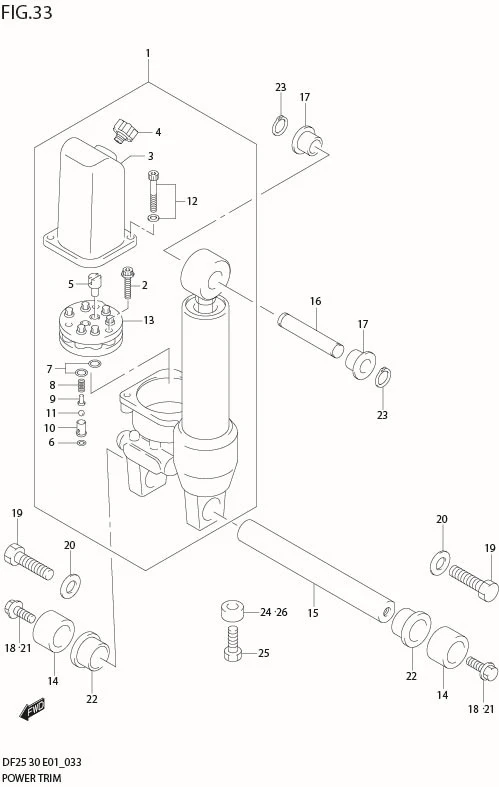

FIG 33 POWER TRIM (TYPE:T)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	48000-89J03-000	POWER TRIM ASSY	1	-	DF25:371464%
1-1	48000-89J02-000	POWER TRIM ASSY	1	-
1-3	48000-89J10-000	POWER TRIM ASSY	1	-	DF25:421019%
2	48541-97E01-000	?BOLT SET	1	Rp74.500
3-1	48571-89J00-000	?RESERVOIR	1	-	!48571-89J01
3-2	48571-89J01-000	?RESERVOIR	1	Rp1.384.500	DF25:371155%
4-1	48572-89J00-000	?PLUG	1	Rp101.500
4-2	48572-89J01-000	?PLUG	1	Rp145.000	DF25:371155%
5	48583-95E00-000	?JOINT, DRIVE	1	Rp95.500
6	48818-97E00-000	?O RING	1	Rp34.000
7	48505-87D10-000	?O RING SET	1	Rp167.500
8	48823-89J00-000	?SPRING, PRESSURE VALVE	1	Rp53.500
9	48832-89J00-000	?VALVE, PRESSURE	1	Rp293.000
10	48834-89J00-000	?SHEET, VALVE	1	Rp296.000
11	48842-89J00-000	?BALL, PRESSURE VALVE	1	Rp25.000
12	48861-89J00-000	?BOLT SET	2	Rp62.000
13	48510-89J00-000	?PUMP ASSY	1	Rp3.252.000
14	47226-89J00-000	COLLAR, TILT CYL LOWER	2	Rp53.000
15-1	48121-89J00-000	SHAFT, TILT CYL LOWER	1	-
15-2	48121-89J10-000	SHAFT, TILT CYL LOWER	1	Rp520.000	MODEL:01%07
16-1	48321-89J00-000	SHAFT, TILT CYL UPPER (S)	1	Rp82.500
16-2	48321-89J11-000 SUB: 48321-89J10-000	SHAFT, TILT CYL UPPER (L)	1	Rp131.000
16-3	48321-89J11-000 SUB: 48321-89J10-000	SHAFT, TILT CYL UPPER	1	Rp131.000	TYPE:S,L
17	48325-89J00-000	BUSH, TILT CYL UPPER	2	Rp25.500
18	09116-08137-000 SUB: 09116-08121-000	BOLT (8X22)	2	Rp49.000	MODEL:00
19	DISCONTINUE SUB: 09100-10220-000	BOLT (10X35)	2	-	MODEL:01%03
20	DISCONTINUE SUB: 09160-10081-000	WASHER (10X20X3.0)	2	-	MODEL:01%03
21	09116-10131-000	BOLT (10X35)	2	Rp49.000	MODEL:04%07
22	48326-89J00-000	BUSH	2	Rp45.500
23	09380-12002-000	SNAP RING	2	Rp12.500
24	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	1	Rp79.500
25-1	DISCONTINUE SUB: 09128-06021-000	BOLT	1	-
25-2	09103-06281-000	BOLT	1	Rp20.500	MODEL:06,07
26	DISCONTINUE SUB: 55321-87J10-000	ANODE (MAGNESIUM)	1	-	OPT
