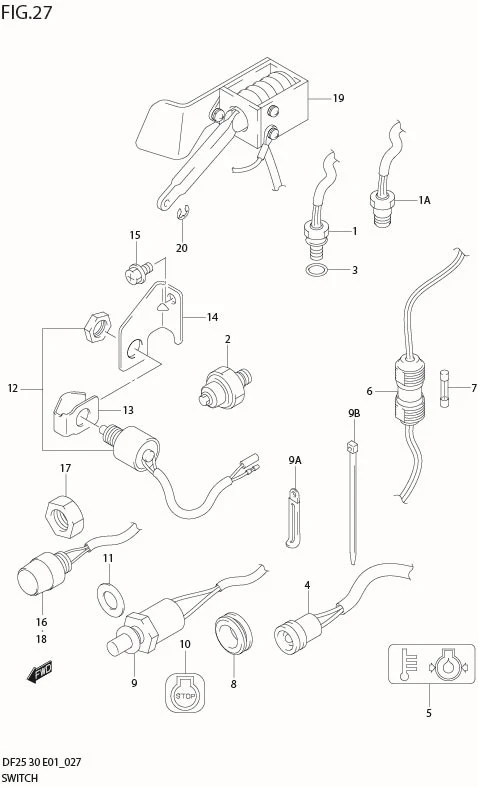

FIG 27 SWITCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1A	34830-87J20-000	SENSOR, TEMP	1	Rp526.000	MODEL:04%07
1	34830-87JA0-000 SUB: 34830-87J10-000	SENSOR, TEMP	1	Rp814.500	MODEL:00%03
2	37820-93E00-000	SWITCH, OIL PRESSURE	1	Rp265.500
3	09280-09005-000	O RING (D:1.9,ID:8.6)	1	Rp23.000	MODEL:00%03
4	36360-89J00-000	INDICATOR, WARNING	1	Rp517.000
5	36367-89J00-019 SUB: 36367-89J00-000	LABEL, WARNING	1	Rp15.000
6	36740-89J00-000	CASE, FUSE	1	Rp370.000
7	DISCONTINUE SUB: 09481-25001-000	?FUSE (25A)	1	-
8	09308-16006-000	GROMMET	1	Rp18.500
9	37830-89J03-000 SUB: 37830-89J01-000	SWITCH ASSY, EMERGENCY	1	Rp313.000
9A	DISCONTINUE SUB: 09404-06432L000	CLAMP, SWITCH LEAD	1	-	MODEL:03%07
9B	09407-14407-000	CLAMP, SWITCH LEAD	1	Rp18.500	MODEL:03%07
10	37835-95D00-000	LABEL, STOP	1	Rp13.000
11	09160-12067-000	WASHER (12.5X23X1.0)	1	Rp19.000
12	DISCONTINUE SUB: 37721-94403-000	SWITCH, NEUTRAL	1	-	ELECTRIC STARTER
13	DISCONTINUE SUB: 37725-95600-000	ACTUATOR, NEUTRAL SW	1	-	ELECTRIC STARTER
14-1	37726-89J00-000	BRACKET, NEUTRAL SW	1	Rp36.500	ELECTRIC STARTER
14-2	37726-89J10-000	BRACKET, NEUTRAL SW	1	Rp39.500	ELECTRIC STARTER
15-1	02162-06127-000	BOLT	1	Rp12.500	ELECTRIC STARTER
15-2	02162-06127-000	BOLT	2	Rp12.500	ELECTRIC STARTER
16	37161-89E13-000	SWITCH, STARTING MOTOR	1	Rp259.500	ELECTRIC STARTER
17	DISCONTINUE SUB: 09159-14014-000	NUT	1	-	ELECTRIC STARTER
18	DISCONTINUE SUB: 37160-89J01-000	SWITCH, STARTING MOTOR	1	-	ELECTRIC STARTER
19	38610-89J01-000	SOLENOID, CHOKE	1	Rp1.062.000	TYPE:QR/T
20	09383-03001-000	E RING	1	Rp10.500	TYPE:QR/T
