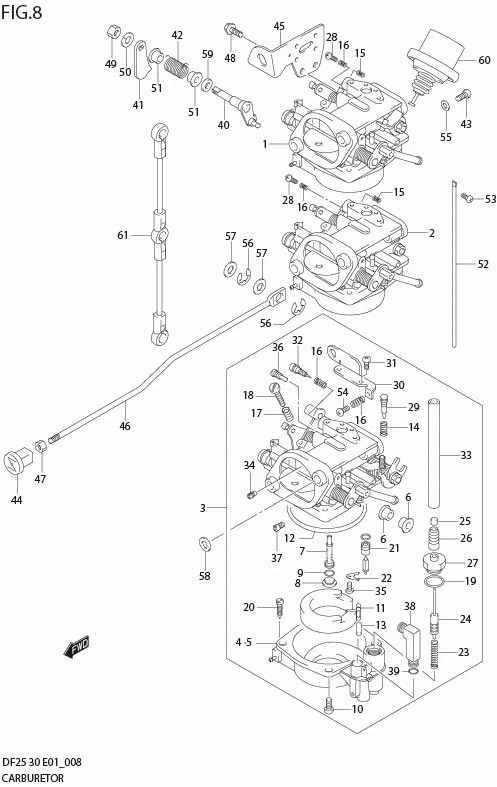

FIG 8 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	13201-89J50-000	CARBURETOR ASSY, TOP	1	Rp2.441.000	DF30
1-1	13201-89J40-000	CARBURETOR ASSY, TOP	1	Rp2.441.000	DF25
2-2	13202-89J50-000	CARBURETOR ASSY, 2ND	1	Rp2.441.000	DF30
2-1	13202-89J40-000	CARBURETOR ASSY, 2ND	1	Rp2.441.000	DF25
3-1	13203-89J40-000	CARBURETOR ASSY, 3RD	1	Rp2.224.000	DF25
3-2	13203-89J50-000	CARBURETOR ASSY, 3RD	1	Rp2.441.000	DF30
4	13245-89J00-000	?CHAMBER, FLOAT	2	Rp1.032.500	#1,#2
5	13245-89J10-000	?CHAMBER, FLOAT	1	Rp1.032.500	#3
6	13216-89J00-000	?RING	6	Rp35.000
7-1	13235-89J00-000	?NOZZLE, MAIN	3	Rp124.000	DF25
7-2	DISCONTINUE SUB: 13235-89J10-000	?NOZZLE, MAIN	3	-	DF30
8	DISCONTINUE SUB: 13239-89J00-000	?PLUG	3	-
9	13246-43010-000	?O RING	3	Rp21.500
10	13249-89J00-000	?SCREW	12	Rp42.500
11	DISCONTINUE SUB: 13250-89J00-000	?FLOAT	3	-
12	DISCONTINUE SUB: 13251-95D00-000	?GASKET, FLOAT CHAMBER	3	-
13	DISCONTINUE SUB: 13254-98300-000	?PIN	3	-
14	13268-92910-000	?SPRING	3	Rp33.000
15	DISCONTINUE SUB: 13268-96111-000	?SPRING	2	-	#1,#2
16	DISCONTINUE SUB: 13268-96111-000	?SPRING	8	-	#1(3),#2(3),#3(2)
17	13268-89J00-000	?SPRING	1	Rp42.500	#3
18	13267-89J00-000	?SCREW	1	Rp65.500	#3
19	13278-47090-000 SUB: 13278B47090N000	?O RING	3	Rp5.500
20	DISCONTINUE SUB: 13279-90000-000	?ADJUSTER	3	-
21	DISCONTINUE SUB: 13370-95D00-000	?VALVE, NEEDLE	3	-
22	DISCONTINUE SUB: 13373-46710-000	?PLATE	3	-
23	13441-89J00-000	?SPRING	3	Rp32.000
24	13493-89J00-000	?PLUNGER	3	Rp213.500
25	13495-09400-000	?CAP	3	Rp25.500
26	13495-89J00-000	?CAP	3	Rp98.000
27	13496-89J00-000	?GUIDE, HOLDER	3	Rp138.500
28	13534-95D00-000	?SCREW	2	Rp42.500	#1,#2
29	13534-98900-000	?SCREW	3	Rp42.500
30	13656-89J00-000	?BRACKET	3	Rp55.000
31	13657-89J00-000	?SCREW	6	Rp13.000
32	13662-89J00-000	?ADJUSTER	3	Rp120.500
33-1	09351-30001-600 SUB: 09351-30503-600	?HOSE	2	Rp33.500	#1,#2
33-2	09351-30001-600 SUB: 09351-30503-600	?HOSE	1	Rp33.500	#3,L:600!225
34	09493-70009-000	?JET, MAIN AIR (0.7)	3	Rp117.000
35	02112-0306B-000 SUB: 02112-03063-000	?SCREW	3	Rp12.000
36-1	09492-38006-000	?JET, PILOT (38.8)	3	Rp124.500	DF25
36-2	09492-40011-000	?JET, PILOT (40)	3	Rp124.500	DF30
37-1	09491-27019-000	?JET, MAIN (135)	3	Rp65.500	DF25
37-2	09493-22011-000	?JET, MAIN (110)	3	Rp117.000	DF30
38	13497-89J00-000	?UNION COMP, CARBURETOR	3	Rp107.000
39	13291-63C00-000	?O RING	6	-
40	13212-89J00-000	SHAFT ASSY	1	Rp454.000
41	13213-89J00-000	LEVER	1	Rp107.500
42	13214-89J00-000	SPRING	1	Rp75.500
43	13249-89J10-000	SCREW	2	Rp54.500
44	13631-93501-000	KNOB, STARTER	1	Rp40.500
45	13231-89J00-000	PROTECTOR, CARBURETOR	1	Rp52.000
46	13413-89J00-000	ROD, CHOKE	1	Rp219.500
47	09140-04007-000	NUT	1	Rp14.000
48	01550-06127-000	BOLT	2	Rp17.000
49	13607-98300-000	NUT	1	Rp18.500
50	DISCONTINUE SUB: 09162-06006-000	SPRING WASHER	1	-	?13614-98300
51	13216-89J00-000	RING	2	Rp35.000
52	13513-89J00-000	CABLE	1	Rp94.500
53	DISCONTINUE SUB: 13614B89J00N000	SCREW	3	-
54	13534-89J00-000	SCREW	3	Rp20.000
55	13558-09300-000	WASHER	2	Rp14.500
56	13415-38300-000	E RING	2	Rp10.500
57	13445-14A00-000	GASKET	4	Rp22.500
58	13539-89J00-000	WASHER	6	Rp63.500
59	13555-87C00-000	PACKING	1	Rp21.500
60	13431-89J00-000	DASH POT ASSY	1	Rp1.472.000
61	13510-89J00-000	ROD, THROTTLE	1	Rp166.000
62	13910-89J01-000	REPAIR KIT, CARBURETOR	1	Rp722.000	OPT
