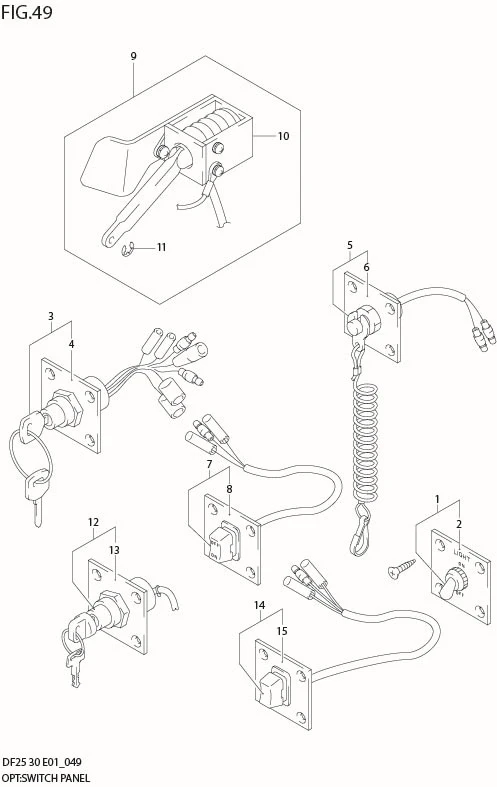

FIG 49 OPT:SWITCH PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37210-93J00-000	PANEL ASSY, LIGHTING SW	1	Rp758.000	TYPE:T MODEL:04
1-1	37210-93J00-000 SUB: 37210-92E00-000	PANEL ASSY, LIGHTING SW	1	Rp758.000	TYPE:Q/QR/T
2-1	37212-92E00-000	?PANEL, LIGHTING SW	1	Rp212.000
2-2	37212-93J00-000	?PANEL, LIGHTING SW	1	Rp316.500	FOR 37210-93J00
3	37100-99E00-000 SUB: 37100-92E00-000	PANEL ASSY, IGNITION SW	1	Rp629.500	TYPE:QR/T
4	37139-92E00-000	?PANEL, IGNITION SW	1	Rp212.000	TYPE:QR/T
5-1	37803-99E03-000 SUB: 37803-92E00-000	PANEL ASSY, EMERGENCY SW	1	Rp398.500	TYPE:QR/T
5-2	37803-99E03-000 SUB: 37803-99E00-000	PANEL ASSY, EMERGENCY SW	1	Rp398.500	TYPE:T MODEL:04
6-1	37825-92E00-000	?PANEL, EMERGENCY SW	1	Rp388.500	TYPE:QR/T
6-2	DISCONTINUE SUB: 37825-99E00-000	?PANEL, EMERGENCY SW	1	-	FOR 37803-99E00
7	37805-92E00-000	PANEL ASSY, PTT SW	1	Rp646.500	TYPE:T
8	37855-92E00-000	?PANEL, PTT SW	1	-	TYPE:T
9	38600-89J00-000	SOLENOID SET, CHOKE	1	Rp1.152.500
10	38610-89J01-000	?SOLENOID	1	Rp1.062.000
11	09383-03001-000	?E RING	1	Rp10.500
12-1	37100-99E00-000 SUB: 37100-92E01-000	PANEL ASSY, IGNITION SW	1	Rp629.500	TYPE:T
12-2	37100-99E00-000	PANEL ASSY, IGNITION SW	1	Rp629.500	TYPE:T MODEL:04
13-1	37139-92E00-000 SUB: 37139-92E01-000	?PANEL IGNITION SW	1	Rp212.000	TYPE:T
13-2	37139-99E00-000	?PANEL IGNITION SW	1	Rp316.500	FOR 37100-99E00
14	37805-99E00-000	PANEL ASSY, PTT SW	1	Rp532.500	TYPE:T MODEL:04
15	37855-99E00-000	?PANEL, PTT SW	1	Rp469.500	TYPE:T MODEL:04
