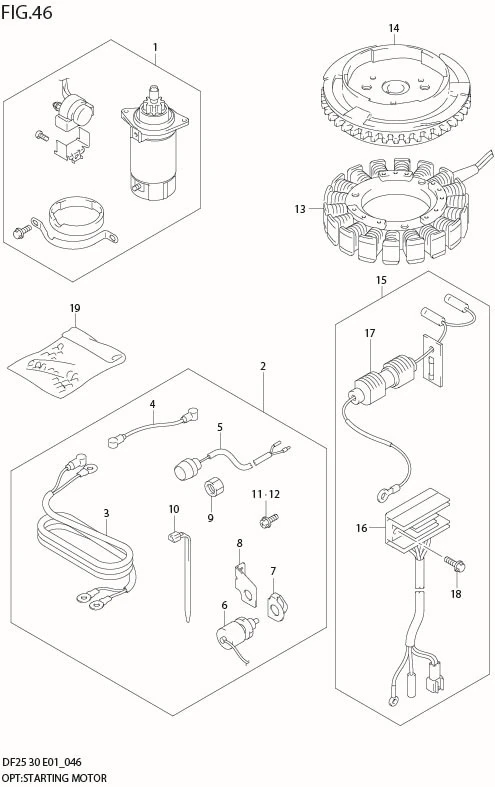

FIG 46 OPT:STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31101-89J00-000	MOTOR SET STARTING	1	Rp5.808.500
2-1	33800-89J00-000	CABLE & SWITCH SET	1	Rp751.500	MODEL:00
2-2	33800-89J10-000	CABLE & SWITCH SET	1	Rp832.500	MODEL:01%03
2-3	33800-89J20-000	CABLE & SWITCH SET	1	Rp691.500	MODEL:04%07
3	33810-93E02-000	?CABLE, STARTING MOTOR	1	Rp1.096.000
4	33820-89E01-000	?CABLE, STARTER SUB	1	Rp115.500
5-1	37161-89E13-000	?SWITCH, STARTER	1	Rp259.500	FOR 33800-89J00
5-2	DISCONTINUE SUB: 37160-89J01-000	?SWITCH, STARTER	1	-	FOR 33800-89J10
6	DISCONTINUE SUB: 37721-94403-000	?SWITCH, NEUTRAL	1	-
7	DISCONTINUE SUB: 37725-95600-000	?ACTUATOR	1	-
8-1	37726-89J00-000	?BRACKET, NEUTRAL SW	1	Rp36.500	FOR 33800-89J00
8-2	37726-89J10-000	?BRACKET, NEUTRAL SW	1	Rp39.500	FOR 33800-89J20
9	DISCONTINUE SUB: 09159-14014-000	?NUT	1	-	FOR 33800-89J00
10	36990-25G00-000 SUB: 09407-14403L000	?CLAMP	1	Rp13.000
11	02162-06127-000	?SCREW	1	Rp12.500
12	02162-06167-000	?SCREW	1	Rp7.500
13-1	32101-89J00-000	COIL, BATTERY CHARGING	1	Rp3.872.500
13-2	32101-89J20-000	COIL, BATTERY CHARGING	1	Rp5.293.500	MODEL:02%07
14	DISCONTINUE SUB: 32102-89J00-000	FLYWHEEL, MAGNETO	1	-
15-1	32801-89J00-000	RECTIFIER SET	1	Rp1.121.500
15-2	32801-89J10-000	RECTIFIER SET	1	Rp1.205.000	MODEL:02%07
16-1	32800-89J00-000	?RECTIFIER	1	Rp1.151.500
16-2	32800-89J11-000 SUB: 32800-89J10-000	?RECTIFIER	1	Rp1.470.000	MODEL:02%07
17	36740-89J00-000	?CASE ASSY, FUSE	1	Rp370.000
18	01550-06207-000 SUB: 01550B06207N000	?BOLT	2	Rp3.000
19	36990-87D00-000	TERMINAL & SLEEVE SET	1	Rp126.500
