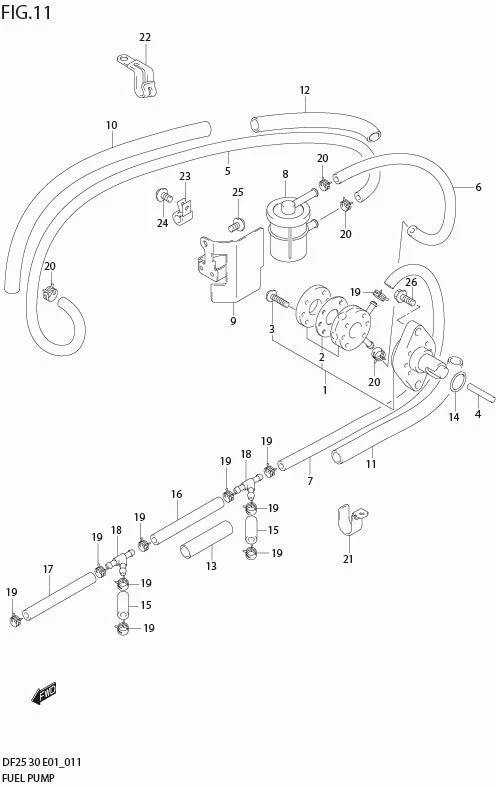

FIG 11 FUEL PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15100-89J00-000	PUMP ASSY, FUEL	1	-
2	15170-99E1V-000 SUB: 15170-99E00-000	?DIAPHRAGM	1	Rp792.500
3	15251-93E00-000	?SCREW	6	Rp12.500
4	15131-89J00-000	ROD, FUEL PUMP	1	Rp50.500
5	15191-89J00-000	HOSE, FUEL (CONN TO FILTER)	1	Rp95.500
6	15192-89J00-000	HOSE, FUEL (FILTER TO PUMP)	1	Rp66.500
7	15193-89J00-000	HOSE, FUEL (PUMP TO 3 WAY)	1	Rp49.500
8	15410-87J10-000	FILTER, FUEL	1	Rp108.000
9	15420-89J00-000	BRACKET, FUEL FILTER	1	Rp69.500
10	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR (CONN TO CYL)	1	-	L:610!560
11	18498-89J10-000	PROTECTOR (PUMP TO CARB)	1	Rp22.000	L:180
12	DISCONTINUE SUB: 18498-99E10-000	PROTECTOR (CYL TO FTR)	1	-	L:610!180
13	18498-89J10-000	PROTECTOR (CARB TO CARB)	1	Rp22.000	L:180!60
14	09280-26005-000 SUB: 09280B26005N000	O RING (D:2.4 ID:26.2)	1	Rp3.000
15	09355-50105-600	HOSE, FUEL (3 WAY TO CARB)	2	Rp53.000	L:600!35
16	09355-50105-600	HOSE, FUEL (3 WAY TO 3 WAY)	1	Rp53.000	L:600!50
17	09355-50105-600	HOSE, FUEL (3 WAY TO TOP)	1	Rp53.000	L:600!110
18	09367-06007-000	3 WAY (PUMP TO CARB)	2	Rp30.500
19-1	09401-09403-000 SUB: 09401B09403N000	CLIP	10	Rp3.500
19-2	09401-09404-000 SUB: 17815-90J00-000	CLIP	10	Rp16.000	MODEL:06,07
20-1	09401-10409-000 SUB: 09401-11407-000	CLIP	4	Rp7.500
20-2	09401-11423-000 SUB: 17818-90J00-000	CLIP	4	Rp19.500	MODEL:06,07
21	DISCONTINUE SUB: 09403-11315-000	CLAMP	2	-
22	09403-12317-000	CLAMP	1	Rp20.000
23	09403-13413-000 SUB: 09403-13408-000	CLAMP	1	Rp41.500
24	DISCONTINUE SUB: 01550-06107-000	BOLT	1	-
25	01550-06127-000	BOLT	1	Rp17.000
26	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
