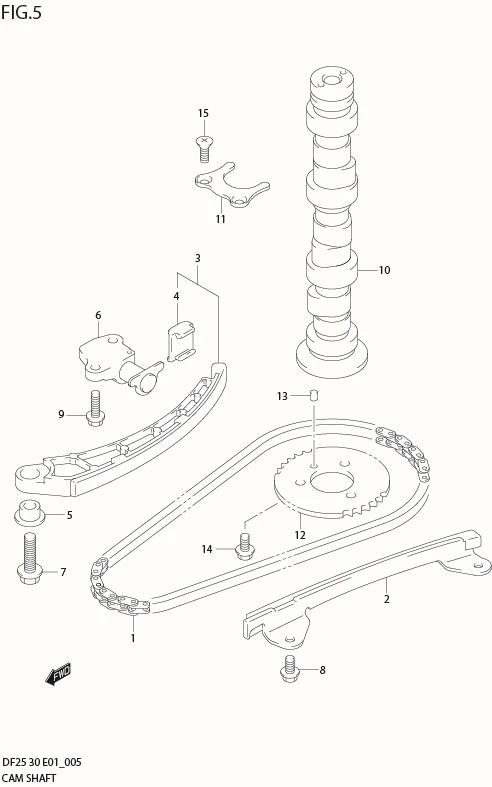

FIG 5 CAMSHAFT

FIG 5 CAMSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 12761-89J00-000	CHAIN, TIMING	1	-
2	12771-89J00-000	GUIDE, TIMING CHAIN	1	Rp263.500
3	12810-89J00-000	TENSIONER, TIMING CHAIN	1	Rp364.500	?12511-89J00
4	12813-73G00-000	?PAD, TIMING CHAIN TENSIONER	1	Rp33.000
5	12812M73G10-000	SPACER, TIMING CHAIN TENSIONER	1	Rp13.000
6-1	12831-90J02-000 SUB: 12831-90J00-000	ADJUSTER, TENSIONER	1	Rp1.018.500
6-2	12831-90J01-000	ADJUSTER, TENSIONER	1	-	MODEL:03%05
6-3	12831-90J02-000	ADJUSTER, TENSIONER	1	Rp1.018.500	MODEL:06,07
7	01550-0830A-000 SUB: 01550B0830AN000	BOLT	1	Rp4.000
8	09103-06285-000 SUB: 09103-06083-000	BOLT (6X12)	2	Rp9.000
9	01550-0620B-000 SUB: 01550B0620AN000	BOLT	2	Rp3.500
10-1	12710-89J00-000	CAMSHAFT	1	Rp1.623.000	DF25
10-2	12710-89J10-000	CAMSHAFT	1	Rp1.466.500	DF30
11	12731-89J00-000	PLATE, CAMSHAFT THRUST	1	Rp33.500
12	12741-89J00-000	SPROCKET, CAMSHAFT TIMING	1	Rp219.000
14	DISCONTINUE SUB: 01550B0612AN000	BOLT	3	-
15	02122-0612A-000 SUB: 02122B0612AN000	SCREW	2	Rp3.500
24	09261-05005-000 SUB: 09261B05005N000	PIN (5X8)	1	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
