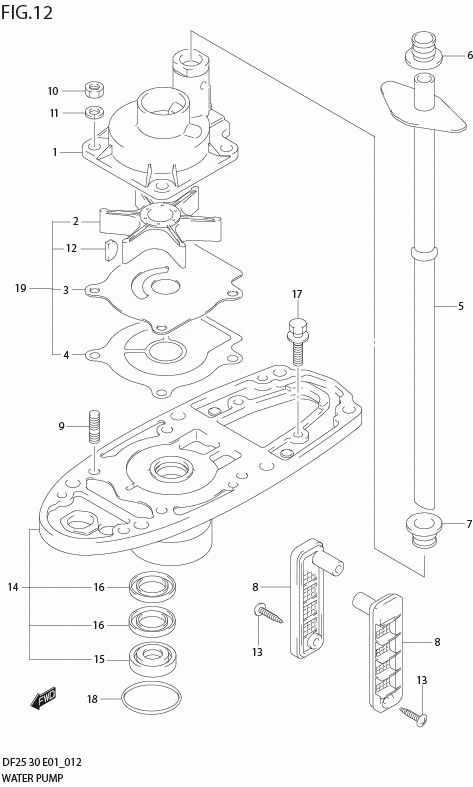

FIG 12 WATER PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17410-92L00-000 SUB: 17411-94421-000	CASE, WATER PUMP	1	Rp1.101.000
2	17461-96312-000	IMPELLER, WATER PUMP	1	Rp253.000
3	17471-94401-000	PANEL, PUMP CASE UNDER	1	Rp84.000
4-1	17472-96304-000 SUB: 17472-96301-000	GASKET, PUMP CASE UNDER	1	Rp24.000
4-2	17472-96304-000 SUB: 17472-96302-000	GASKET, PUMP CASE UNDER	1	Rp24.000	MODEL:06,07
5-1	17560-89J10-000	TUBE, WATER (S)	1	Rp183.500
5-2	17560-89J00-000	TUBE, WATER (L)	1	Rp423.000
6	DISCONTINUE SUB: 17565-96300-000	GROMMET, WATER TUBE	2	-
7	17566-96303-000 SUB: 17566-96302-000	GROMMET, WATER TUBE LOWER	1	Rp24.500
8	17631-96320-000	FILTER, WATER	2	Rp64.500
9	DISCONTINUE SUB: 09108-06069-000	BOLT, STUD	4	-
10	09140-06020-000	NUT	4	Rp13.500
11	DISCONTINUE SUB: 09162-06006-000	WASHER (6.1X12.2X1.5)	4	-
12	09420-04006-000	KEY	1	Rp42.000
13	03142-0425A-000	SCREW	2	-
14	56130-89J01-0EP	HOUSING, DRIVE SHAFT BRG	1	Rp1.849.500
15	09265-17002-000	?BEARING	1	Rp394.000
16	09282-17006-000	?OIL SEAL	2	Rp51.500
17	DISCONTINUE SUB: 09116-06106-000	BOLT (6X20)	2	-
18	09280-50005-000	O RING (D:3.6 ID:43.2)	1	Rp12.000
19	17400-96353-000 SUB: 17400-96352-000	KIT, WATER PUMP REPAIR	1	Rp233.500	OPT
