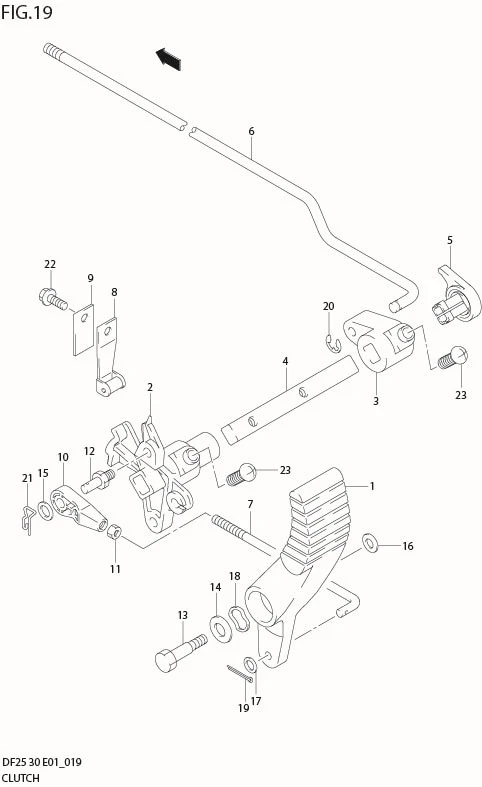

FIG 19 CLUTCH (TYPE:Q)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	21111-89J01-000	LEVER, FRONT SHIFT	1	Rp97.500	MODEL:07
1-1	21111-89J00-000	LEVER, FRONT SHIFT	1	Rp127.000
2	21120-89J00-000	PLATE, CLUTCH NOTCH	1	Rp138.500
3	21210-89J00-000	ARM, CLUTCH SHAFT	1	Rp70.500
4	21211-89J00-000	SHAFT, CLUTCH	1	Rp177.000
5	21221-89J00-000	BUSH, CLUTCH LEVER SHAFT	1	Rp33.000
6-1	23111-89J00-000	ROD, CLUTCH (S)	1	Rp79.500
6-2	23111-89J10-000	ROD, CLUTCH (L)	1	Rp170.500
7	23115-89J00-000	LINK, SHIFT LEVER	1	Rp110.500
8	23213-89J00-000	SPRING, NOTCH PLATE	1	-
9	23214-89J00-000	SPRING, NOTCH PLATE	1	Rp21.500
10	67467-89J01-000	CONNECTOR, CLUTCH LEVER LINK	1	Rp65.500
11	DISCONTINUE SUB: 67471-99E00-000	NUT, CLUTCH LEVER LINK	1	-
12	67473-89J00-000	PIN, CONNECTOR	1	Rp66.500
13	09111-06069-000	BOLT (6X28.8)	1	Rp90.000
14	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000
15	09160-06055-000	WASHER (7X12X1.0)	1	Rp13.000
16	09160-06082-000	WASHER (6.5X13X1.0)	1	Rp10.500
17	09160-08082-000	WASHER (8.5X16X1.2)	1	Rp12.000
18	09164-08017-000	WASHER, WAVE (8.5X17X0.2)	1	Rp13.000
19	09204-01002-000	PIN	1	Rp13.000
20	09383-04002-000	E RING	1	Rp6.500
21	09385-06012-000	CLIP	1	Rp12.000
22	01550-06127-000	BOLT	1	Rp17.000
23-1	02142-0616A-000 SUB: 02142B06167N000	SCREW	2	Rp3.000
23-2	01550-06207-000 SUB: 01550B06207N000	BOLT	2	Rp3.000	MODEL:07
