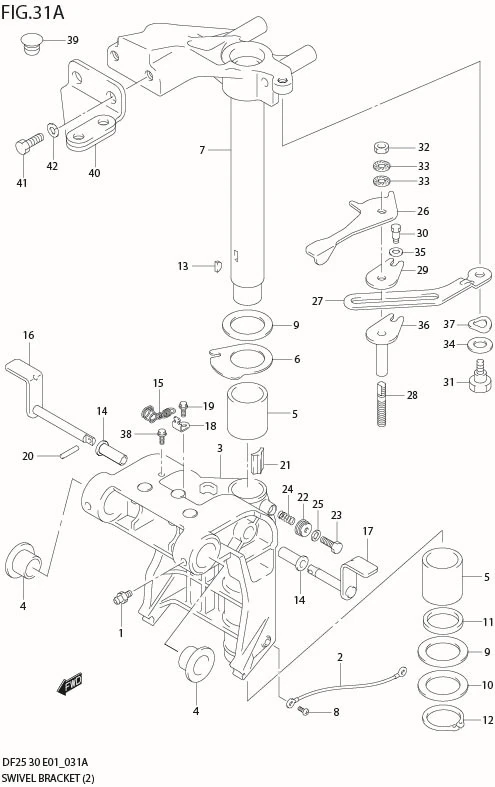

FIG 31A SWIVEL BRACKET (DF25:371155%/DF30:371163%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	3	Rp39.500
2-1	36894-95201-000	LEAD	1	Rp110.500
2-2	DISCONTINUE SUB: 36894-94401-000	LEAD (SWIVEL TO MOUNT)	1	-
3-1	43110-89J12-0EP	BRACKET, SWIVEL (S) (BLACK)	1	-	!43110-89J14-0EP
3-2	43110-89J13-0EP	BRACKET, SWIVEL (S) (BLACK)	1	-	DF25:371330%
3-3	43110-89J14-0EP	BRACKET, SWIVEL (S) (BLACK)	1	Rp2.623.000	DF25:510001%
3-4	43110-89J43-0EP	BRACKET, SWIVEL (L) (BLACK)	1	-
3-5	43110-89J44-0EP	BRACKET, SWIVEL (L) (BLACK)	1	Rp3.035.000	DF25:510001%
4-1	43211-87JL0-000 SUB: 43211-94401-000	BUSH, SWIVEL BRKT	2	Rp213.000
4-2	43211-87J00-000	BUSH, SWIVEL BRKT	2	Rp63.500	DF25:510124%
5	43711-89J10-000	BUSH, STEERING	2	Rp96.000
6	43721-89J00-000	PLATE, STEERING UPPER	1	Rp59.000
7-2	43750-89J00-0EP	BRACKET, STEERING (L) (BLACK)	1	-
7-1	43750-89J10-0EP	BRACKET, STEERING (S) (BLACK)	1	Rp2.919.000
8	09125-05050-000	SCREW (5X8)	3	Rp14.000
9	09160-39002-000	WASHER	2	Rp23.500
10	09160-39003-000	WASHER	0	Rp23.500
11	09282-39001-000	SEAL, OIL	1	Rp53.000
12	09380-38003-000	CIRCLIP	1	Rp50.500
13	DISCONTINUE SUB: 09420-05003-000	KEY	1	-
14	41226-97E00-000	BUSH, TILT LOCK LEVER	2	Rp38.500
15	41230-97E10-000	SPRING, TILT LOCK	1	Rp189.500
16	41270-89J04-000 SUB: 41270-89J01-000	LEVER, TILT LOCK STBD	1	Rp419.500
17	41280-89J03-000 SUB: 41280-89J01-000	LEVER, TILT LOCK PORT	1	Rp195.000
18	45731-96312-000 SUB: 45731-96311-000	PLATE, TILT LOCK SPRING	1	Rp43.500
19	09116-06094-000	BOLT (6X15)	1	Rp19.000
20	DISCONTINUE SUB: 09205-03012-000	PIN	1	-
21	43417-89J00-000	ADJUSTER, STEERING	1	Rp110.500
22	43412-93901-000 SUB: 43412-93900-000	COVER, STEERING ADJUSTER	1	Rp30.000
23	09100-08227-000	BOLT (8X27)	1	Rp22.000
24	09440-11022-000	SPRING	1	Rp13.000
25	09160-08082-000	WASHER (8.5X16X1.2)	1	Rp12.000	?09160-08091
26	43411-89J01-000	ADJUSTER, STEERING	1	Rp104.000	TYPE:Q
27	43415-89J00-000	PLATE, STEERING ADJUSTER	1	Rp188.000	TYPE:Q
28	43512-89J01-000	SHAFT, STEERING LOCK	1	Rp167.500	TYPE:Q
29	43514-89J10-000	PLATE, STEERING LOCK	1	Rp70.500	TYPE:Q
30	DISCONTINUE SUB: 09111-06064-000	BOLT (6X17)	1	-	TYPE:Q
31	09111-10067-000 SUB: 09111-10032-000	BOLT (10X20.4)	1	Rp52.500	TYPE:Q
32	09159-08126-000	NUT	1	Rp23.000	TYPE:Q
33	43516-89J00-000	WASHER, STEERING ADJUSTER	2	Rp110.500	TYPE:Q
34	09160-12067-000	WASHER (12.5X23X1.0)	1	Rp19.000	TYPE:Q
35	09160-06082-000	WASHER	1	Rp10.500	TYPE:Q
36	43510-89J00-000	PLATE, STEERING LOCK	1	-	TYPE:Q
37	09164-14008-000	WASHER, WAVE	1	Rp19.500	TYPE:Q
38	09116-06127-000	BOLT (6X12)	1	Rp27.000	TYPE:T
39	09250-14006-000 SUB: 09250B14006N000	PLUG	1	Rp18.500	TYPE T
40	43755-89J00-000	ATTACHMENT, STEERING BRKT	1	Rp149.500	TYPE:T
41	DISCONTINUE SUB: 09100-10270-000	BOLT (10X25)	2	-	TYPE:T
42	09162-10005-000	LOCK WASHER (10.2X18.4X2.5)	2	Rp13.000	TYPE:T
