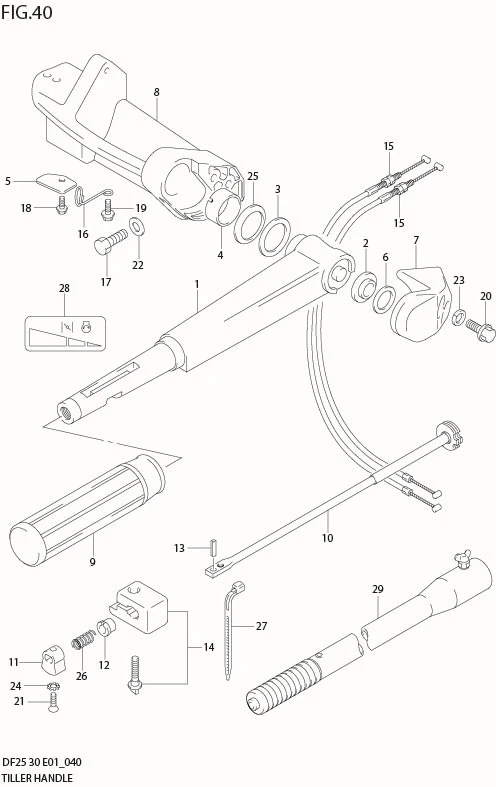

FIG 40 TILLER HANDLE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	63111-96322-0EP	HANDLE, TILLER (BLACK)	1	Rp1.184.000	?63111-96321-0EP
2	63114-95L00-000 SUB: 63114-94300-000	SPACER, HANDLE COVER	1	Rp80.000
3	63115-96310-000	SPACER, HANDLE COVER INSIDE	1	Rp57.000
4	63115-89J00-000	BUSH, TILLER HANDLE	1	Rp77.500
5	63117-89J00-000	COVER, THROTTLE CABLE	1	Rp27.000
6	63118-94300-000	SHIM, TILLER HANDLE	0	Rp33.500
7	63121-89J02-0EP	COVER, TILLER HANDLE (BLACK)	1	Rp1.124.500
8-1	63131-89J00-0EP	BRACKET, TILLER HANDLE (BLACK)	1	-	MODEL:00
8-2	63131-89J11-0EP	BRACKET, TILLER HANDLE (BLACK)	1	Rp1.369.500	MODEL:01%07
9	63210-93E30-000	GRIP, HANDLE	1	Rp293.000
10	63220-96320-000	ROD, HANDLE	1	Rp398.000	?63220-96310
11	63223-89J00-000	STOPPER, HANDLE ROD	1	Rp51.000
12	63225-93200-000	BUSH, HANDLE ROD	1	Rp37.000
13	63227-93200-000	PIN, HANDLE ROD	1	Rp21.000
14	63240-97E10-000	ADJUSTER, HANDLE GRIP	1	Rp279.000
15	63610-89J10-000	CABLE, THROTTLE	2	-	?63610-89J00
16	65793-89J00-000	HOLDER, FUEL HOSE	1	Rp42.000
17	DISCONTINUE SUB: 09100-10155-000	BOLT (10X50)	2	-
18	DISCONTINUE SUB: 09116-05010-000	BOLT (5X12)	1	-
19	09116-06127-000	BOLT (6X12)	1	Rp27.000
20	09116-08137-000 SUB: 09116-08121-000	BOLT (8X22)	2	Rp49.000	?09116-08103
21	09126-06015-000	SCREW (6X23)	1	Rp19.000
22	09160-10098-000	WASHER (10X18X1.0)	2	Rp15.500
23	DISCONTINUE SUB: 09162-08007-000	LOCK WASHER (8.2X15.4X2.0)	2	-	MODEL:00
24	09163-06001-000	WASHER	1	Rp11.000
25	09164-32005-000	WAVE WASHER	1	Rp41.500
26	09440-12027-000	SPRING	1	Rp13.000
27	36990-25G00-000 SUB: 09407-14403L000	CLAMP	1	Rp13.000
28	69714-89J00-000	MARK, HANDLE GRIP	1	Rp36.500
29	DISCONTINUE SUB: 63300-93E00-000	BAR ASSY, EXTENSION	1	-	OPT
