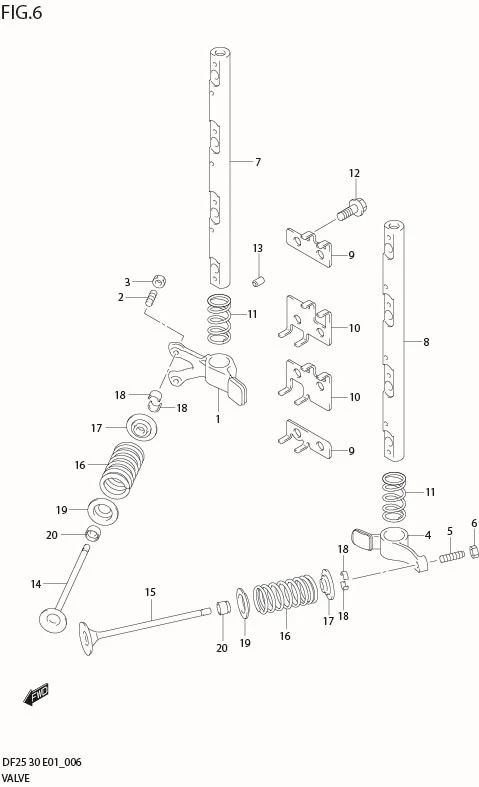

FIG 6 VALVE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12841-89J00-000	ARM, INTK VALVE ROCKER	3	Rp344.500
2	12842M32411-000	SCREW	6	Rp11.000
3	12843-32400-000	NUT	6	Rp19.000
4	12851-89J00-000	ARM, EX VALVE ROCKER	3	Rp215.000
5	12842M32411-000	SCREW, VALVE ADJUSTING	3	Rp11.000
6	12843-32400-000	NUT, VALVE ADJUSTING	3	Rp19.000
7	12860-89J00-000	SHAFT, INTK ROCKER ARM	1	Rp367.500
8	12870-89J00-000	SHAFT, EX ROCKER ARM	1	Rp367.500
9	12881-89J00-000	BRACKET, ROCKER ARM SHAFT	2	Rp16.000
10	12882-89J00-000	BRACKET, ROCKER ARM SHAFT	2	Rp20.000
11	12891-89J00-000	SPRING, ROCKER ARM	6	Rp14.500
12	09103-07011-000	BOLT (7X24)	8	Rp11.500
13	09206-06005-000 SUB: 09206B06005N000	PIN, KNOCK	4	Rp14.500	?09206-06004
14	DISCONTINUE SUB: 12911-85100-000	VALVE, INTK	6	-
15	DISCONTINUE SUB: 12915-89J00-000	VALVE, EX	3	-
16	DISCONTINUE SUB: 12921-53A00-000	SPRING, VALVE	9	-
17	12931-89J00-000	RETAINER, VALVE SPRING	9	Rp53.000
18	12932-24400-000	COTTER, VALVE	18	Rp13.000
19	DISCONTINUE SUB: 12933-86510-000	SEAT, VALVE SPRING	9	-
20	12934M68K00-000 SUB: 09289M05012-000	SEAL, VALVE STEM	9	Rp16.000
