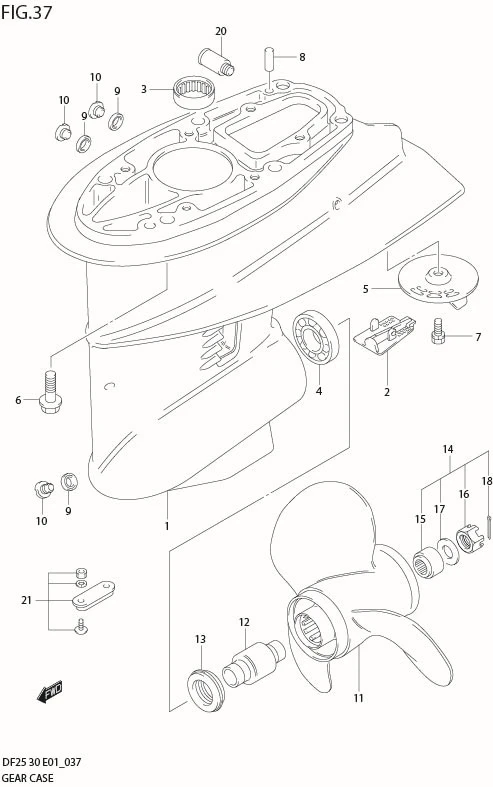

FIG 37 GEAR CASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	55100-89J01-0EP	CASE ASSY, GEAR (BLACK)	1	Rp4.271.000
2	DISCONTINUE SUB: 55114-96310-000	?COVER, GEAR CASE UNDER	1	-
3	09263-20046-000	?BEARING	1	Rp531.500
4	09265-25015-000	?BEARING	1	Rp429.000	TAPER ROLLER
5	55125-96310-000	TRIM TAB	1	Rp171.500
6	09116-08128-000	BOLT (8X40)	6	Rp124.500	?09116-08098
7	09117-08109-000 SUB: 09117-08037-000	BOLT (8X16)	1	Rp24.500
8	DISCONTINUE SUB: 09202-06015-000	KNOCK PIN	2	-
9	09168-10022-000	GASKET	3	Rp10.500
10	09248-10008-000	PLUG, DRAIN	3	Rp42.500
11-4	58100-91L30-019 SUB: 58100-96440-019	PROPELLER (3X10-1/4X13)	1	Rp2.122.500	P1301
11-7	58100-96372-019 SUB: 58100-96370-019	PROPELLER (3X10-1/4X9)	1	Rp2.343.500	OPT P911
11-6	58100-95D01-019 SUB: 58100-95D00-019	PROPELLER (3X10-1/4X14)	1	Rp1.966.500	P1401
11-5	DISCONTINUE SUB: 58200-96400-000	PROPELLER (3X10-1/4X13)	1	-	OPT PS1300 SUS
11-3	58100-96482-019 SUB: 58100-96430-019	PROPELLER (3X10-1/4X12)	1	Rp2.343.500	P1201
11-2	58100-91L50-019 SUB: 58100-96420-019	PROPELLER (3X10-1/4X11)	1	Rp2.020.500	P1101
11-1	58100-96472-019 SUB: 58100-96410-019	PROPELLER (3X10-1/4X10)	1	Rp2.343.500	P1001
12	58120-96401-000	?BUSH, PROPELLER	1	Rp362.500
13	57632-96400-000	STOPPER, PROPELLER BUSH	1	Rp1.135.500
14	57630-96300-000	PROPELLER NUT KIT	1	Rp211.500	OPT
15	DISCONTINUE SUB: 57633-96300-000	?SPACER, PROPELLER NUT	1	-
16	DISCONTINUE SUB: 09141-14008-000	?NUT	1	-
17	DISCONTINUE SUB: 09160-14028-000	?WASHER (14.5X30X2.5)	1	-
18	09204-03003-000	?PIN, COTTER	1	Rp17.500
19	25700-95D00-000	SEALING KIT, GEAR CASE	1	-	OPT DRAWING NOT SHOWN
20	55181-95200-000	ATTACHMENT, FLUSH HOSE	1	Rp62.500	OPT
21	55300-95500-000	ZINC ASSY, PROTECTION	1	Rp187.000	OPT
