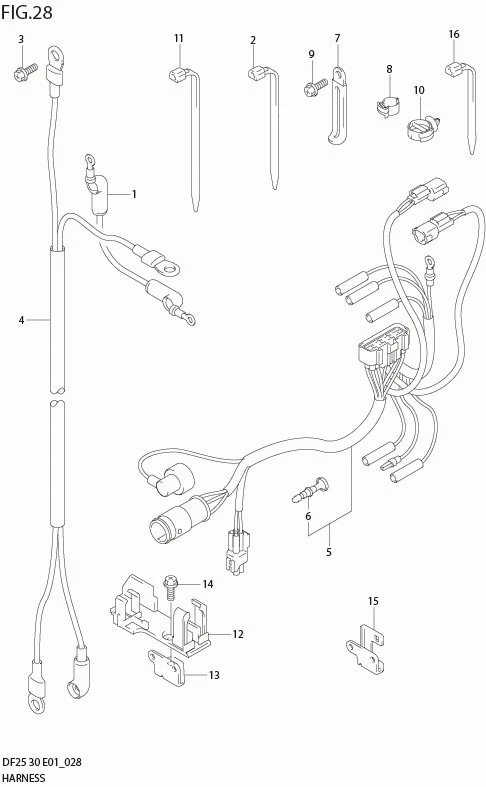

FIG 28 HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33820-89E01-000	CABLE, STARTER MOTOR SUB	1	Rp115.500	ELECTRIC STARTER
2	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	1	Rp13.000	ELECTRIC STARTER
3	02162-06167-000	SCREW	1	Rp7.500	ELECTRIC STARTER
4	33810-93E02-000	CABLE, STARTER	1	Rp1.096.000	ELECTRIC STARTER
5-1	36610-89J00-000	HARNESS ASSY, WIRING	1	Rp650.000	TYPE:Q
5-2	36610-89J10-000	HARNESS ASSY, WIRING	1	Rp996.000	TYPE:QR
5-3	36610-89J30-000	HARNESS ASSY, WIRING	1	Rp1.035.000	TYPE:T
5-4	36610-89J50-000	HARNESS ASSY, WIRING	1	Rp966.500	TYPE Q
5-5	36610-89J60-000	HARNESS ASSY, WIRING	1	Rp1.223.000	TYPE:T
5-6	36610-89JV0-000	HARNESS ASSY, WIRING	1	Rp1.035.000	TYPE:T
6	36615-96300-000	?TERMINAL, RESIN	1	Rp11.000	TYPE:Q/QR
7	DISCONTINUE SUB: 09404B06435N000	CLAMP (L:135)	1	-	TYPE:Q
8-1	DISCONTINUE SUB: 09408-00184-000	CLAMP	2	-	TYPE:Q
8-2	DISCONTINUE SUB: 09408-00184-000	CLAMP	1	-	TYPE:Q
9	02162-06127-000	SCREW	1	Rp12.500	TYPE:Q
10	09403-20308-000	CLAMP	2	Rp20.500	MANUAL STARTER
11	09407-18402-000	CLAMP (L:165)	1	Rp8.000	TYPE:QR/T
12	36616-89J00-000	HOLDER, CONNECTOR	1	Rp32.500	TYPE:QR/T
13	36617-89J00-000	BRACKET, HOLDER CONNECTOR	1	Rp33.000	TYPE:QR/T
14	02162-06127-000	BOLT	1	Rp12.500	TYPE:QR/T
15	36616-89J10-000	HOLDER, CONNECTOR	1	Rp34.500	TYPE:T
16	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	1	Rp13.000	TYPE:Q
