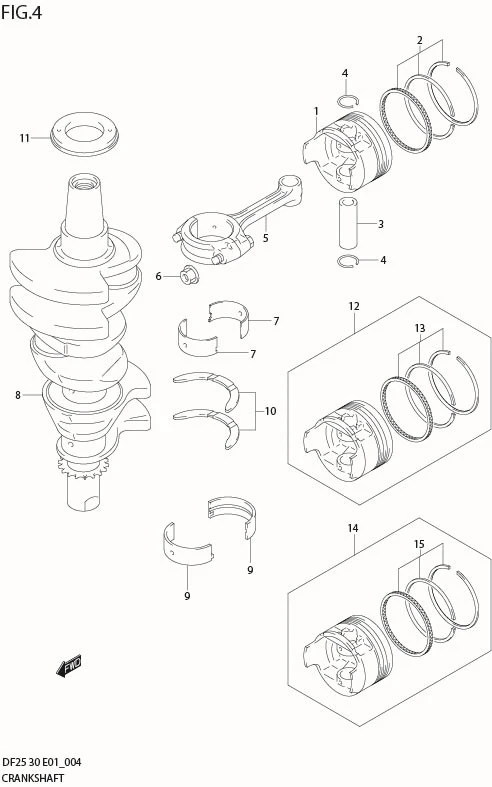

FIG 4 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12111-89J00-000	PISTON	3	Rp344.500
2	12140-51F10-000	RING SET, PISTON	3	Rp516.500
3	12151-60D00-000	PIN, PISTON	3	Rp105.500	?12151-78110
4	09381-16001-000 SUB: 09381B16001N000	CIRCLIP	6	Rp2.500
5	12160-60D02-000	CONNROD	3	Rp1.290.500
6	09159M08033-000	?NUT	6	Rp14.000
7-1	DISCONTINUE SUB: 12181-81401-0A0	BEARING, CONNROD	6	-
7-2	12181-81401-025	BEARING, CONNROD (US:0.25)	6	Rp142.500	OPT
8	12220-89J01-000	CRANKSHAFT	1	Rp5.780.000
9-3	DISCONTINUE SUB: 12341-89J00-0C0	BEARING, CRANKSHAFT	8	-	NON
9-7	12341-89J00-050	BEARING, CRANKSHAFT (US:0.50)	8	Rp59.000	OPT
9-6	12341-89J00-025	BEARING, CRANKSHAFT (US:0.25)	8	Rp65.000	OPT
9-5	DISCONTINUE SUB: 12341-89J00-0E0	BEARING, CRANKSHAFT	8	-	BLUE
9-4	DISCONTINUE SUB: 12341-89J00-0D0	BEARING, CRANKSHAFT	8	-	YELLOW
9-2	DISCONTINUE SUB: 12341-89J00-0B0	BEARING, CRANKSHAFT	8	-	BLACK
9-1	DISCONTINUE SUB: 12341-89J00-0A0	BEARING, CRANKSHAFT	8	-	GREEN
10	12300-78830-000	BEARING, CRANKSHAFT THRUST	1	Rp188.000
11	DISCONTINUE SUB: 09283-32043-000	SEAL, OIL	1	-
12	12100-89J00-025	PISTON (OS:0.25)	3	-	OPT
13	12140-51F10-025	?RING SET, PISTON (OS:0.25)	3	Rp564.000	OPT
14	12100-89J00-050	PISTON (OS:0.50)	3	Rp1.168.500	OPT
15	12140-51F10-050	?RING SET, PISTON (OS:0.50)	3	Rp295.500	OPT
