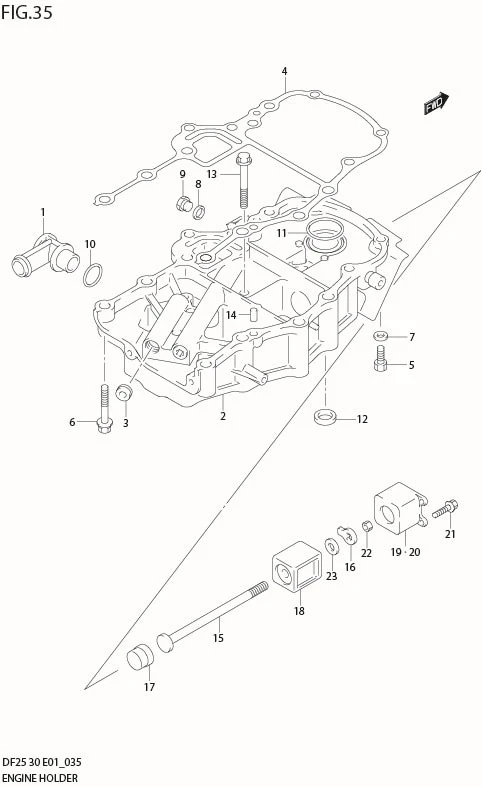

FIG 35 ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 17573-89J02-000	PIPE, WATER RETURN HOSE	1	-	?17573-99E00
2	DISCONTINUE SUB: 51110-89J05-0EP	HOLDER, ENGINE (BLACK)	1	-
3	DISCONTINUE SUB: 09246-08004-000	?PLUG	2	-
4	DISCONTINUE SUB: 51211-89J00-000	GASKET, ENGINE HOLDER	1	-
5	09106-08146-000	BOLT (8X30)	2	Rp25.500
6	09116-08156-000 SUB: 09116-08097-000	BOLT (8X50)	3	Rp40.000
7	09160-08082-000	WASHER (8.5X16X1.2)	2	Rp12.000
8	09168-12017-000	GASKET (12X17X1.0)	1	Rp13.000
9	DISCONTINUE SUB: 09248-12007-000	PLUG	1	-
10	DISCONTINUE SUB: 09280-20006-000	O RING (D:1.9 ID:19.8)	1	-
11	DISCONTINUE SUB: 09280-42003-000	O RING (D:2.4 ID:41.7)	1	-
12	09282-17009-000	OIL SEAL	2	Rp69.000
13	01550-08657-000	BOLT	1	Rp28.500
14	04221-08149-000	KNOCK PIN	2	Rp12.500
15	54112-89J00-000	BOLT, UPPER MOUNT	2	-
16	54113-89J00-000	WASHER, UPPER MOUNT BOLT	2	-
17	54125-89J00-000	REVERSE THRUST, UPPER MOUNT	2	Rp26.000
18	54130-89J00-000	MOUNT, UPPER	2	-
19	54148-89J00-0EP	COVER, UPPER MOUNT STBD	1	Rp1.052.500
20	54149-89J00-0EP	COVER, UPPER MOUNT PORT	1	Rp1.052.500
21	09116-06121-000	BOLT (6X25)	6	Rp18.000
22	09159-10050-000	NUT (M10)	2	Rp23.500
23	DISCONTINUE SUB: 09160-10081-000	WASHER (10X20X3.0)	2	-
