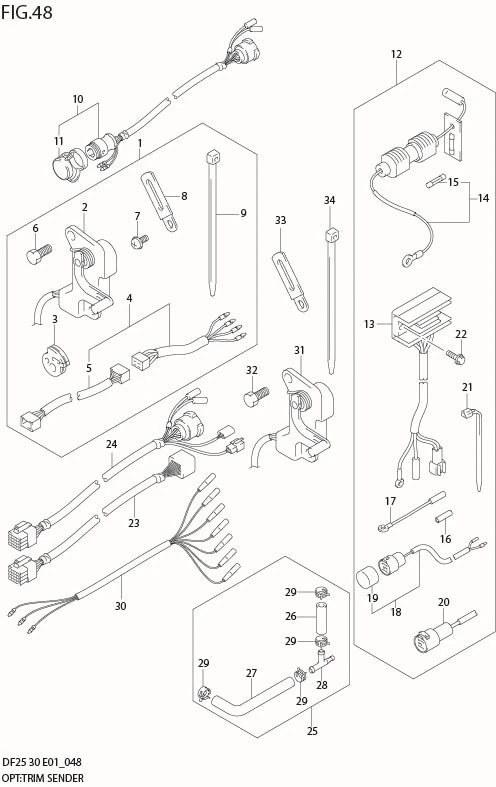

FIG 48 OPT:TRIM SENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 34804-94711-000	SENDER SET, TRIM	1	-	MODEL:00,01
2	34801-94710-000	?SENDER, TRIM	1	Rp1.594.500
3	36658-95600-000	?GROMMET, TRIM SENDER WIRE	1	Rp52.500
4	DISCONTINUE SUB: 36680-92E00-000	?WIRE ASSY, TRIM METER	1	-
5	36682-92E00-000	??WIRE, TRIM GAUGE	1	Rp879.500
6	09100-06113-000	?BOLT (6X16)	2	Rp11.500
7	09125-06063-000	?SCREW (6X10)	1	Rp15.000
8	DISCONTINUE SUB: 09404-06432L000	?CLAMP	1	-
9-1	36990-25G00-000 SUB: 09407-14403L000	?CLAMP	1	Rp13.000
9-2	09407-14407-000	?CLAMP	1	Rp18.500
10-2	36620-95302-000	WIRE, REMOCON EXTENSION	1	Rp1.027.000	L:2000 MODEL:00%04
10-1	36620-87D20-000	WIRE, REMOCON EXTENSION	1	Rp1.420.500	L:5000 MODEL:00%04
11	36631-94300-000	?CAP	1	Rp32.000
12-1	39600-89J00-000	RECEPTACLE SET, LIGHTING	1	Rp1.819.500	MANUAL STARTER
12-2	39600-89J10-000	RECEPTACLE SET, LIGHTING	1	Rp1.625.500	MODEL:02%07
13-1	32800-89J00-000	?RECTIFIER	1	Rp1.151.500
13-2	32800-89J11-000 SUB: 32800-89J10-000	?RECTIFIER	1	Rp1.470.000	MODEL:02%07
14	DISCONTINUE SUB: 36740-95253-000	?CASE ASSY, FUSE	1	-
15	09481-20001-000	??FUSE (20A)	1	Rp16.500
16	37132-93700-000	?CONNECTOR, LEAD WIRE	1	Rp17.000
17	DISCONTINUE SUB: 37801-98300-000	?LEAD, RECEPTACLE GROUND	1	-
18	39601-95D01-000 SUB: 39601-95D00-000	?RECEPTACLE	1	Rp380.500
19	36634-93910-000	??CAP	1	Rp27.500
20	39602-93900-000	?PLUG, LIGHTING	1	Rp391.500
21	36990-25G00-000 SUB: 09407-14403L000	?CLAMP	1	Rp13.000
22	01550-06207-000 SUB: 01550B06207N000	?BOLT	2	Rp3.000
23-1	36620-93J12-000 SUB: 36620-93J10-000	WIRE ASSY, REMOCON EXTENSION	1	Rp1.057.500	L:2000 MODEL:05%07
23-2	36620-93J42-000 SUB: 36620-93J40-000	WIRE ASSY, REMOCON EXTENSION	1	Rp1.324.500	L:3000 MODEL:05%07
24	36620-93J32-000 SUB: 36620-93J30-000	WIRE ASSY, REMOCON ADAPTER	1	Rp1.162.500	L:2000 MODEL:05%07
25	34660-89J00-000	SUB KIT, WATER PRESSURE GAUGE	1	Rp45.500
26	09352-50006-600 SUB: 09352-50903-600	?HOSE	1	Rp46.000	L:600!70
27	09352-50006-600 SUB: 09352-50903-600	?HOSE	1	Rp46.000	L:600!140
28	09367-06006-000	?3 WAY	1	Rp23.500
29-1	09401-08411-000	?CLIP	4	Rp12.500
29-2	09401-08413-000 SUB: 17814-90J00-000	?CLIP	4	Rp19.500	MODEL:06,07
30	36630-92E00-000	WIRE ASSY, INSTRUMENT	1	Rp492.000	MODEL:04
31	34801-99E05-000 SUB: 34801-99E03-000	SENDER ASSY, TRIM	1	Rp2.526.500	TYPE:T MODEL:05%07
32	09100-06113-000	BOLT (6X16)	2	Rp11.500	TYPE:T MODEL:05%07
33	DISCONTINUE SUB: 09404-06432L000	CLAMP	1	-	TYPE:T MODEL:05%07
34	09407-14407-000	CLAMP (L:145)	2	Rp18.500	TYPE:T MODEL:05%07
