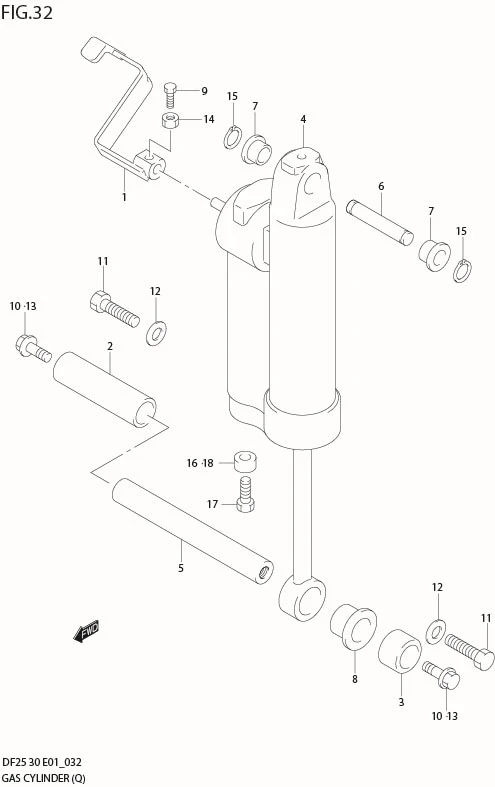

FIG 32 GAS CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	45260-89J01-000 SUB: 45260-89J00-000	LEVER, RELEASE	1	Rp360.000
2	47225-89J00-000	COLLAR, TILT CYL LOWER STBD	1	Rp108.000
3	47226-89J00-000	COLLAR, TILT CYL LOWER PORT	1	Rp53.000
4	47400-89J00-000	CYLINDER ASSY, GAS	1	-
5-1	48121-89J00-000	SHAFT, TILT CYL LOWER	1	-
5-2	48121-89J10-000	SHAFT, TILT CYL LOWER	1	Rp520.000	MODEL:01%07
6-1	48321-89J00-000	SHAFT, TILT CYL UPPER (S)	1	Rp82.500
6-2	48321-89J11-000 SUB: 48321-89J10-000	SHAFT, TILT CYL UPPER (S)	1	Rp131.000	DF25:371330%
6-3	48321-89J11-000 SUB: 48321-89J10-000	SHAFT, TILT CYL UPPER (L)	1	Rp131.000
7	48325-89J00-000	BUSH, TILT CYL UPPER	2	Rp25.500
8	48326-89J00-000	BUSH, TILT CYL LOWER	1	Rp45.500
9	09100-06113-000	BOLT (6X16)	1	Rp11.500
10	09116-08137-000 SUB: 09116-08121-000	BOLT (8X22)	2	Rp49.000	MODEL:00
11	DISCONTINUE SUB: 09100-10220-000	BOLT (10X35)	2	-	MODEL:01%03
12	DISCONTINUE SUB: 09160-10081-000	WASHER (10X20X3.0)	2	-	MODEL:01%03
13	09116-10131-000	BOLT (10X35)	2	Rp49.000	MODEL:04%07
14	09140-06020-000	NUT	1	Rp13.500
15	09380-12002-000	SNAP RING	2	Rp12.500
16	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	1	Rp79.500
17-1	DISCONTINUE SUB: 09128-06021-000	BOLT	1	-
17-2	09103-06281-000	BOLT	1	Rp20.500	MODEL:06,07
18	DISCONTINUE SUB: 55321-87J10-000	ANODE (MAGNESIUM)	1	-	OPT
