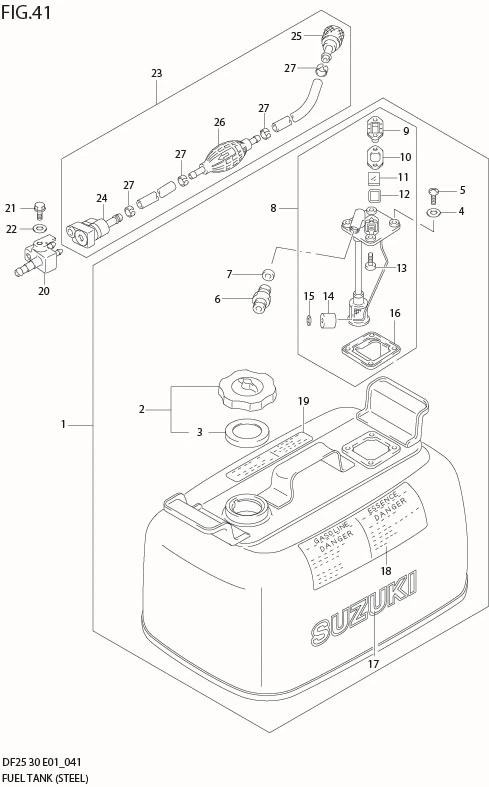

FIG 41 FUEL TANK (STEEL 24L)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65800-92824-000	TANK SET, FUEL	1	-
2	DISCONTINUE SUB: 65510-92D00-000	?CAP, FUEL TANK	1	-
3	65561-92D00-000	??GASKET	1	Rp44.000
4	09168-06026-000	?GASKET	4	Rp20.000
5	02142-0616A-000 SUB: 02142B06167N000	?SCREW	4	Rp3.000
6	DISCONTINUE SUB: 65740-95500-000	?PLUG, FUEL CONNECTOR	1	-
7	09168-12015-XC0 SUB: 09168-12015-000	?GASKET	1	Rp30.000
8	DISCONTINUE SUB: 65850-92D01-000	?GAUGE, FUEL	1	-
9	65855-92D10-000	??COVER, GAUGE	1	Rp21.000
10	65854-92D20-000	??GASKET, GAUGE COVER	1	Rp17.000
11	65853-92D00-000	??LENS	1	Rp16.500
12	65854-92D30-000	??GASKET, GAUGE LENS	1	Rp17.000
13	DISCONTINUE SUB: 03222-04083-000	??SCREW	2	-
14	65864-92D00-000	??FLOAT	1	Rp35.500
15	DISCONTINUE SUB: 65866-92D00-000	??PUSH NUT	1	-
16	65871-92D00-000	??GASKET, FUEL	1	Rp29.500
17	DISCONTINUE SUB: 61441-98500-000	?MARK, ORNAMENT	1	-
18	65316-93331-000	?MARK, FUEL CAUTION	1	Rp44.000
19	65317-95260-000	?MARK, FUEL CAPACITY	1	Rp31.500
20	DISCONTINUE SUB: 65720-986B0-000	PLUG, FUEL CONNECTOR	1	-
21	09103-06237-000	BOLT, FUEL CONNECTOR PLUG	1	Rp21.500	?65729-986B0
22	09160-06085-000	WASHER (6.5X15X1.0)	1	Rp9.500
23	65700-87J16-000 SUB: 65700-87J10-000	HOSE, FUEL	1	Rp1.189.000
24	65750-87J11-000 SUB: 65750-87J10-000	?SOCKET, FUEL HOSE	1	Rp250.500
25	65750-95501-000 SUB: 65750-95500-000	?SOCKET, FUEL HOSE	1	Rp374.000
26	DISCONTINUE SUB: 65770-95504-000	?PUMP, SQUEEZE	1	-
27	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
