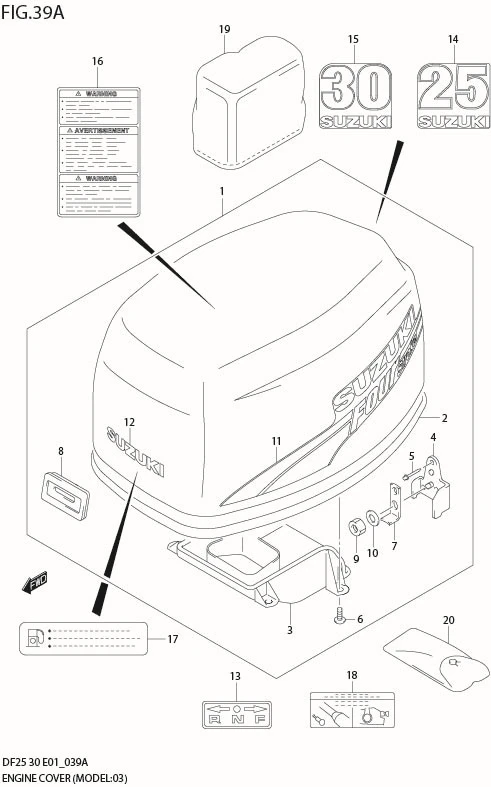

FIG 39A ENGINE COVER (MODEL:03%07)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	61400-89800-0EP	COVER SET, ENGINE (BLACK)	1	-	MANUAL STARTER
1-1	61400-89890-0EP	COVER SET, ENGINE (BLACK)	1	-	ELECTRIC STARTER
2	61112-89J00-000	?RUBBER, ENGINE COVER	1	Rp633.000
3	61433-89J00-000	?COVER, AIR INTAKE INNER	1	Rp173.500
4	61620-89J00-000	?BRACKET, REAR FASTENER	1	Rp178.000
5	09229-04025-000	?RIVET	3	Rp25.000
6	02142-0616A-000 SUB: 02142B06167N000	?SCREW	4	Rp3.000
7	61611-89J00-000	?FASTENER, REAR	1	Rp70.500
8	61622-89J00-000	?SEAL, RECOIL STARTER	1	Rp70.000	MANUAL STARTER
9	09140-06020-000	?NUT	1	Rp13.500
10	09160-06094-000	?WASHER (6.5X15X1.5)	1	Rp11.000
11-1	61443-89J30-000	?STRIPE, STBD	1	-
11-2	61453-89J30-000	?STRIPE, PORT	1	-
12	68271-43400-Y2D	?MARK, EMBLEM FRONT (SILVER)	1	-
13	21131-96010-000	MARK, CLUTCH SHIFT	1	Rp12.000	?21131-96003
14	61435-89J60-000	MARK, EMBLEM REAR	1	-	DF25
15	61435-89J70-000	MARK, EMBLEM REAR	1	-	DF30
16	61458-99E31-000	LABEL, ENGINE COVER	1	Rp117.500
17	DISCONTINUE SUB: 69716-99E13-000	LABEL, FUEL LIMITATION	1	-
18	61912-89J01-000	LABEL, ENGINE START	1	Rp61.000
19	DISCONTINUE SUB: 68110-94400-000	COVER, WEATHER	1	-	OPT
20	09800-81821-000	TOOL SET	1	-
