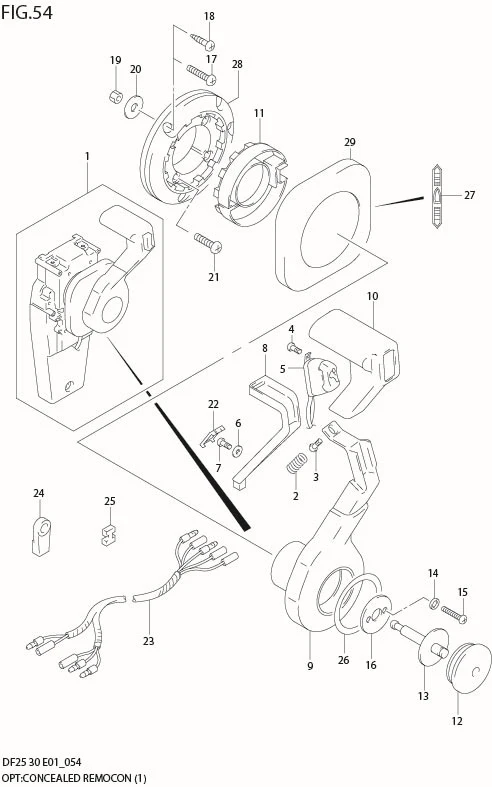

FIG 54 OPT:CONCEALED REMOCON (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	67200-93J34-000 SUB: 67200-93J30-000	REMOTE CONTROL ASSY, CONCEALD	1	Rp4.541.500	MODEL:05,06
1-1	67200-92E52-000	REMOTE CONTROL ASSY, CONCEALD	1	Rp2.990.000
2	67298-92E50-000	?SPRING	1	Rp14.000
3	67296-94310-000	?SCREW	1	Rp14.500
4	67295-92E10-000	?SCREW (3X12)	2	Rp19.500
5	37850-92E23-000	?SWITCH ASSY, PTT	1	-
6	67288-92E60-000	?WASHER	1	Rp19.000
7	09125-04021-000	?SCREW (4X20)	1	Rp15.000
8	67255-92E50-000	?ARM, NEUTRAL LOCK	1	Rp68.000
9	67251-92E50-000	?LEVER	1	Rp839.500
10	67261-92E50-000	?GRIP	1	Rp93.500
11	67256-92E50-000	?HOLDER, NEUTRAL LOCK	1	Rp98.500
12	67257-92E00-000	?CAP, LEVER	1	Rp95.000
13	67242-92E50-000	?SHAFT, FREE ACC	1	Rp47.500
14	DISCONTINUE SUB: 67288-92E20-000	?WASHER	6	-
15	67296-88D10-000	?SCREW (5X16)	4	Rp30.000
16	67288-92E70-000	?WASHER	1	Rp45.500
17	67296-88D20-000	?SCREW (6X35)	3	Rp24.000
18	67295-92E50-000	?SCREW (6X30)	3	Rp19.000
19	67287-92E50-000	?NUT	3	Rp32.000
20	09160-06104-000	?WASHER	3	Rp18.000
21	67296-88D30-000	?SCREW (5X30)	4	Rp24.000
22	67254-92E50-000	?COVER, LOCK ARM	1	Rp55.500
23-1	36890-92E00-000	?WIRING ASSY	1	Rp282.000
23-2	36890-93J01-000 SUB: 36890-93J00-000	?WIRING ASSY	1	Rp665.000	FOR 67200-93J30
24	67275-95600-000	?END, CABLE	2	Rp70.500
25	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
26	67283-92E50-000	?DECAL, LEVER	1	Rp114.500
27	67284-92E50-000	?DECAL, CLUTCH	1	Rp114.500
28	67274-92E50-000	?BASE	1	Rp188.000
29	67211-92E50-000	?COVER	1	Rp324.500
