DF25 30 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 UNDER OIL SEAL FIG 4 CRANKSHAFT FIG 5 CAMSHAFT FIG 6 VALVE FIG 7 INLET CASE FIG 8 CARBURETOR FIG 9 SILENCER FIG 10 EXHAUST COVER FIG 11 FUEL PUMP FIG 12 WATER PUMP FIG 13 THERMOSTAT FIG 14 RECOIL STARTER FIG 15 THROTTLE CONTROL (TYPE:Q)FIG 16 THROTTLE CONTROL (TYPE:QR/T)FIG 17 OIL PUMP FIG 18 OIL PAN FIG 19 CLUTCH (TYPE:Q)FIG 20 CLUTCH (TYPE:QR/T)FIG 21 SHIFT ROD FIG 22 DRIVE SHAFT FIG 23 STARTING MOTOR FIG 24 MAGNETO FIG 25 RECTIFIER FIG 26 IGNITION COIL FIG 27 SWITCH FIG 28 HARNESS FIG 29 PTT RELAY (TYPE:T)FIG 30 CLAMP BRACKET FIG 31 SWIVEL BRACKET FIG 31A SWIVEL BRACKET (DF25:371155%/DF30:371163%)FIG 32 GAS CYLINDER FIG 33 POWER TRIM (TYPE:T)FIG 34 PTT MOTOR (TYPE:T)FIG 35 ENGINE HOLDER FIG 36 DRIVE SHAFT HOUSING FIG 37 GEAR CASE FIG 38 SIDE COVER FIG 39 ENGINE COVER (MODEL:00%02)FIG 39A ENGINE COVER (MODEL:03%07)FIG 40 TILLER HANDLE FIG 41 FUEL TANK (STEEL 24L)FIG 42 FUEL TANK (RESIN)FIG 43 REMOTE CONTROL BOX (MODEL:00%03)FIG 43A REMOTE CONTROL BOX (MODEL:04)FIG 43B REMOTE CONTROL BOX (MODEL:05%07)FIG 44 REMOCON CABLE FIG 45 DRAG LINK FIG 46 OPT:STARTING MOTOR FIG 47 OPT:METER FIG 47A OPT:METER (MODEL:05%07)FIG 48 OPT:TRIM SENDER FIG 49 OPT:SWITCH PANEL FIG 49A OPT:SWITCH (MODEL:05%07)FIG 50 OPT:TRIM SWITCH (MODEL:00%04)FIG 51 OPT:TILLER HANDLE (MODEL:01,02)FIG 52 OPT:TOP MOUNT SINGLE (1)FIG 53 OPT:TOP MOUNT SINGLE (2)FIG 54 OPT:CONCEALED REMOCON (1)FIG 55 OPT:CONCEALED REMOCON (2)FIG 56 OPT:REMOCON ATTACHMENT FIG 57 OPT:REMOCON PARTS SET FIG 58 OPT:GASKET SET FIG 59 OPTIONAL

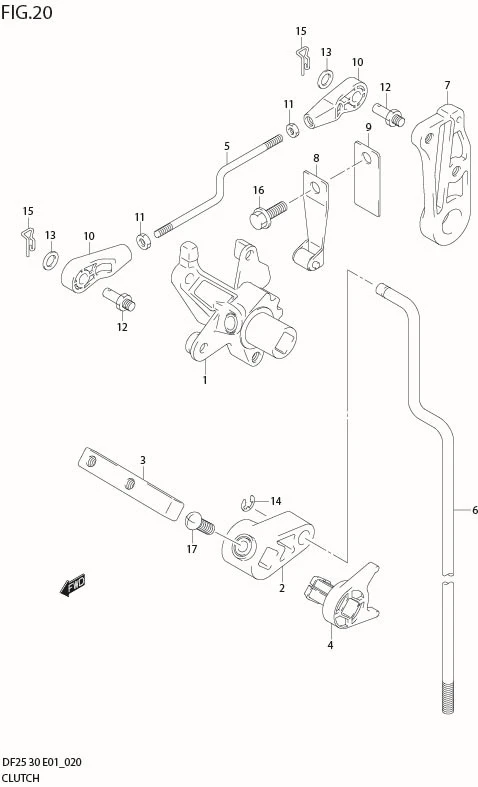

FIG 20 CLUTCH (TYPE:QR/T)

FIG 20 CLUTCH (TYPE:QR/T)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	21120-89J00-000	PLATE, CLUTCH NOTCH	1	Rp138.500
2	21210-89J00-000	ARM, CLUTCH SHAFT	1	Rp70.500
3	21211-89J00-000	SHAFT, CLUTCH	1	Rp177.000
4	21221-89J00-000	BUSH, CLUTCH LEVER SHAFT	1	Rp33.000
5	21241-89J00-000	LINK, CLUTCH LEVER	1	Rp94.500
6-1	23111-89J00-000	ROD, CLUTCH (S)	1	Rp79.500
6-2	23111-89J10-000	ROD, CLUTCH (L)	1	Rp170.500
7	23211-89J00-000	LEVER, CLUTCH CONTROL	1	Rp104.000
8	23213-89J00-000	SPRING, NOTCH PLATE	1	-
9	23214-89J00-000	SPRING, NOTCH PLATE	1	Rp21.500
10	67467-89J01-000	CONNECTOR, CLUTCH LEVER LINK	2	Rp65.500
11	DISCONTINUE SUB: 67471-99E00-000	NUT, CLUTCH LEVER LINK	2	-
12	67473-89J00-000	PIN, CONNECTOR	3	Rp66.500
13	09160-06055-000	WASHER (7X12X1.0)	2	Rp13.000
14	09383-04002-000	E RING	1	Rp6.500
15	09385-06012-000	CLIP	2	Rp12.000
16	01550-06127-000	BOLT	1	Rp17.000
17-1	02142-0616A-000 SUB: 02142B06167N000	SCREW	2	Rp3.000
17-2	01550-06207-000 SUB: 01550B06207N000	BOLT	2	Rp3.000	MODEL:07

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
